XBTGT5330

2-year Warranty

Same Day Shipping

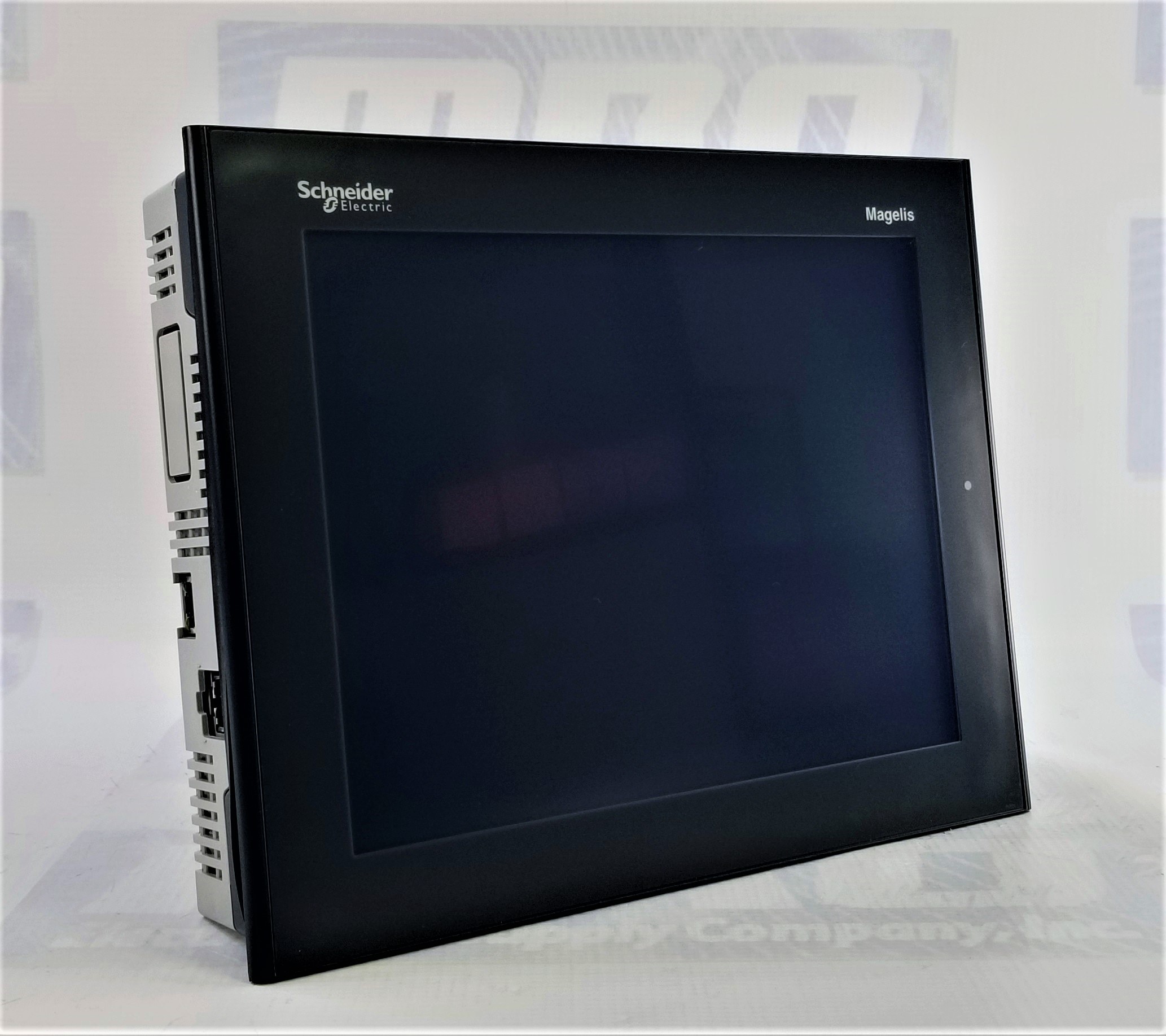

Schneider Electric XBTGT5330

MODICON MAGELIS 640 X 480 PIXELS VGA - 10.4 - TFT LCD - 24 V DC
5/5
3 ratings

Select Condition

Refurbished

3 in stock

$1,997.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberXBTGT5330
ManufacturerSchneider Electric
TypeHMIs
Warranty2 Year
Product weight1.8 kg
Range of productMagelis XBTGT
Product or component typeAdvanced touchscreen panel
Display typeBacklit colour TFT LCD
Display colour65536 colours
Display resolution640 x 480 pixels VGA
Display size10.4 inch
Software typeConfiguration software
Software designationVijeo Designer
Operating systemMagelis
Processor nameCPU RISC
Processor frequency266 MHz
Memory descriptionBack up of data SRAM 512 kB lithium battery
Integrated connection typeCOM2 serial link RJ45 RS485 <= 187.5 kbit/s Siemens MPI (187.5 kbits/s)
Resistance to electrostatic discharge6 kV IEC 61000-4-2 level 3
Cut-out dimensions259 (+ 1/- 0) x 201 (+ 1/- 0) mm
Touch sensitive zone1024 x 1024
Touch panelAnalogue
Brightness8 levels via touch panel
Contrast8 levels via touch panel
Character fontASCII (European characters)
Chinese (simplified Chinese)
Japanese (ANK, Kanji)
Korean
Taiwanese (traditional Chinese)
[Us] rated supply voltage24 V DC
SupplyExternal source
Supply voltage limits19.2...28.8 V
Inrush current<= 30 A
Power consumption30 W
Local signalling1 LED (green or orange) for normal operation or backlighting faulty
Number of pagesLimited by internal memory capacity
Downloadable protocolsModbus Telemecanique Modicon
Third party protocols Omron Sysmac
Uni-TE Telemecanique Modicon
Third party protocols Rockwell Automation Allen-Bradley
FIPWAY Telemecanique Modicon
Modbus Plus Telemecanique Modicon
Modbus TCP Telemecanique Modicon
Third party protocols Mitsubishi Melsec
Third party protocols Siemens Simatic
Realtime clockBuilt-in
Memory type1 slot for Compact Flash card (128 MB to 1 GB)
Use of slotFor 1 fieldbus communication card (Device Net, Profibus DP)
Port Ethernet10BASE-T/100BASE-TX
Product mountingFlush mounting
Fixing modeBy 4 screw clamps
By 4 spring clips
Enclosure materialPPT
MarkingCE
Width270.5 mm
Height212.5 mm
Depth57 mm

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed XBTGT5330 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this XBTGT5330 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty XBTGT5330, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 6lbs

Want it shipped today?

  • Order within the next 4 hours and 20 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty XBTGT5330 for credit when ordering from MRO Electric

Why is the status LED on my XBT-G Magelis unit orange?

  • The status LED on the XBTGT5330 Magelis units will illuminate orange to indicate the backlight has burned out. The unit will need to have its backlight replaced.

What is the replacement for the Magelis XBTGT5330 HMI?

  • The Magelis XBTGT5330 HMI can be replaced by either the HMIGTO5310 or (HMIDT542 + HMIG3U). Here are details for the substitution replacements:

What is the cable needed to connect the M340 to the XBTGT5330 terminals?

  • The cable combination that is needed is the XBTZ938 + XBTZG909. It will connect the M340 and the HMI.

What Magelis HMIs did the XBTGT5330 replace?

  • XBTG5330, XBTF034510, XBTF034110

Can I enable Vijeo Designer Web Gate from the Magelis XBTGT5330 screen?

  • No, you can not enable Web Gate from the Magelis screens. Web Gate has to be enabled and setup from the Vijeo Designer development software.

Can the Magelis XBTGT5330 access the timer preset value (Time data type) in the Modicon PLC directly?

  • No, you can not access the Time Data type directly from the Magelis. In Unity Pro, you need to use a conversion block to convert between the Time and Integer or DINT data type.

Why don’t my new passwords work in my XBTGT5330?

  • After a change is made to any security data (passwords or user names and groups) all runtime data must be deleted before the security change will take effect. During the download of the updated application, a window pops up and the “Delete all runtime data” check box must be selected.
MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric XBTGT5330 Overview

Schneider Electric XBTGT5330

The Magelis XBTGT Advanced Touchscreen panel module, manufactured by Schneider Electric, is a part of the handheld series of HMI products. The XBTGT5330 panel has a backlit color LCD that lasts 540,000 hours and Thin Film Transistors screen technology. It has a 10.4-inch display that is 640 by 480 pixels VGA. It has a Magelis operating system and uses Vijeo Designer software. The XBTGT5330 also has a CPU RISC processor with a frequency of 266 MHz. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as Modicon and ABB.

XBTGT5330 Features

The XBTGT5330 has 512 kB of backup SRAM data and an application memory of 32 MB. The panel has a number of integrated connection types, shown below:

  • Power supply with removable screw terminal block
  • Digital input with a removable screw terminal block
  • COM2 serial link RJ45 RS485
  • Siemens MPI (187.5 kbits/s)
  • COM1 serial link Male SUB-D 9 RS232C/RS422/RS485
  • Audio output with a removable screw terminal block
  • 3 digital outputs with removable screw terminal block
  • 2 USB type A master ports
  • Backlight lifespan: 540,000 hours

Advantages

The entire XBTGT5330 panel is touch-sensitive. Additionally, there are 8 levels of brightness and contrast on the touch panel. It uses a 24V DC power supply, which should be kept between 19.2 and 28.8 volts. The inrush current should be kept to less than 30 amps, and the XBTGT5330 panel’s power consumption is less than 50 watts. The allowable voltage drop is <10ms.

The XBTGT5330’s dimensions are approximately 270.5 x 212.5 x 212.5 mm. The product itself weighs 2.5 kg. The minimum number of fasteners to install the panel is 4, with a maximum of 10. For the XBTGT5330 panel, it is strongly recommended that an installation gasket is used since it absorbs vibration and also repels water.

FAQ (Frequently Asked Questions)

1. Where is the Magelis XBTGT Advanced Touchscreen panel manufactured?

The Magelis XBTGT Advanced Touchscreen panel is manufactured in France by Schneider Electric.

2. What is the warranty period for the XBTGT5330 panel?

The XBTGT5330 panel comes with a 2-year warranty from MRO Electric.

3. What are the primary applications for the XBTGT5330 panel?

These panels are designed for usage in material handling, packaging, and textile machines.

4. What software is used to operate the XBTGT5330 panel?

The XBTGT5330 panel uses Vijeo Designer software for operation.

5. What is the backup SRAM data and application memory capacity of the XBTGT5330?

The XBTGT5330 has 512 kB of backup SRAM data and an application memory of 32 MB.

6. What are the integrated connection types available on the XBTGT5330 panel?

The panel features various integrated connection types, including power supply, digital input, COM1 and COM2 serial links, Siemens MPI, audio output, digital outputs, and USB ports.

7. What is the power supply requirement for the XBTGT5330 panel?

The panel operates on a 24V DC power supply, which should be maintained between 19.2 and 28.8 volts.

8. What is the lifespan of the backlight on the XBTGT5330 panel?

The backlight on the XBTGT5330 panel has a lifespan of 540,000 hours.

9. What are the dimensions and weight of the XBTGT5330 panel?

The dimensions of the XBTGT5330 panel are approximately 270.5 x 212.5 x 212.5 mm, and it weighs 2.5 kg.

10. How many fasteners are required to install the XBTGT5330 panel?

A minimum of 4 and a maximum of 10 fasteners are recommended for installing the XBTGT5330 panel.

11. Why is it recommended to use an installation gasket for the XBTGT5330 panel?

It is strongly recommended to use an installation gasket with the XBTGT5330 panel as it absorbs vibration and repels water, enhancing the panel's durability and performance.

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like XBTGT5330, take a look at more from our HMIs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our XBTGT5330 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
