Available
Free Shipping
2 Year warranty

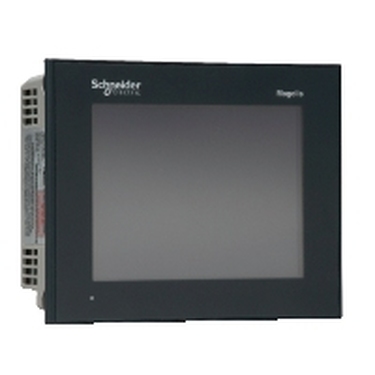

Part Number | XBTGT2430 |
Manufacturer | Schneider Electric |
Type | HMIs |
Warranty | 2 Year |
Product weight | 1 kg |
Range of product | Magelis XBTGT |
Product or component type | Advanced touchscreen panel |
Display type | Backlit colour TFT LCD |
Display colour | 65536 colours |
Display resolution | 640 x 480 pixels VGA |
Display size | 5.7 inch |
Software type | Configuration software |
Software designation | Vijeo Designer |
Operating system | Magelis |
Processor name | CPU RISC |
Processor frequency | 266 MHz |
Memory description | Back up of data SRAM 512 kB lithium battery |
Integrated connection type | COM2 serial link RJ45 RS485 <= 187.5 kbit/s Siemens MPI (187.5 kbits/s) |
Resistance to electrostatic discharge | 6 kV IEC 61000-4-2 level 3 |
Cut-out dimensions | 156 (+ 1/- 0) x 123.5 (+ 1/- 0) mm |
Touch sensitive zone | 1024 x 1024 |
Touch panel | Analogue |
Brightness | 8 levels via touch panel |
Character font | Korean |
Chinese (simplified Chinese) | |
Japanese (ANK, Kanji) | |
ASCII (European characters) | |
Taiwanese (traditional Chinese) | |
[Us] rated supply voltage | 24 V DC |
Supply | External source |
Supply voltage limits | 19.2...28.8 V |
Inrush current | <= 30 A |
Power consumption | 26 W |
Local signalling | 1 LED (green or orange) for normal operation or backlighting faulty |
Number of pages | Limited by internal memory capacity |
Downloadable protocols | FIPWAY Telemecanique Modicon |
Modbus Plus Telemecanique Modicon | |
Modbus TCP Telemecanique Modicon |
Modbus Telemecanique Modicon | |
Third party protocols Mitsubishi Melsec | |
Third party protocols Omron Sysmac | |
Third party protocols Rockwell Automation Allen-Bradley | |
Third party protocols Siemens Simatic | |
Uni-TE Telemecanique Modicon | |
Realtime clock | Built-in |
Memory type | 1 slot for Compact Flash card (128 MB to 1 GB) |
Use of slot | For 1 fieldbus communication card (Device Net, Profibus DP) |
Port Ethernet | 10BASE-T/100BASE-TX |
Product mounting | Flush mounting |
Fixing mode | By 4 screw clamps |
By 2 spring clips | |
Enclosure material | PPT |
Marking | CE |
Width | 167.5 mm |
Height | 135 mm |
Depth | 59.5 mm |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed XBTGT2430 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this XBTGT2430 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty XBTGT2430, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty XBTGT2430 for credit when ordering from MRO Electric
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like XBTGT2430, take a look at more from our HMIs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our XBTGT2430 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
