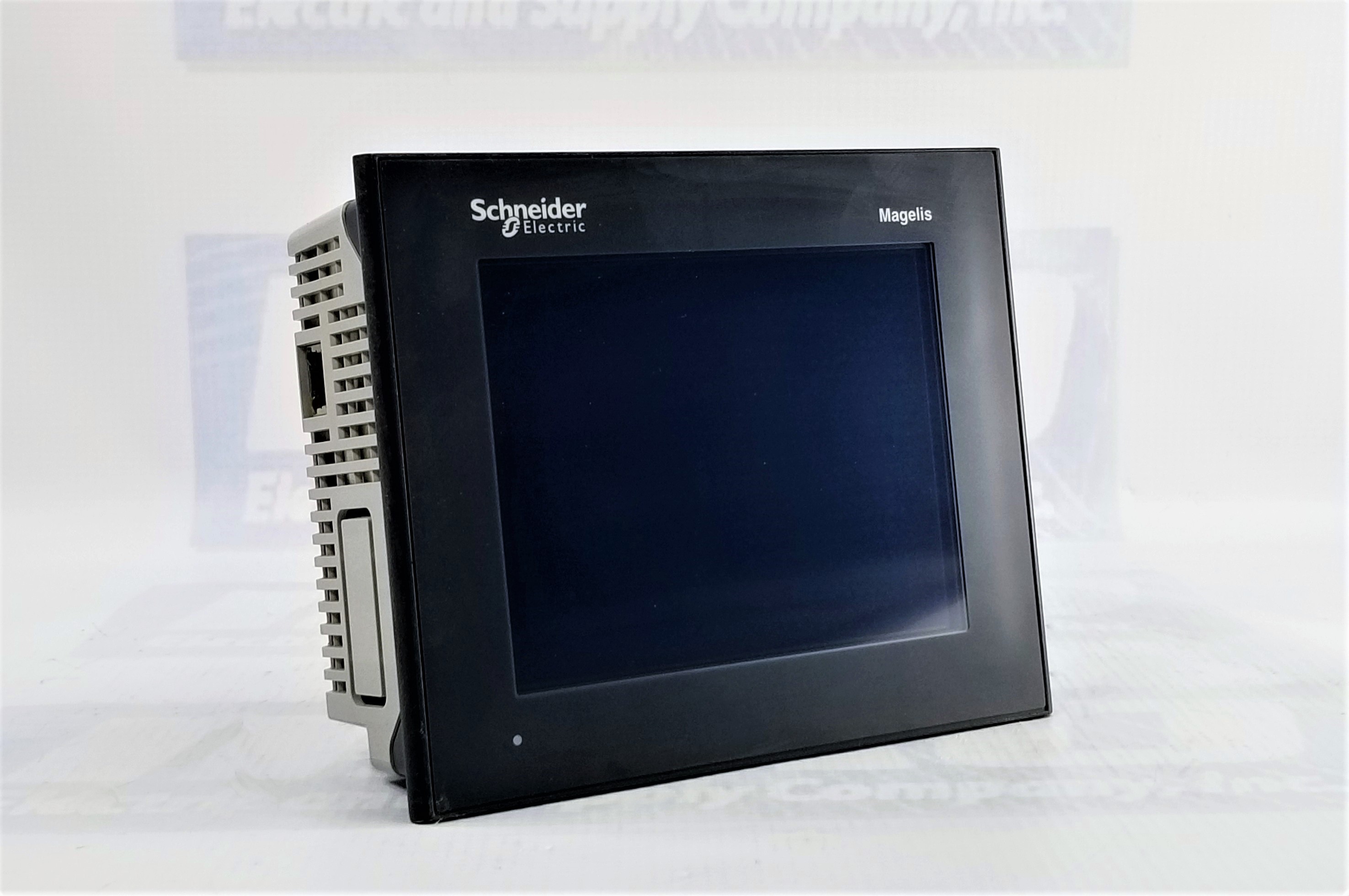

MODICON MAGELIS ADVANCED TOUCHSCREEN PANEL - 320 X 240 PIXELS QVGA - 5.7 - 24 V
| Part Number | XBTGT2130 |
| Manufacturer | Schneider Electric |
| Type | HMIs |
| Warranty | 2 Year |
| Product weight | 1 kg |
| Range of product | Magelis XBTGT |
| Product or component type | Advanced touchscreen panel |
| Display type | Backlit monochrome STN LCD |
| Display colour | 16 levels of grey |
| Black and white | |
| Display resolution | 320 x 240 pixels QVGA |
| Display size | 5.7 inch |
| Software type | Configuration software |
| Software designation | Vijeo Designer |
| Operating system | Magelis |
| Processor name | CPU RISC |
| Processor frequency | 133 MHz |
| Memory description | Back up of data SRAM 512 kB lithium battery |
| Integrated connection type | COM1 serial link male SUB-D 9 RS232C/RS422/RS485 <= 115.2 kbits/s |
| Resistance to electrostatic discharge | 6 kV IEC 61000-4-2 level 3 |
| Cut-out dimensions | 156 (+ 1/- 0) x 123.5 (+ 1/- 0) mm |
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Analogue |
| Brightness | 8 levels via touch panel |
| Contrast | 8 levels via touch panel |
| Character font | ASCII (European characters) |
| Chinese (simplified Chinese) | |
| Japanese (ANK, Kanji) | |
| Korean | |
| Taiwanese (traditional Chinese) | |
| [Us] rated supply voltage | 24 V DC |
| Supply | External source |
| Supply voltage limits | 19.2...28.8 V |
| Inrush current | <= 30 A |
| Power consumption | 26 W |
| Local signalling | 1 LED (green or orange) for normal operation or backlighting faulty |
| Number of pages | Limited by internal memory capacity |
| Downloadable protocols | Modbus Plus Telemecanique Modicon |
| Third party protocols Omron Sysmac |
| Third party protocols Siemens Simatic | |
| FIPWAY Telemecanique Modicon | |
| Modbus TCP/IP Telemecanique Modicon | |
| Uni-TE Telemecanique Modicon | |
| Modbus Telemecanique Modicon | |
| Third party protocols Rockwell Automation Allen-Bradley | |
| Third party protocols Mitsubishi Melsec | |
| Realtime clock | Built-in |
| Memory type | 1 slot for Compact Flash card (128 MB to 1 GB) |
| Use of slot | For 1 fieldbus communication card (Device Net, Profibus DP) |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Product mounting | Flush mounting |
| Fixing mode | By 2 spring clips |
| By 4 screw clamps | |
| Enclosure material | PPT |
| Marking | CE |
| Width | 167.5 mm |
| Height | 135 mm |
| Depth | 59.5 mm |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed XBTGT2130 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this XBTGT2130 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty XBTGT2130, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty XBTGT2130 for credit when ordering from MRO Electric
Schneider Electric presents the XBTGT2130, a state-of-the-art touchscreen panel that enhances human-machine interaction in industrial environments. As part of the Modicon Magelis series, this panel offers advanced features and robust performance, making it a versatile solution for various automation applications.
The XBTGT2130 boasts a high-resolution display with 320 x 240 pixels, providing crisp, clear visuals for effective monitoring and control. With its QVGA (Quarter VGA) resolution, operators can easily visualize critical data and make informed decisions to optimize processes.
Despite its compact size, the XBTGT2130 delivers powerful performance. It offers a 5.7-inch touchscreen interface that maximizes usability without sacrificing functionality. Its compact form makes it suitable for space-constrained installations while providing ample screen real estate for intuitive operation.
Featuring a wide operating voltage range of 24 V, the XBTGT2130 ensures compatibility with various power systems commonly found in industrial environments. This flexibility allows seamless integration into existing infrastructure, simplifying installation and reducing setup time.
Equipped with an advanced touchscreen interface, the XBTGT2130 facilitates intuitive human-machine interaction, allowing operators to navigate menus, input commands, and visualize data with ease. Its responsive touchscreen enables precise control, enhancing productivity and efficiency in industrial processes.
Built to withstand harsh industrial conditions, the XBTGT2130 features a rugged and reliable design that ensures long-term durability and performance. It can withstand vibration, shock, and temperature variations with robust construction and quality materials, providing reliable operation in demanding environments.
The XBTGT2130 offers seamless connectivity options, allowing easy integration with PLCs, SCADA systems, and other industrial automation devices. It supports industry-standard protocols, facilitating seamless data exchange and communication and enabling comprehensive control and monitoring capabilities.
Designed for versatility, the XBTGT2130 supports various applications across various industries, including manufacturing, energy, transportation, and more. Whether used for machine control, process visualization, or system monitoring, it provides the flexibility and scalability to adapt to diverse automation needs.
Configuring the XBTGT2130 is streamlined with user-friendly software tools and intuitive setup wizards. Operators can easily customize screen layouts, define control parameters, and configure alarms to suit specific application requirements, enhancing operational efficiency and flexibility.
What is the Schneider Electric XBTGT2130 Magelis Advanced Touchscreen Panel?
The Schneider Electric XBTGT2130 is an advanced touchscreen panel designed for human-machine interaction in industrial environments. It is part of the Modicon Magelis series and offers a high-resolution display, compact design, and versatile functionality for various automation applications.
What are the key features of the Schneider Electric XBTGT2130 Touchscreen Panel?
The XBTGT2130 features a high-resolution display with 320 x 240 pixels, a compact 5.7-inch touchscreen interface, and a wide operating voltage range of 24 V. It offers seamless connectivity, rugged construction, and user-friendly configuration tools for enhanced usability and reliability.
What industries can benefit from the Schneider Electric XBTGT2130 Touchscreen Panel?
The XBTGT2130 suits various industries, including manufacturing, energy, transportation, etc. It can be used for machine control, process visualization, system monitoring, and other automation tasks, providing flexibility and scalability for diverse applications.
How does the Schneider Electric XBTGT2130 enhance human-machine interaction?
The XBTGT2130 features an advanced touchscreen interface that enables intuitive navigation, input, and data visualization. Its responsive touchscreen allows for precise control, enhancing productivity and efficiency in industrial processes.
Is the Schneider Electric XBTGT2130 easy to install and configure?
Yes, the XBTGT2130 is designed for easy installation and configuration. It has user-friendly software tools and setup wizards that streamline the configuration process, allowing operators to customize screen layouts, define control parameters, and configure alarms according to specific application requirements.
What makes the Schneider Electric XBTGT2130 a reliable choice for industrial environments?
The XBTGT2130 features a rugged and reliable design that can withstand harsh industrial conditions, including vibration, shock, and temperature variations. Its robust construction and quality materials ensure long-term durability and performance, making it a reliable choice for industrial automation applications.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like XBTGT2130, take a look at more from our HMIs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our XBTGT2130 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
