Schneider Electric XBTGK5330

Schneider Electric XBTGK5330 HMI

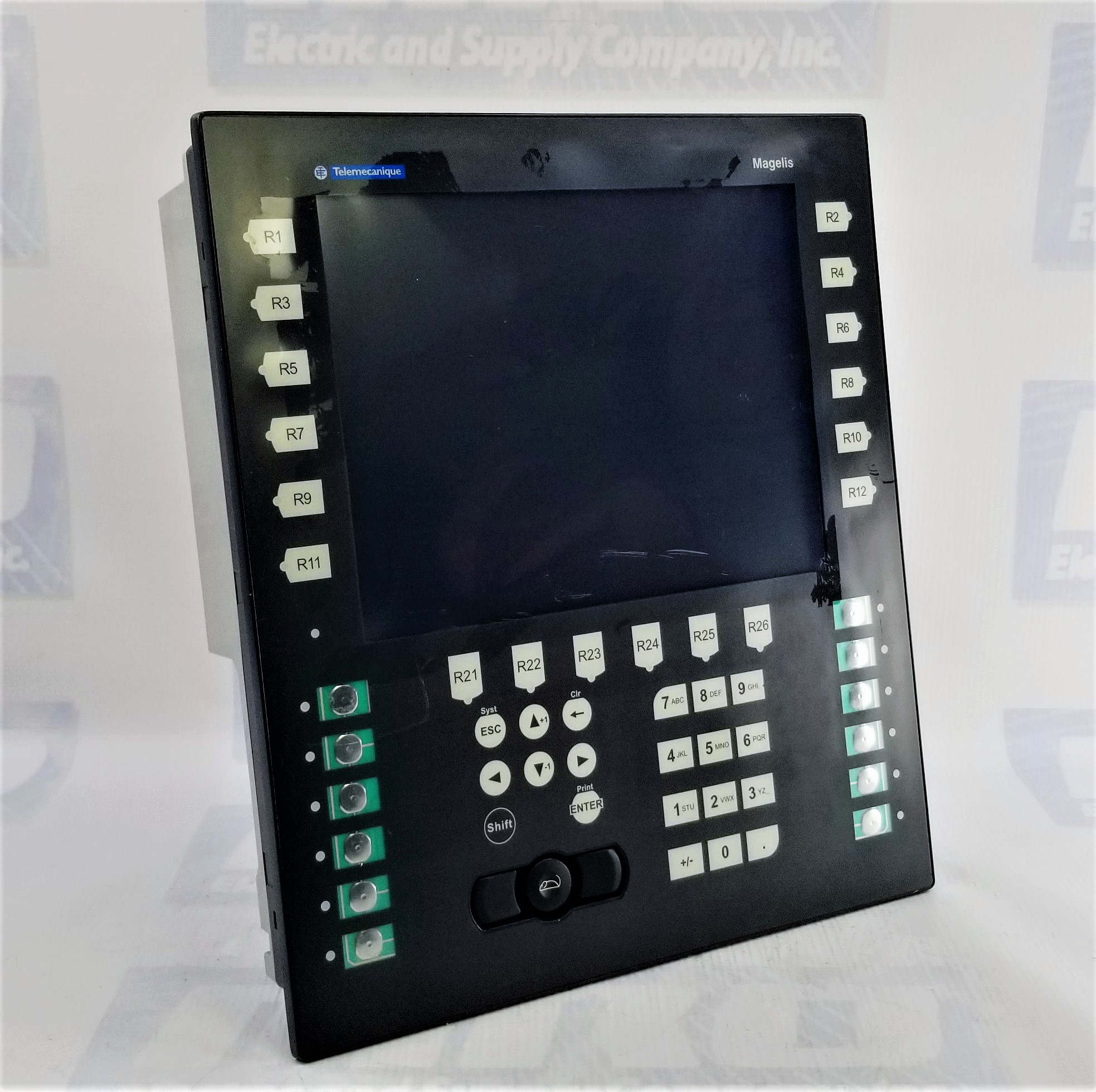

The Schneider Electric XBTGK5330 is an advanced Human-Machine Interface (HMI) from the Magelis XBTGK range, designed to meet the diverse needs of industrial automation systems. Combining a 10.4-inch touchscreen panel with a built-in keyboard, this HMI delivers an intuitive and highly functional user experience. Its robust design, wide-ranging compatibility, and advanced features make it ideal for controlling and monitoring complex industrial processes.

Display and Touchscreen Features

The XBTGK5330 features a vibrant 10.4-inch backlit color TFT LCD that supports 65,536 colors, ensuring crisp and clear visuals. With a resolution of 640 x 480 pixels (VGA), operators can easily monitor and manage intricate system data. The touchscreen panel offers a touch-sensitive zone of 1024 x 1024 and utilizes an analog touch interface, allowing for precise interaction. Users can adjust the display's brightness and contrast through the touch panel, with eight levels of customization for both.

The backlight has an impressive lifespan of 50,000 hours, ensuring long-term reliability in demanding environments. The interface supports multiple character fonts, including ASCII (European), Simplified Chinese, Japanese (ANK, Kanji), Korean, and traditional Chinese, making it suitable for global operations.

Processing and Memory

Powered by a 266 MHz RISC CPU, the XBTGK5330 delivers reliable performance for industrial applications. It comes equipped with 512 kB of SRAM for data backup, supported by a lithium battery to ensure data integrity in case of power loss. The unit runs on the Magelis operating system and uses Vijeo Designer configuration software, offering a user-friendly programming experience.

Connectivity and Protocols

The HMI supports many communication protocols, including Modbus, Modbus Plus, Modbus TCP, Uni-TE, and third-party protocols like Mitsubishi Melsec, Omron Sysmac, Rockwell Automation Allen-Bradley, and Siemens Simatic. This ensures seamless integration with various industrial control systems. It also includes Ethernet connectivity (10BASE-T/100BASE-TX) for efficient data exchange and real-time monitoring.

For added functionality, the XBTGK5330 supports one Fieldbus communication card slot (DeviceNet, Profibus DP). The built-in real-time clock enhances scheduling and time-sensitive operations.

Durability and Mounting

Constructed with durable materials, including an aluminum alloy front and PPT enclosure, the XBTGK5330 is built to withstand industrial environments. It is resistant to electrostatic discharge (4 kV conforming to IEC 61000-4-2 level 3), ensuring reliable performance in harsh conditions. The unit is designed for flush mounting, with fixing options that include spring clips and screw clamps for secure installation.

Power and Safety Features

The XBTGK5330 operates on a 24 V DC external power source, with voltage limits ranging from 19.2 to 28.8 V. It has a maximum power consumption of 30 W and an inrush current of ≤30 A. The unit includes safety features such as local signaling via an LED indicator that shows normal operation or backlighting faults.

Frequently Asked Questions (FAQs)

What is the display resolution of the XBTGK5330?

The display resolution is 640 x 480 pixels (VGA).

What is the lifespan of the backlight?

The backlight has a lifespan of 50,000 hours.

What communication protocols are supported?

It supports protocols like Modbus, Modbus TCP, Uni-TE, and third-party protocols (e.g., Mitsubishi Melsec, Siemens Simatic).

What is the rated supply voltage?

The unit operates on 24 V DC.

What software is used for configuration?

The HMI uses Vijeo Designer configuration software.

What materials are used in the construction?

The front material is aluminum alloy, and the enclosure is made of PPT.

How is the unit mounted?

It is designed for flush mounting, secured with spring clips or screw clamps.

Does it have a built-in real-time clock?

Yes, it includes a built-in real-time clock for time-sensitive operations.

How many function keys does the XBTGK5330 have?

It has 18 dynamic function keys with LEDs, 12 static function keys with LEDs, and 8 SERVICE keys.

What is the unit's protection rating?

The XBTGK5330 has an IP20 protection rating, suitable for indoor environments.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as Modicon and ABB.
