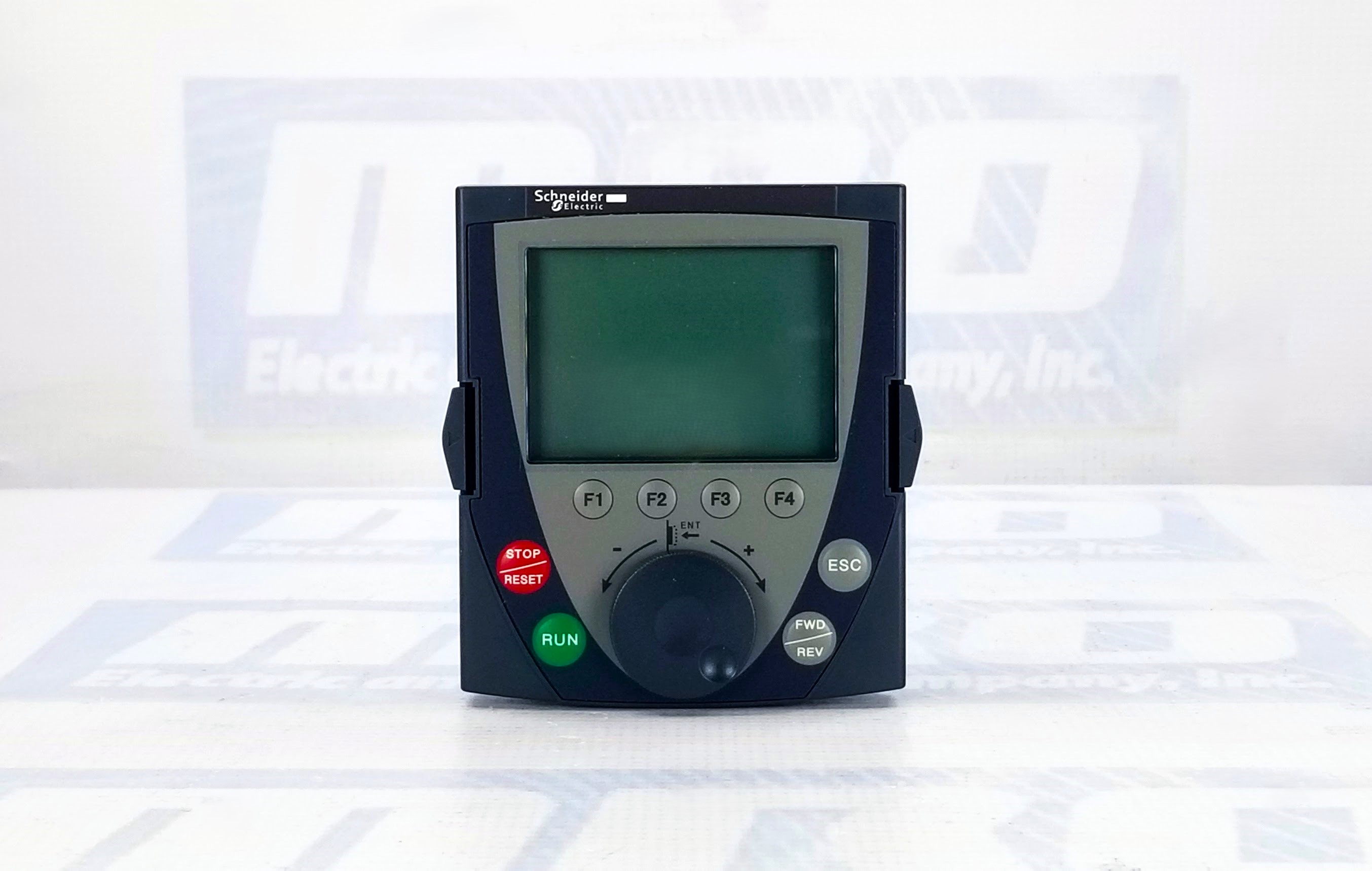

REMOTE GRAPHIC DISPLAY TERMINAL
| Part Number | VW3A1101 |
| Manufacturer | Schneider Electric |
| Type | Keypad Units |
| Warranty | 2 Year |
| Range | ATV71 |
| Category | Terminal |
| Description | Graphic Display module |
| Design | Remote |
| Destination | Variable speed drive |
| Resolution | 240x160 Pixels |
| Temp range | -15 TO +50° C |
| Protection | IP54 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed VW3A1101 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this VW3A1101 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty VW3A1101, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty VW3A1101 for credit when ordering from MRO Electric
The Schneider Electric VW3A1101 is a remote graphic display terminal designed for use with ATV71 variable speed drives. This keypad unit provides a user-friendly interface, allowing operators to remotely monitor, control, and adjust drive parameters. With its high-resolution 240 x 160-pixel display, users can easily read system data, error messages, and performance indicators in real time. The 8-line display ensures that essential information is presented clearly, enhancing ease of use and efficiency in industrial environments.
One key benefit of the VW3A1101 is its ability to provide remote access to ATV71 variable-speed drives. This allows operators to make adjustments without needing direct access to the drive itself. This remote functionality is particularly useful in installations where the drive is located in a hard-to-reach or hazardous area. The graphic display module enables technicians to quickly diagnose issues, modify parameters, and optimize system performance with minimal downtime.
The VW3A1101 is built to withstand demanding industrial conditions. With an IP54 protection rating, it is resistant to dust and water splashes, making it suitable for use in various environments, including manufacturing facilities and processing plants. The device operates within a temperature range of -15°C to +50°C, ensuring reliable performance even in extreme conditions. This durability makes the VW3A1101 an excellent choice for industries that require consistent and stable drive monitoring.
The VW3A1101's 240 x 160-pixel resolution provides a sharp and clear display of information. The 8-line screen allows efficient navigation through menus and settings, ensuring users can quickly access the needed data. This high level of visibility improves workflow efficiency by reducing the time required to interpret and act on displayed information. The graphic display makes operations more intuitive and streamlined, whether adjusting motor speeds, checking system diagnostics, or troubleshooting errors.
The VW3A1101 is explicitly designed for ATV71 series variable speed drives, ensuring a seamless integration process. This compatibility allows operators to fully utilize the drive's advanced features while benefiting from the keypad's remote control capabilities. By allowing users to manage settings and monitor performance from a convenient location, the VW3A1101 enhances productivity and reduces operational inefficiencies.
The VW3A1101 is immediately available through MRO Electric and Supply, ensuring businesses can acquire this essential component without delay. With free shipping, customers can receive their product quickly and at no extra cost. Additionally, the keypad is backed by a two-year warranty, providing peace of mind and assurance of its quality and durability. This warranty ensures that the product meets high-performance standards and provides long-lasting service in industrial applications.
The Schneider Electric VW3A1101 remote graphic display terminal is essential for operators managing ATV71 variable speed drives. Its high-resolution display, durable design, and remote functionality enhance operational efficiency, accessibility, and control. Whether used in harsh environments or standard industrial settings, this keypad unit provides a reliable and user-friendly interface for monitoring and adjusting drive parameters. Available immediately with free shipping and a two-year warranty, the VW3A1101 is a cost-effective and valuable addition to any drive control system.
What is the VW3A1101 used for?
The VW3A1101 is a remote graphic display terminal designed for monitoring and controlling ATV71 variable speed drives.
Can the VW3A1101 be used with other drive models?
The VW3A1101 is designed explicitly for Schneider Electric ATV71 variable speed drives and may not be compatible with other models.
How is the VW3A1101 connected to the ATV71 drive?
The VW3A1101 is connected via a dedicated communication port on the ATV71 drive, allowing real-time data exchange and control.
What type of display does the VW3A1101 have?
The VW3A1101 features a 240 x 160-pixel graphic display with eight lines of information, ensuring clear and detailed visibility of system parameters.
What is the temperature range for the VW3A1101?
The VW3A1101 operates within a temperature range of -15°C to +50°C, making it suitable for various industrial environments.
Is the VW3A1101 resistant to dust and moisture?
Yes, with an IP54 protection rating, the VW3A1101 is resistant to dust and water splashes, making it durable in challenging work conditions.
Does the VW3A1101 require additional software to operate?
The VW3A1101 is a plug-and-play device that directly integrates with ATV71 variable speed drives without requiring additional software.
Can the VW3A1101 be mounted remotely?
Yes, the VW3A1101 is designed for remote mounting, allowing operators to access and control the drive from a distance.
How quickly can I receive the VW3A1101 if I order today?
The VW3A1101 is immediately available with free shipping, ensuring a fast delivery time.
What warranty does the VW3A1101 come with?
The VW3A1101 includes a two-year MRO Electric and Supply warranty, guaranteeing quality and performance.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Keypad Units from other manufacturers such as Modicon and ABB.
