UNIDRIVE AC DRIVE 150HP 90KW 3PHASE
1 Available
2 Year warranty
| Part Number | UNI4404 |
| Manufacturer | Control Techniques |
| Type | AC Drives |
| Warranty | 2 Year |
| Operating Modes | Open Loop |
| Closed Loop vector | |
| Servo | |
| Regen |
| Nominal Rating - kW | 90 |
| Nominal Rating - hp | 150 |
| Max. Continuous Output Current at 40°C ambient (A) | |
| 3kHz | 180 |
| 4.5kHz | 175 |
| 6kHz | 145 |
| 9kHz | 110 |
| Max. Continuous Output Current at 50°C ambient (A) | |
| 3kHz | 180 |
| 4.5kHz | 150 |
| 6kHz | 125 |
| 9kHz | 95 |
| Typical Input Current (A) | 5 |
| Max. Continous Output Current (A) | 120 |
| Minimum Resistance (Ω) | 145 |
| Instantaneous Powe Rating (kW) | 205 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed UNI4404 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this UNI4404 we also repair a wide range of other Control Techniques products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty UNI4404, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty UNI4404 for credit when ordering from MRO Electric

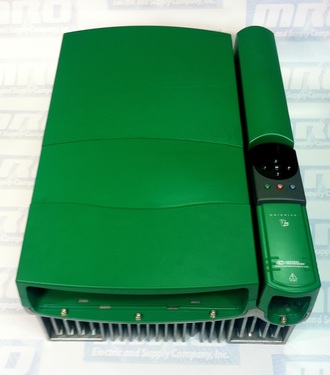

The Control Techniques UNI4404 is a versatile AC drive that delivers precise motor control across various industrial applications. With its advanced features and robust construction, this drive offers reliable performance and flexibility for different operating modes.
The UNI4404 drive supports multiple operating modes, including Open Loop, Closed Loop vector, Servo, and Regen. This versatility allows for adaptable motor control strategies to meet the specific needs of different applications.
With a nominal rating of 90 kW (or 150 horsepower), the UNI4404 drive provides ample power for demanding industrial tasks. It offers maximum continuous output currents ranging from 110 to 180 amps at ambient temperatures of 40°C and 50°C, ensuring reliable operation in various environmental conditions.
The UNI4404 drive features advanced current control capabilities, with maximum continuous output currents ranging from 95 to 175 amps at different switching frequencies (3kHz, 4.5kHz, 6kHz, and 9kHz). This allows for precise motor control and efficient power management.
The drive's typical input current is rated at five amps, ensuring efficient energy consumption during operation. Additionally, it has a minimum resistance of 145 ohms, enabling smooth and stable motor performance under varying load conditions.
With an instantaneous power rating of 205 kW, the UNI4404 drive can easily handle sudden peak loads and transient conditions. This ensures reliable operation and protects connected equipment from potential damage due to power surges.
Built to withstand harsh industrial environments, the UNI4404 drive features a rugged construction that ensures durability and longevity. Its robust design protects against dust, moisture, and other contaminants, making it suitable for various industrial applications.
The UNI4404 drive has a user-friendly interface that simplifies setup, configuration, and monitoring tasks. Intuitive controls and clear display panels allow operators to quickly access and adjust drive parameters as needed, enhancing operational efficiency and productivity.
The UNI4404 drive incorporates comprehensive protection features to ensure the safety and reliability of connected equipment. These features include overcurrent protection, overvoltage protection, undervoltage protection, and short-circuit protection, minimizing the risk of damage and downtime.
Q: What are the Control Techniques for the UNI4404 AC drive? A: The Control Techniques UNI4404 AC drive is a versatile motor control solution designed to regulate the speed and torque of AC motors in industrial applications.
Q: What operating modes does the UNI4404 drive support? A: The UNI4404 drive supports multiple operating modes, including Open Loop, Closed Loop vector, Servo, and Regen, providing flexibility for different motor control strategies.
Q: What are the key specifications of the UNI4404 drive? A: The UNI4404 drive has a nominal rating of 90 kW (150 horsepower), with maximum continuous output currents ranging from 110 to 180 amps at ambient temperatures of 40°C and 50°C. It also features advanced current control capabilities and an instantaneous power rating of 205 kW.
Q: What protection features does the UNI4404 drive offer? A: The UNI4404 drive incorporates comprehensive protection features, including overcurrent protection, overvoltage protection, under voltage protection, and short-circuit protection, ensuring the safety and reliability of connected equipment.
Q: What are the typical applications of the UNI4404 drive? A: The UNI4404 drive is suitable for various industrial applications, including pumps, fans, conveyors, and other motor-driven systems where precise speed and torque control are required.
Control Techniques products are manufactured in United Kingdom and are designed for Metal production, paper processing, and material conveying usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Siemens and Yaskawa.
Check out the rest of our Control Techniques product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like UNI4404, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our UNI4404 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
