Control Techniques UNI1405

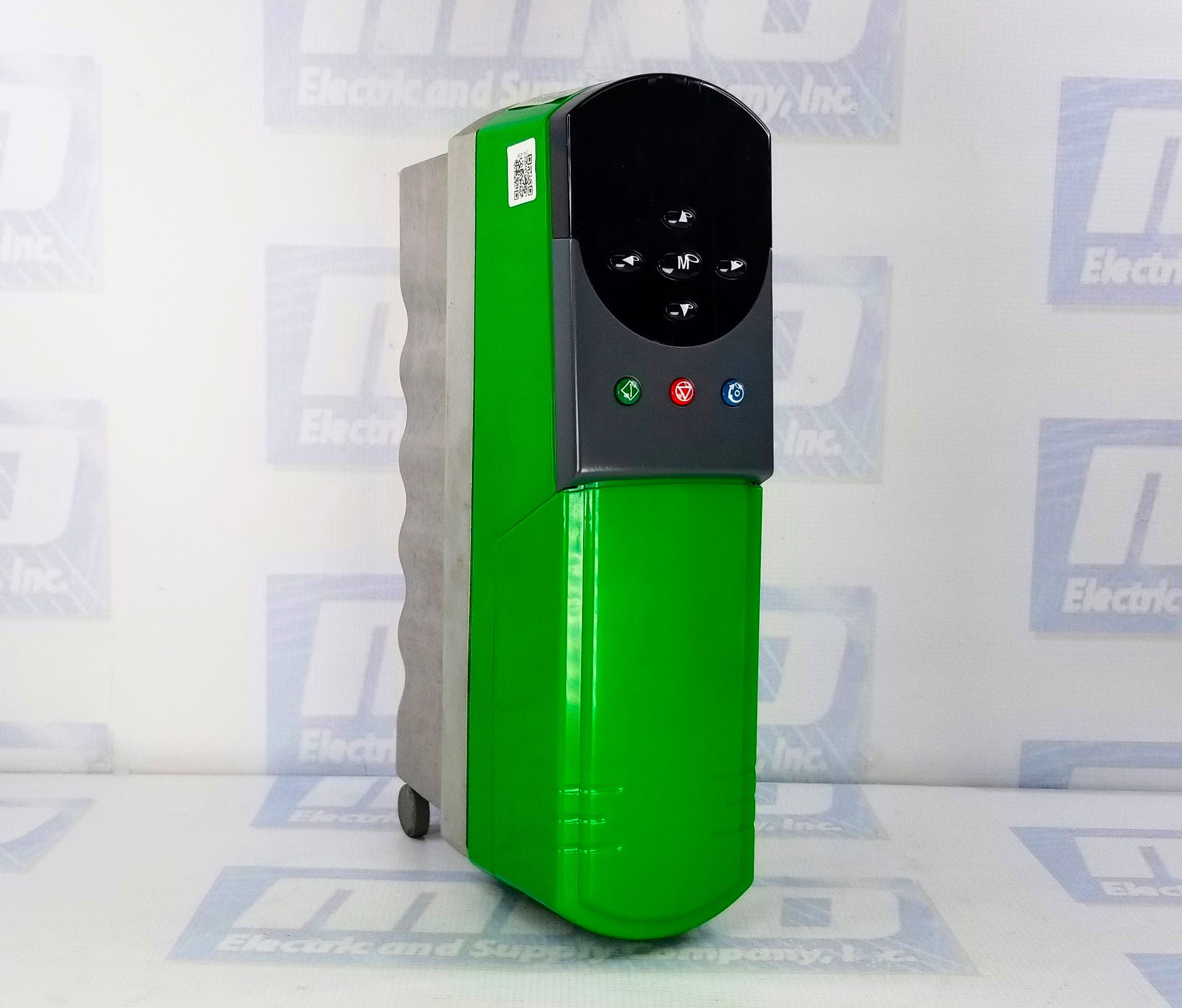

Control Techniques UNI1405 AC Drive

The Control Techniques UNI1405 AC Drive is a high-performance motor control solution for industrial applications requiring precision, efficiency, and flexibility. It can operate in multiple modes, including open loop, closed loop vector, servo, and regenerative (regen) modes, making it highly versatile and adaptable to various industrial needs. It is engineered for 4 kW (5 hp) nominal power and delivers robust motor control while maintaining energy efficiency.

Versatile Operating Modes for Precision Control

The UNI1405 AC Drive is built to support a range of operating modes, making it ideal for diverse industrial applications. Open-loop mode provides reliable speed control without needing feedback devices. In closed-loop vector mode, it offers enhanced torque and precision, making it suitable for high-performance applications. Servo mode allows for precise positioning, while regen mode enables the drive to recover energy and return it to the power supply, improving overall efficiency and reducing energy consumption.

Optimized Performance Across Different Frequencies

The UNI1405 delivers max continuous output currents optimized for various switching frequencies. At 40°C ambient temperature, it provides:

• 9.5A at 3 kHz and 4.5 kHz,
• 8.5A at 6 kHz,
• 7A at 9 kHz,
• 5.5A at 12 kHz.

At °C ambient temperature of 50 °C, the drive maintains reliable operation with slightly reduced output currents, ensuring stable performance in varying environmental conditions. With a maximum continuous output current of 12A, it meets the demands of most industrial applications.

Efficient Power Management and Energy Recovery

The UNI1405's instantaneous power rating of 15 kW enables it to handle sudden power surges, ensuring reliable motor performance under dynamic loads. With a minimum resistance of 40Ω, the drive offers excellent power efficiency and control. Additionally, including regenerative braking capabilities allows for energy savings, making it an eco-friendly solution for industrial automation.

Reliable and Durable Design with Warranty

Built for durability, the UNI1405 AC Drive is designed to operate in harsh industrial environments while maintaining peak efficiency. It comes with a 2-year MRO Electric and Supply warranty, ensuring long-term reliability and customer confidence. Additionally, free shipping is offered, making this drive an affordable and valuable investment for businesses.

Ideal Applications for the UNI1405 AC Drive

This AC drive is suitable for a wide range of applications, including:

• Industrial automation and manufacturing
• Pumps and fans requiring energy-efficient control
• Servo-driven machinery
• Material handling and conveyor systems
• Regenerative energy applications

With its advanced motor control capabilities, efficient power management, and durable design, the Control Techniques UNI1405 AC Drive is an excellent choice for businesses looking to enhance their automation and motion control processes.

Frequently Asked Questions (FAQ)

What power rating does the UNI1405 AC Drive have?

Its nominal power rating is 4 kW (5 hp), making it suitable for mid-range industrial applications.

What operating modes does this AC drive support?

The UNI1405 supports open loop, closed loop vector, servo, and regenerative (regen) modes, offering versatility for different applications.

What is the benefit of regenerative braking (regen mode)?

Regen mode allows the drive to recover energy and return it to the power supply, improving efficiency and reducing energy costs.

What is the maximum continuous output current?

The maximum continuous output current is 12A, ensuring reliable motor operation under various loads.

How does switching frequency affect the output current?

Higher switching frequencies reduce the maximum continuous output current. For example, at 12 kHz, the output current is 5.5A at 40°C ambient temperature.

Can this AC drive operate in high-temperature environments?

Yes, but at °C ambient temperature of 50 °C, the continuous output current is slightly lower, ensuring stable performance in different environments.

What is the instantaneous power rating?

The UNI1405 has an instantaneous power rating of 15 kW, allowing it to handle sudden power surges effectively.

Does the UNI1405 come with a warranty?

Yes, it includes a 2-year warranty from MRO Electric and Supply for peace of mind.

Is free shipping available?

Yes, free shipping is provided, making it an economical choice for businesses.

What industries benefit the most from this AC drive?

Industries such as manufacturing, automation, material handling, and energy-efficient systems benefit from the UNI1405's advanced motor control and regenerative capabilities.
