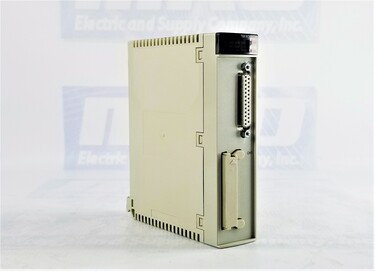

MODICON MICRO RS485+PCMCIA COMMUNICATION MODULE - 2 TWISTED SHIELDED PAIRS CABLE
| Part Number | TSXSCY21601 |
| Manufacturer | Schneider Electric |
| Type | CPUs |
| Model # | TSX-SCY-21601 |
| Warranty | 2 Year |
| Range of product | Modicon Premium Automation platform |
| Product or component type | Communication module |
| Software designation | Unity Pro |
| Structure type | Heterogeneous industrial bus |
| Product compatibility | Atrium |
| Premium | |
| Method of access | Master/Slave type |
| Integrated connection type | 1 serial link 1 SUB-D 25 |
| 1 slot for PCMCIA type III card | |
| Communication port protocol | Multiprotocol |
| Communication port support | RS485 isolated |
| Mode of transmission | Asynchronous in baseband |
| Transmission frame | RTU/ASCII |
| Transmission rate | 1.2...19.2 kbit/s |
| Transmission support medium | 2 twisted shielded pairs cable |
| Number of devices | 28 |
| Number of addresses | 0...97 |
| Bus length | 1300 m Modbus |
| Tap links length | 15 m |
| Requests | 120 words per request |
| 1920 bits per request | |
| Control parameter | One CRC 16 on each frame |
| Monitoring function | Diagnostic counters |
| Event counters | |
| Modbus funtions available | Event connection Modbus master 0C |
| Event connection Modbus slave 0C | |
| Event counter Modbus master 0B | |
| Event counter Modbus slave 0B | |
| Identification Modbus slave 11 | |
| Slave identification Modbus master 11 |
| Write n output bits Modbus slave 0F | |
| Write n output words Modbus slave 10 | |
| Diagnostic Modbus master 08 | |
| Diagnostic Modbus slave 08 | |
| Exceptional read status Modbus master 07 | |
| Exceptional read status Modbus slave 07 | |
| Read input words Modbus master 04 | |
| Read n input words Modbus slave 04 | |
| Write 1 bits or n bits Modbus master 05 | |
| Write 1 input word Modbus slave 06 | |
| Write 1 output bit Modbus slave 05 | |
| Write 1 word or n word Modbus master 06 | |
| Local signalling | 1 LED communication (CH0) |
| 1 LED internal fault, module failure (ERR) | |
| 1 LED module operating (RUN) | |
| Current consumption | 350 mA 5 V DC |
| Module format | Standard |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXSCY21601 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXSCY21601 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXSCY21601, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty TSXSCY21601 for credit when ordering from MRO Electric
The Schneider Electric TSXSCY21601 is a high-performance communication module designed for the Modicon Premium Automation platform. This module facilitates seamless communication between various automation components in industrial settings. Featuring multiprotocol support and compatibility with Atrium and Premium systems, it is an essential component for modern industrial applications requiring reliable data exchange. Engineered for flexibility, the TSXSCY21601 operates as an enslaver/agent-type device, ensuring efficient communication across networks. It supports asynchronous baseband transmission with a communication speed ranging from 1.2 to 19.2 kbit/s, making it a versatile solution for various automation needs.
Equipped with an integrated RS485 isolated communication port, the TSXSCY21601 ensures stable and secure data transmission across connected devices. It is designed to handle multiple Modbus functions, including event connections, event counters, diagnostic monitoring, and read/write operations. The module supports up to 28 connected devices with address ranges from 0 to 97, allowing for extensive industrial network configurations. Its communication protocol ensures effective data transfer while maintaining security and efficiency in large-scale automation systems.
The Schneider Electric TSXSCY21601 communication module features a standard format built to integrate seamlessly into existing industrial automation frameworks. It includes a 25-pin SUB-D serial link and a PCMCIA Type III card slot, providing additional connectivity options. The bus length for Modbus networks extends up to 1300 meters, allowing for broad coverage across factory floors and industrial plants. Tap link lengths of 15 meters ensure flexibility in connecting multiple devices while maintaining signal integrity.
One of the standout features of the TSXSCY21601 is its extensive diagnostic and monitoring functions. The module includes built-in LED indicators for communication status (CH0), internal faults or module failures (ERR), and overall operational status (RUN). This allows operators to quickly identify and troubleshoot issues, ensuring minimal downtime in automation processes. The module also supports CRC 16 control parameters for error detection in data transmission, enhancing reliability and system stability.
The Schneider Electric TSXSCY21601 communication module comes with a two-year warranty from MRO Electric and Supply, providing customers with peace of mind regarding its performance and reliability. It is readily available for immediate purchase, ensuring businesses can quickly integrate it into their automation systems without delays. This availability is particularly beneficial for industries that rely on continuous operation and cannot afford extended downtimes due to equipment shortages.
What is the primary function of the TSXSCY21601 module?
It is a communication module designed for data exchange within the Modicon Premium Automation platform.
What type of communication does this module support?
It supports multiprotocol communication with RS485 isolated connections.
How many devices can be connected to this module?
It can support up to 28 connected devices.
What is the maximum transmission speed of this module?
The module supports transmission speeds ranging from 1.2 to 19.2 kbit/s.
What is the maximum Modbus bus length for this module?
The bus length extends up to 1300 meters.
Does this module have any diagnostic functions?
It includes event counters, diagnostic monitoring, and CRC 16 error detection.
What kind of local signaling does the module provide?
It features LED indicators for communication status, internal faults, and module operation.
What software is compatible with the TSXSCY21601?
The module is compatible with Unity Pro software.
What is the module's power consumption?
It consumes 350 mA at 5 V DC.
Is this module available for immediate purchase?
It is available through MRO Electric and Supply and has a two-year warranty.
