TSXPSY5520M

2-year Warranty

Same Day Shipping

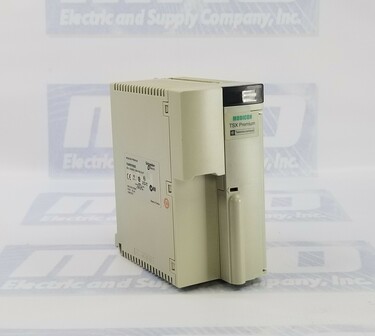

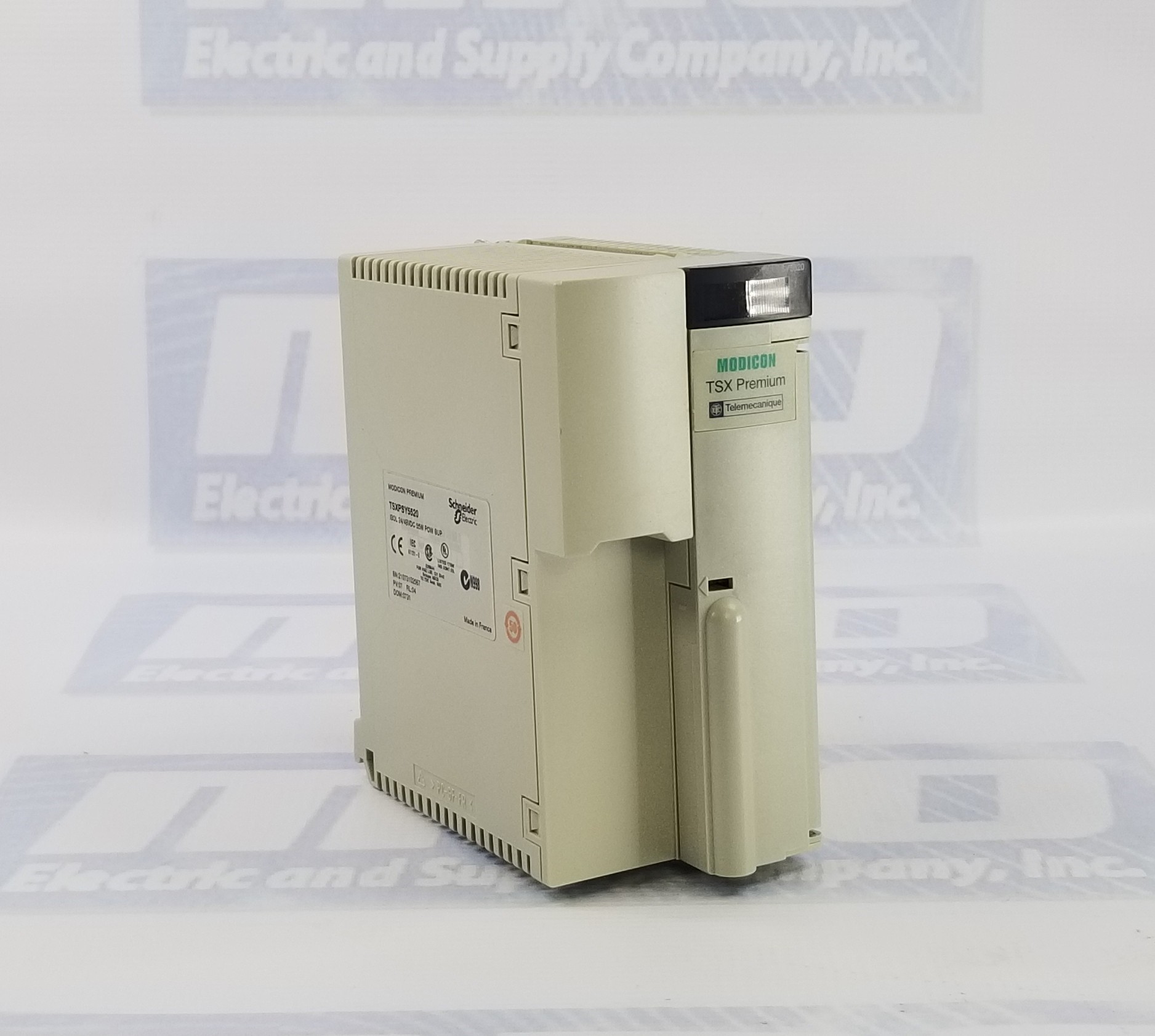

Schneider Electric TSXPSY5520M

MODICON PREMIUM POWER SUPPLY MODULE - 24..48 V DC -

4.5/5
2 ratings

Select Condition

Refurbished

Request Quote

New

2 in stock

$1,679.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberTSXPSY5520M
ManufacturerSchneider Electric
TypePower Supplies
Model #TSX-PSY-5520M
Warranty2 Year
Module formatDouble
Product or component typePower supply module
Primary voltage24...48 V DC 19.2...60 V
Total useful secondary power50 W
Protective treatmentTC
Module formatDouble
Power supply input current≤ 1500 mA 48 V
≤ 3000 mA 24 V
Inrush current15 A 24 V
15 A 48 V
I²t on activation50 A².s 24 V
55 A².s 48 V
It on activation6 A s 48 V
7 A s 24 V
Protection typeInternal fuse 5 A 5 x 20 mm time-delayed primary circuit
Overload protection secondary circuit
Overvoltage protection secondary circuit
Short-circuit protection secondary circuit
Secondary power19 W 24 V DC
35 W 5 V DC
Current at secondary voltage0.8 A 24 V DC relay power supply
7 A 5 V DC
Insulation resistance≥ 10 MOhm primary/secondary
≥ 10 MOhm primary/ground
MarkingCE

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXPSY5520M to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXPSY5520M we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXPSY5520M, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 2lbs

Want it shipped tomorrow?

  • Order within the next 22 hours and 55 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXPSY5520M for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric TSXPSY5520M Overview

Schneider Electric TSXPSY5520M Power Supply Module Overview

The Schneider Electric TSXPSY5520M is a robust power supply module that provides reliable and efficient power distribution in industrial automation systems. With its compact design and versatile features, this module ensures stable power delivery to critical components, enhancing system performance and reliability.

Module Format and Type:

The TSXPSY5520M power supply module is designed in a double module format, providing redundancy and reliability in power distribution. As a primary component type, it is vital in power management within industrial control systems.

Primary Voltage and Total Useful Secondary Power:

Operating within a wide primary voltage range of 24 to 48 V DC (19.2 to 60 V), this module delivers a total useful secondary power of 50 W, ensuring compatibility with various voltage requirements in industrial applications.

Protective Treatment and Input Current:

Featuring protective treatment with TC (thermal conductivity), the module ensures optimal performance even in challenging environmental conditions. It has a power supply input current of ≤ 1500 mA at 48 V and ≤ 3000 mA at 24 V, providing efficient power utilization.

Inrush Current and Activation Characteristics:

The TSXPSY5520M module exhibits an inrush current of 15 A at both 24 V and 48 V. Its activation characteristics include I²t on activation of 50 A².s at 24 V and 55 A².s at 48 V, as well as It on activation of 6 A s at 48 V and 7 A s at 24 V, ensuring smooth power activation without compromising system integrity.

Protection Features:

Equipped with comprehensive protection features, including an internal fuse (5 A 5 x 20 mm time-delayed) for the primary circuit, overload protection, overvoltage protection, and short-circuit protection for the secondary circuit, the module safeguards connected devices from potential electrical faults and ensures safe operation.

Secondary Power and Current Ratings:

The module provides secondary power outputs of 19 W at 24 V DC and 35 W at 5 V DC, catering to the power requirements of various components within the industrial system. It delivers a current of 0.8 A for a 24 V DC relay power supply and 7 A for a 5 V DC, facilitating efficient power distribution to connected devices.

Insulation Resistance and Marking:

With insulation resistance of ≥ 10 MOhm for primary/secondary and primary/ground circuits, the module ensures electrical safety and isolation. Marked with CE certification, it complies with international standards for safety and performance in industrial environments.
