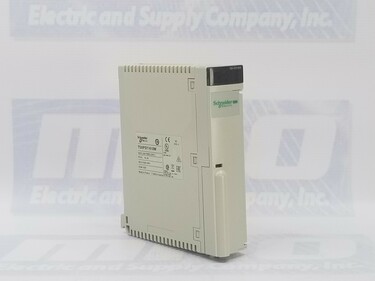

MODICON PREMIUM POWER SUPPLY MODULE - 24 V DC - <= 1500 MA - IP20
| Part Number | TSXPSY1610M |
| Manufacturer | Schneider Electric |
| Type | Power Supplies |
| Model # | TSX-PSY-1610M |
| Warranty | 2 Year |
| Local signalling | 1 LED activity on Fipio bus (FIP) |
| 1 LED RUN | |
| 1 LED TER | |
| 1 LED BAT |
| 1 LED I/O | |
| 1 LED red system fault (ERR) | |
| Product or component type | Power supply module |
| Primary voltage | 24 V DC 19.2...30 V |
| Total useful secondary power | 30 W |
| Protective treatment | TC |
| Module format | Standard |
| Power supply input current | ≤ 1500 mA 24 V |
| Inrush current | 100 A 24 V |
| Protection type | Internal fuse 3.5 A 5 x 20 mm time-delayed primary circuit |
| Overload protection secondary circuit | |
| Overvoltage protection secondary circuit | |
| Short-circuit protection secondary circuit | |
| Secondary power | 15 W 5 V DC |
| 15 W 24 V DC | |
| Current at secondary voltage | 0.6 A 24 V DC relay power supply |
| 3 A 5 V DC | |
| Marking | CE |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXPSY1610M to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXPSY1610M we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXPSY1610M, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty TSXPSY1610M for credit when ordering from MRO Electric
The Schneider Electric TSXPSY1610M is a high-performance power supply module that delivers reliable power to various automation and control systems. With a primary voltage range of 24 V DC (19.2 to 30 V), this compact and versatile module provides a total sound secondary power output of 30 W. It is ideal for industrial applications requiring a stable, efficient power supply. Equipped with multiple protection features and easy-to-monitor LEDs for status indication, the TSXPSY1610M ensures optimal system performance and protection from electrical faults.
The TSXPSY1610M power supply module delivers 15 W of 5 V DC and 15 W of 24 V DC secondary power, making it an excellent choice for systems requiring both voltage levels. The module is designed to handle a secondary current output of 0.6 A at 24 V DC (for relay power supply) and 3 A at 5 V DC. These power outputs make it versatile in various control and automation systems, including PLCs, sensors, and relays. The module’s total useful secondary power of 30 W ensures it can support systems with moderate to high power demands.
The TSXPSY1610M is equipped with multiple built-in protections, ensuring the safety and longevity of connected equipment. It includes overload protection for the secondary circuit, overvoltage, and short-circuit protection. These safety features protect the power supply and other components from damage caused by electrical faults or fluctuations. Additionally, the module features an internal fuse rated at 3.5 A (5 x 20 mm, time-delayed) for further protection of the primary circuit. Combining these safety features ensures reliable operation, reducing downtime and preventing costly damage to system components.
The TSXPSY1610M power supply module has several LED indicators to simplify monitoring and troubleshooting. These include an activity LED for the Fipio bus (FIP), a RUN LED to indicate normal operation, and LEDs for terminal (TER) and battery (BAT) status. The module includes an I/O LED and a red system fault LED (ERR) that quickly indicates any system errors or malfunctions. These LEDs make it easy to monitor the health and status of the power supply and allow operators to diagnose any issues quickly.
Designed for use in demanding industrial environments, the TSXPSY1610M power supply module features a protective treatment (TC) that ensures durability and reliability even in harsh conditions. The CE-marked module confirms that it meets European safety and environmental standards. With an inrush current of 100 A at 24 V and a power supply input current of less than 1500 mA at 24 V, it is efficient and capable of handling surges during power-up, ensuring smooth and reliable performance.
The Schneider Electric TSXPSY1610M is formatted as a standard module, making it suitable for various applications. It is designed to be easily integrated into control systems requiring compact, efficient, and reliable power solutions. The module can be used in multiple Schneider Electric automation platforms, providing a versatile and scalable solution for power distribution needs.
1. What is the primary voltage range for the TSXPSY1610M power supply module?
The TSXPSY1610M operates with a primary voltage range of 24 V DC, with an input voltage range from 19.2 to 30 V, making it compatible with a wide range of industrial applications.
2. What secondary power does the TSXPSY1610M provide?
The power supply module provides 15 W of 5 V DC and 15 W of 24 V DC secondary power, offering 30 W of usable power for industrial control systems.
3. What protection features are included in the TSXPSY1610M?
The TSXPSY1610M includes overload protection, overvoltage protection, short-circuit protection, and an internal fuse for the primary circuit. These protections ensure reliable and safe operation.
4. How much current can the TSXPSY1610M supply at secondary voltages?
At 24 V DC, the module can supply 0.6 A for relay power, while at 5 V DC, it can supply up to 3 A, making it suitable for various industrial applications.
5. What type of status indicators are included in the TSXPSY1610M?
The module features multiple LED indicators for easy monitoring: an activity LED, RUN, TER, BAT, I/O, and a red system fault LED (ERR) to alert users to system issues.
6. Is the TSXPSY1610M suitable for industrial applications?
Yes, the TSXPSY1610M is designed for industrial applications. It has robust protection features and a TC protective treatment, ensuring it can withstand harsh conditions. It is also CE-marked, meeting European safety standards.
The Schneider Electric TSXPSY1610M power supply module provides reliable and efficient power for industrial control systems, ensuring performance, safety, and ease of use for various applications.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Power Supplies from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like TSXPSY1610M, take a look at more from our Power Supplies line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our TSXPSY1610M products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
