TSXP57203M

2-year Warranty

Same Day Shipping

Schneider Electric TSXP57203M

MODICON PREMIUM DOUBLE-FORMAT PL7 PROCESSOR - 550 MA 5 V DC

5/5
5 ratings

Select Condition

Refurbished

4 in stock

New

1 in stock

$1,091.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberTSXP57203M
ManufacturerSchneider Electric
TypeCPUs
Model #TSX-P57-203M
Warranty2 Year
Module formatStandard
Product or component typeDouble-format PL7 processor
Software designationPL7 Junior/Pro
Number of racks16 4/6/8 slots
8 12 slots
Number of slots<= 128
Discrete I/O processor capacity1024 I/O
Analogue I/O processor capacity80 I/O
Number of application specific channel<= 24
Number of process control channel<= 10 up to 30 simple loops
Integrated connection typeNon isolated serial link 2 female mini DIN 19.2 kbit/s
Communication module processor1 fieldbus module (none if CANopen used)
1 network module
4 AS-Interface bus modules
1 CANopen
Memory descriptionInternal RAM (with PCMCIA card) 48 Kwords data
Internal RAM (without PCMCIA card) 48 Kwords program and data
PCMCIA card 160 Kwords program
PCMCIA card 2688 Kwords additional data storage
Maximum size of object areas30.5 %MWi internal words located internal data
32 %KWi constant words located internal data
8132 %Mi located internal bits
Application structure1 fast task
1 master task
64 event tasks
Execution time per instruction0.19 µs Boolean without PCMCIA card
0.21 µs Boolean with PCMCIA card
0.25 µs word or fixed-point arithmetic without PCMCIA card
0.42 µs word or fixed-point arithmetic with PCMCIA card
2.6 µs floating points with PCMCIA card
2.6 µs floating points without PCMCIA card
Number of instructions per ms2.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card
3.57 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card
3.7 Kinst/ms 100 % Boolean with PCMCIA card
4.76 Kinst/ms 100 % Boolean without PCMCIA card
System overhead0.35 ms fast task
1 ms master task
MarkingCE
Local signalling1 LED green processor running (RUN)
1 LED red I/O module or configuration fault (I/O)
1 LED red processor or system fault (ERR)
1 LED yellow activity on the terminal port (TER)
Current consumption750 mA 5 V DC

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXP57203M to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXP57203M we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXP57203M, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 19 hours and 59 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXP57203M for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric TSXP57203M Overview

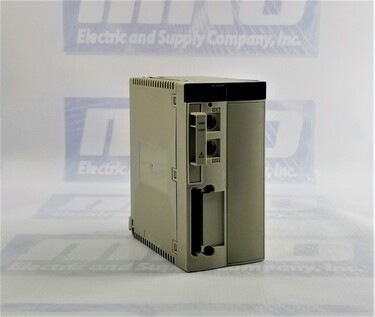

Schneider Electric TSX-P57-203M

The Schneider Electric TSX-P57-203M is a robust, versatile, double-format PL7 processor designed to support large-scale industrial automation. Manufactured as part of Schneider Electric’s Modicon Premium series, this CPU is a reliable choice for complex control tasks. Its PL7 Junior/Pro software compatibility offers a high level of flexibility. A 2-year warranty from MRO Electric and Supply and free shipping ensure added value and peace of mind for buyers.

I/O Capacity and Slot Configuration

The TSX-P57-203M can handle up to 16 racks with configurations of 4, 6, or 8 slots per rack, totaling a maximum of 128 slots. This impressive capacity allows for significant customization to accommodate extensive automation needs, including support for 1024 discrete I/O points and 80 analog I/O points. For specialized applications, the processor provides up to 24 application-specific channels and 10 to 30 process control channels, making it adaptable for diverse industrial environments.

Communication and Connectivity

Equipped with various communication options, the TSX-P57-203M offers a non-isolated serial link through two female mini-DIN connectors with a transfer rate of 19.2 kbit/s. This module supports multiple communication configurations, including one fieldbus module, one network module, four AS-Interface bus modules, and one CANopen connection. This versatility allows it to seamlessly integrate into different industrial network settings, enhancing communication between devices and systems.

Memory and Storage Capabilities

The TSX-P57-203M’s memory capacity is suitable for data-heavy applications. It provides 48 Kwords of internal RAM, with the option to expand storage through PCMCIA cards, adding up to 160 Kwords for programming and an additional 2688 Kwords for data storage. This flexible memory configuration ensures that users can efficiently manage program storage and extensive data logging, allowing for optimized application performance and adaptability.

Processing Speed and Task Management

The processing capabilities of the TSX-P57-203M make it a practical choice for real-time applications. Boolean instructions execute 0.19 µs per instruction without a PCMCIA card and 0.21 µs with it. For fixed-point arithmetic, instructions process at 0.25 µs without and 0.42 µs with the card. Floating-point calculations are complete in 2.6 µs in both configurations. This processor can handle up to 4.76 K instructions per millisecond, ensuring high-speed data processing. Task management includes one fast task, one master task, and 64 event tasks, offering the flexibility to handle multiple simultaneous processes with minimal system overhead (0.35 ms for quick tasks and 1 ms for master tasks).

Diagnostic Indicators and Power Efficiency

The TSX-P57-203M features convenient LED indicators for real-time monitoring: a green LED for processor operation, a red LED for I/O or configuration faults, another red LED for processor/system faults, and a yellow LED for terminal port activity. With a power requirement of 5 V DC and a current consumption of 750 mA, this processor is also designed for energy-efficient operation.

Frequently Asked Questions (FAQ)

1. What is the maximum I/O capacity of the TSX-P57-203M processor?

The TSX-P57-203M can support up to 1024 discrete I/O points and 80 analog I/O points, providing broad flexibility for extensive automation setups.

2. Can I expand the memory of the TSX-P57-203M?

The processor supports PCMCIA cards for expanded memory, allowing up to 160 K words for programming and an additional 2688 K words for data storage.

3. What communication options are available in this module?

The TSX-P57-203M features a non-isolated serial communication link through two mini-DIN ports (19.2 kbit/s). It also supports one Fieldbus module, one network module, four AS-Interface modules, and one CANopen module.

4. What is the instruction execution speed for different types?

Boolean instructions process at 0.19 µs without a PCMCIA card and 0.21 µs with it. Fixed-point arithmetic takes 0.25 µs without and 0.42 µs with the card, while floating-point operations complete in 2.6 µs for both configurations.

5. Are there indicators for system status and errors?

The module includes LEDs for quick diagnostics: a green LED for operation, a red LED for I/O and configuration faults, another red for processor/system faults, and a yellow LED for terminal port activity.

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like TSXP57203M, take a look at more from our CPUs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our TSXP57203M products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
