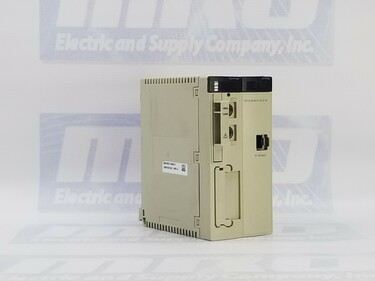

MODICON PREMIUM UNITY PROCESSOR, 2 RACKS (12 SLOTS) / 4 RACKS (4/6/8 SLOTS) - 1650 MA, 5 V DC
| Part Number | TSXP571634M |
| Manufacturer | Schneider Electric |
| Type | CPUs |
| Model # | TSX-P57-1634M |
| Warranty | 2 Year |
| Module format | Standard |
| Product or component type | Unity processor |
| Number of racks | 2 12 slots |
| 4 4/6/8 slots | |
| Discrete I/O processor capacity | 512 I/O |
| Analogue I/O processor capacity | 24 I/O |
| Number of application specific channel | ≤ 8 |
| Integrated connection type | Ethernet TCP/IP RJ45 |
| Serial link 2 female mini DIN RS485 19.2 kbit/s | |
| Communication module processor | 1 |
| 2 | |
| Memory description | PCMCIA card 256 kB additional data storage |
| Internal RAM (with PCMCIA card) 224 kB program | |
| Internal RAM (with PCMCIA card) 96 kB data |
| Internal RAM (without PCMCIA card) 96 kB program and data | |
| Software designation | Unity Pro |
| Protective treatment | TC |
| Number of slots | ≤ 32 |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Maximum size of object areas | 32 kB (elementary and derived data) unlocated internal data |
| 64 %KWi constant words located internal data | |
| 64 %MWi internal words located internal data | |
| 64 kB (DFB and EFB function blocks) unlocated internal data | |
| 4096 %Mi located internal bits | |
| Application structure | 1 fast task |
| 1 master task | |
| 32 event tasks | |
| Execution time per instruction | 0.19 µs Boolean without PCMCIA card |
| 0.25 µs word or fixed-point arithmetic without PCMCIA card | |
| 0.25 µs Boolean with PCMCIA card | |
| 0.5 µs word or fixed-point arithmetic with PCMCIA card | |
| 1.75...2.6 µs floating points without PCMCIA card | |
| 1.75...2.6 µs floating points with PCMCIA card |
| Number of instructions per ms | 2.1 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card |
| 3.1 Kinst/ms 100 % Boolean with PCMCIA card | |
| 3.71 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card | |
| 4.76 Kinst/ms 100 % Boolean without PCMCIA card | |
| System overhead | 0.3 ms fast task |
| 1 ms master task | |
| Marking | CE |
| Local signalling | 1 LED green processor running (RUN) |
| 1 LED red processor or system fault (ERR) | |
| 1 LED red I/O module or configuration fault (I/O) | |
| 1 LED yellow activity on TER or AUX terminal port (TER) | |
| 1 LED green Ethernet TCP/IP port ready (RUN) | |
| 1 LED red Ethernet TCP/IP port fault (ERR) | |
| 1 LED red collision detection (COL) | |
| 1 LED yellow Ethernet link diagnostics (STS) | |
| 1 LED yellow transmission activity (TX) | |
| 1 LED yellow reception activity (RX) | |
| Current consumption | 1650 mA 5 V DC |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXP571634M to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXP571634M we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXP571634M, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty TSXP571634M for credit when ordering from MRO Electric
The TSXP571634M is a cutting-edge Unity processor manufactured by Schneider Electric, designed to deliver unparalleled performance and versatility in industrial automation applications. With its advanced features and robust construction, this processor offers seamless integration and efficient operation in diverse industrial environments.
As a Unity processor, the TSXP571634M provides a unified control solution for industrial automation systems. It serves as the central processing unit (CPU), orchestrating and managing various automation tasks with precision and efficiency.
The TSXP571634M comes in a standard module format, making it compatible with a wide range of industrial control systems. It offers flexibility in installation and configuration, adapting to different system requirements and configurations.
Equipped with powerful processing capabilities, the TSXP571634M supports up to two 12-slot racks or four 4/6/8-slot racks, accommodating extensive I/O configurations. It boasts a discrete I/O processor capacity of 512 I/O and an analogue I/O processor capacity of 24 I/O, ensuring comprehensive connectivity and control.
The TSXP571634M features integrated Ethernet TCP/IP and serial link communication interfaces, offering seamless connectivity to networked devices and systems. With RJ45 Ethernet ports and RS485 serial ports, it enables efficient data exchange and communication within the automation network.
With a PCMCIA card slot, the TSXP571634M supports memory expansion for additional data storage. It comes with a 256 kB PCMCIA card for supplementary data storage, enhancing the processor's capabilities for handling complex automation tasks.
Powered by Unity Pro software, the TSXP571634M ensures efficient execution and high performance in automation applications. It offers fast task execution and supports multiple event tasks, delivering optimal responsiveness and reliability.
Featuring comprehensive diagnostics and signaling capabilities, the TSXP571634M provides real-time status monitoring and fault detection. LED indicators display processor status, I/O module status, Ethernet port status, and communication activity, enabling quick troubleshooting and maintenance.
The TSXP571634M boasts a compact and rugged design, suitable for harsh industrial environments. With CE marking and protective treatment, it meets industry standards for reliability and safety, ensuring long-term operation and performance.
