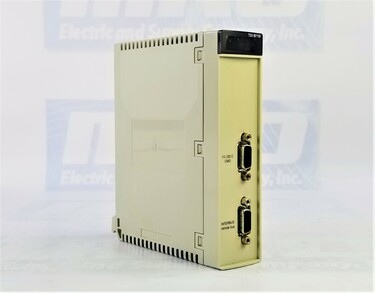

MODICON MICRO INTERBUS BUS MODULE - INDUSTRIAL BUS - FOR PREMIUM PLC - 500 MA AT 5 V DC
| Part Number | TSXIBY100 |
| Manufacturer | Schneider Electric |
| Type | CPUs |
| Model # | TSX-IBY-100 |
| Warranty | 2 Year |
| Product weight | 0.34 kg |
| Range of product | Modicon Premium Automation platform |
| Product or component type | InterBus bus module |
| Product specific application | For Premium PLC |
| Structure type | Industrial bus |
| Number of tap-offs | <= 16 remote bus |
| Physical interface | Combined interface InterBus loop |
| RS485 remote bus | |
| RS485 with 24 V DC in cable installation remote bus | |
| TTL local bus | |
| Method of access | Master/Slave generation 4 |
| Mode of transmission | NRZ |
| Transmission rate | 500 kbit/s |
| Transmission support medium | 2 x 1.5 mm² InterBus loop |
| Fiber optic remote bus | |
| Infrared remote bus | |
| Rotating collector remote bus | |
| Twisted pair remote bus | |
| Wave guide rail remote bus | |
| Length of segment | <= 200 m InterBus loop |
| <= 400 m remote bus | |
| Cable length | <= 1.5 m local bus between 2 bus terminals modules |
| <= 1.5 m local bus between bus terminal module and first module | |
| <= 10 m InterBus loop between 2 bus terminals modules | |
| <= 10 m local bus between bus terminal module and last module | |
| <= 100 m InterBus loop between bus terminal module and last module | |
| <= 12800 m remote bus between module and last station on the remote bus | |
| <= 20 m InterBus loop between bus terminal module and first module | |
| <= 400 m remote bus between 2 bus terminals modules | |
| <= 400 m remote bus between module and the first bus terminal module | |
| <= 50 m installation remote bus between 2 bus terminals modules | |
| <= 50 m installation remote bus between bus terminal module and last module | |
| <= 50 m between bus terminal module and first module |
| Number of loops | 1 InterBus loop |
| Number of bus terminals module | <= 254 remote bus |
| Number of slave | <= 512 remote bus |
| <= 63 InterBus loop | |
| <= 8 local bus | |
| Input/Output number | <= 4096 <= 3872 <= 3872 remote bus |
| Communication service | Bus operating modes management |
| Cyclical variable exchange | |
| Logical addressing | |
| PMS messaging | |
| Pre-processing | |
| Segmentation | |
| Implicit exchange of data process 242 %IW 242 %QW | |
| Local signalling | 6 LEDs |
| Electrical connection | 1 connector female SUB-D 9 RS232 CMD tool software support |
| 1 connector female SUB-D 9 RS485 Interbus link | |
| Current consumption | 500 mA 5 V DC |
| Module format | Standard |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXIBY100 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXIBY100 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXIBY100, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty TSXIBY100 for credit when ordering from MRO Electric
The Schneider Electric TSXIBY100 is a robust and versatile InterBus bus module designed as part of the Modicon Premium Automation platform. Engineered to enhance communication within industrial automation systems, this module facilitates seamless data exchange between programmable logic controllers (PLCs) and connected devices. Its primary application is for use with Premium PLCs, making it ideal for industries seeking to optimize control processes and streamline production environments. With its compact design, weighing just 0.34 kg, the TSXIBY100 combines high functionality with space-efficient installation.
Schneider Electric’s commitment to quality is reflected in the 2-year warranty MRO Electric and Supply provides, ensuring long-term reliability. Additionally, customers benefit from free shipping, making Schneider Electric a cost-effective choice for automation solutions.
The TSXIBY100 is packed with features tailored to complex industrial environments. As an InterBus master/slave generation 4 module, it supports flexible communication with both local and remote devices. The module enables data transmission using the NRZ (Non-Return to Zero) method at a transmission rate of 500 kbit/s, ensuring swift and reliable data exchange.
This unit accommodates various transmission mediums, including twisted pair cables, fiber optic lines, infrared, and waveguide rail systems, allowing for versatile installation options. The physical interfaces include a combined InterBus loop interface, RS485 remote bus, and TTL local bus connections, all enhancing connectivity within expansive automation systems.
The TSXIBY100 can support up to 16 remote bus tap-offs, 254 remote bus terminals, and 512 remote bus slaves, making it suitable for large-scale operations. It can manage up to 4096 I/O points through its integrated communication services, which include cyclical variable exchange, logical addressing, and PMS messaging. These features enable real-time control, efficient segmentation, and enhanced data pre-processing, which is essential for maintaining operational efficiency.
Designed for ease of installation, the TSXIBY100 utilizes a standard module format and offers robust connectivity options. Its bolt-on mount ensures secure placement within control panels. The electrical connections include two female SUB-D 9 connectors: one for RS232 CMD tool software support and another for the RS485 InterBus link. With a current consumption of 500 mA at 5 V DC, the module delivers efficient energy usage without compromising performance.
Cabling options are extensive, supporting various lengths for different installation needs. The InterBus loop can extend up to 12800 meters on the remote bus, allowing for widespread system integration. Shorter segments, like the local bus, can span up to 1.5 meters between modules, ensuring optimal layout flexibility.
The TSXIBY100 features six LED indicators for local signaling, providing clear and immediate status updates. These LEDs enable operators to monitor system performance and diagnose potential issues quickly, reducing downtime and enhancing maintenance efficiency.
Ideal for industrial automation environments, the Schneider Electric TSXIBY100 is commonly used in manufacturing plants, material handling systems, and large-scale process control operations. Its ability to manage multiple loops and handle extensive I/O networks makes it invaluable in complex production settings requiring precise communication between devices.
What is the primary function of the Schneider Electric TSXIBY100?
The TSXIBY100 is an InterBus bus module that facilitates communication between Premium PLCs and connected devices, enhancing data exchange and system control.
Does this product come with a warranty?
Yes, it includes a 2-year MRO Electric and Supply warranty, ensuring quality and long-term support.
Is free shipping available?
Absolutely! Customers purchasing this module benefit from free shipping, providing added value without additional costs.
What types of communication interfaces does the TSXIBY100 support?
The module supports RS485 remote bus, TTL local bus, and InterBus loop connections, ensuring versatile communication options.
How many devices can the module connect to?
It can support up to 512 remote bus slaves, 254 remote bus terminals, and 16 remote bus tap-offs, making it suitable for large systems.
What is the maximum cable length supported?
The remote bus can extend up to 12800 meters, while local and InterBus loops vary between 1.5 to 400 meters, depending on configuration.
What kind of diagnostic features does it have?
The module includes six LEDs for local status signaling, enabling quick diagnostics and real-time monitoring.
What is the current consumption of the TSXIBY100?
It operates with a current consumption of 500 mA at 5 V DC, ensuring energy-efficient performance.
The Schneider Electric TSXIBY100 is a powerful solution for modern industrial communication, combining advanced features with reliable performance. Its versatility, robust construction, and extensive connectivity options make it a top choice for professionals seeking to optimize their automation systems.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry CPUs from other manufacturers such as Modicon and ABB.
