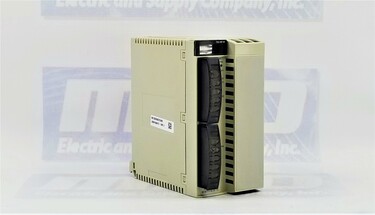

| Part Number | TSXH5744 |
| Manufacturer | Schneider Electric |
| Type | CPUs |
| Model # | TSX-H57-44 |
| Warranty | 2 Year |
| Local signalling | 1 LED green processor running (RUN) |
| 1 LED red processor or system fault (ERR) | |
| 1 LED red I/O module or configuration fault (I/O) | |
| 1 LED yellow activity on TER or AUX terminal port (TER) | |
| 1 LED green Ethernet TCP/IP port ready (RUN) | |
| 1 LED red Ethernet TCP/IP port fault (ERR) | |
| 1 LED red collision detection (COL) | |
| 1 LED yellow Ethernet link diagnostics (STS) | |
| 1 LED yellow transmission activity (TX) | |
| 1 LED yellow reception activity (RX) | |
| USB port USB type A 12 Mbit/s | |
| Ethernet TCP/IP RJ45 | |
| Internal RAM (without PCMCIA card) 440 kB program and data | |
| Internal RAM (with PCMCIA card) 440 kB data | |
| Internal RAM (with PCMCIA card) 2048 kB program | |
| Unlimited (DFB and EFB function blocks) unlocated internal data |
| 8056 %Mi located internal bits | |
| 440 kB data exchanged via CPU Sync link | |
| 32760 %KWi constant words located internal data | |
| 32464 %MWi internal words located internal data | |
| 0.055...0.063 µs floating points with PCMCIA card | |
| 0.054...0.073 µs word or fixed-point arithmetic with PCMCIA card | |
| 0.048...0.057 µs Boolean with PCMCIA card | |
| 0.039...0.057 µs Boolean without PCMCIA card | |
| 15.75 Kinst/ms 100 % Boolean with PCMCIA card | |
| 11.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card | |
| 11.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card | |
| 1 LED yellow reception activity (RX) | |
| 1 LED yellow Ethernet link diagnostics (STS) | |
| 1 LED yellow activity on TER or AUX terminal port (TER) | |
| 1 LED red processor or system fault (ERR) | |
| 1 LED red I/O module or configuration fault (I/O) | |
| 1 LED red Ethernet TCP/IP port fault (ERR) | |
| 1 LED red collision detection (COL) | |
| 1 LED green processor running (RUN) | |
| 1 LED green Ethernet TCP/IP port ready (RUN) | |
| Product or component type | Unity Hot Standby processor |
| Software designation | Unity Pro |
| Number of racks | 1 6/8/12 slots |
| Number of slots | <= 12 |
| Discrete I/O processor capacity | 2048 I/O |
| Analogue I/O processor capacity | 256 I/O |
| Number of application specific channel | <= 64 |
| Number of process control channel | <= 20 up to 60 simple loops |
| Integrated connection type | Non isolated serial link female mini DIN RS485 19.2 kbit/s |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Communication module processor | 4 |
| Memory description | PCMCIA card 16384 kB additional data storage |
| Maximum size of object areas | Unlimited (elementary and derived data) unlocated internal data |
| Application structure | 1 master task |
| Execution time per instruction | 0.055...0.063 µs floating points without PCMCIA card |
| 0.054...0.073 µs word or fixed-point arithmetic without PCMCIA card | |
| Number of instructions per ms | 15.75 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 1 ms master task |
| Marking | CE |
| Local signalling | 1 LED yellow transmission activity (TX) |
| Current consumption | 1880 mA 5 V DC |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXH5744 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXH5744 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXH5744, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty TSXH5744 for credit when ordering from MRO Electric
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry CPUs from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like TSXH5744, take a look at more from our CPUs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our TSXH5744 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
