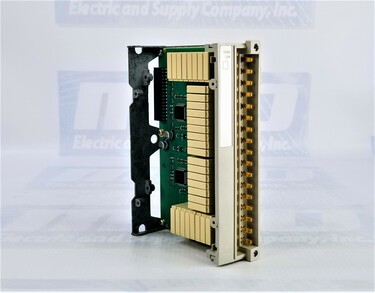

Schneider Electric TSXDSZ32R5 – High-Performance Relay Discrete Output Module

Overview of the TSXDSZ32R5

The Schneider Electric TSXDSZ32R5 is a reliable and efficient discrete output module for industrial automation applications. As part of the Modicon TSX Micro automation platform, this relay output module provides seamless control and enhanced performance for various automation systems. With 32 discrete outputs, it is an ideal choice for industrial processes requiring precise relay control.

Efficient and Versatile Output Capabilities

With 32 screw terminal block discrete outputs, the TSXDSZ32R5 supports a variety of electrical loads with NO (Normally Open) contacts. It is compatible with various voltage limits, from 19-264V AC to 10-34V DC, making it versatile for different power applications. This wide voltage range accommodates AC and DC loads, offering flexibility in industrial environments.

High Power Handling and Consumption Ratings

The relay module features a conventional free-air thermal current of 2A, ensuring reliable operation for connected devices. It also boasts power consumption ratings optimized for different voltage levels:

• 50 VA at 24V AC (resistive loads)
• 200 VA at 110-120V AC (resistive loads)
• 200 VA at 200-240V AC (resistive loads)
• 24 W at 24V DC (resistive loads)

This wide range of power handling capacities ensures the module’s efficiency across multiple automation setups.

Fast and Reliable Performance

The TSXDSZ32R5 relay output module offers quick response times of less than 10ms, making it highly responsive to automation control signals. Its current consumption of 175mA ensures energy-efficient operation, while a power dissipation of just 3.5W minimizes heat generation, extending the lifespan of connected components.

Enhanced Safety and Isolation Features

The module is built with a 1500V isolation voltage, protecting the system from voltage fluctuations and potential short circuits. Additionally, it has an insulation resistance of >=10 MΩ, providing an extra layer of safety in demanding industrial conditions.

Durability and Compliance

Schneider Electric ensures that the TSXDSZ32R5 module complies with RoHS regulations and adheres to strict environmental and safety standards. Though not classified as a Green Premium product, it meets Schneider Electric’s high-quality assurance for sustainable automation solutions.

Seamless Integration into Automation Systems

Designed for easy integration into the Modicon TSX Micro automation platform, this discrete output module simplifies automation control while improving efficiency and reliability. It is ideal for manufacturing plants, process automation, and machine control systems.

Warranty and Shipping

MRO Electric and Supply offers a 2-year warranty on the TSXDSZ32R5 and free shipping, making it a cost-effective and risk-free investment for businesses.

Frequently Asked Questions (FAQs)

What is the primary function of the TSXDSZ32R5 module?

The TSXDSZ32R5 is a relay discrete output module that manages up to 32 discrete outputs and is used to control industrial automation processes.

What types of electrical loads can this module handle?

It supports AC and DC loads, with voltage limits of 19-264V AC and 10-34V DC, making it versatile for different applications.

What is the response time of the TSXDSZ32R5 module?

This module has a response time of less than 10ms, ensuring quick switching and efficient operation.

How much power does this module consume?

The current consumption is 175mA, with power dissipation rated at 3.5W, making it energy efficient.

What is the insulation resistance of the TSXDSZ32R5?

The module has an insulation resistance of ≥10 MΩ, ensuring high safety and reliability in industrial environments.

What kind of outputs does the TSXDSZ32R5 have?

It features 32 NO (Normally Open) relay contacts, providing efficient switching for automation control systems.

Can this module handle inductive loads?

Yes, the TSXDSZ32R5 supports both resistive and inductive loads, with power ratings optimized for both types.

What is the isolation voltage of this module?

The module is designed with a 1500V isolation voltage, protecting connected components from electrical surges.

Is this module compatible with other automation platforms?

It is designed explicitly for the Modicon TSX Micro automation platform but can be used in other compatible industrial automation systems.

Does this product come with a warranty?

Yes, MRO Electric and Supply offers a 2-year warranty and free shipping, ensuring a risk-free purchase.

The Schneider Electric TSXDSZ32R5 is a robust, reliable, and versatile relay discrete output module, ideal for various industrial automation applications. With fast response times, high voltage compatibility, and seamless integration into the Modicon TSX Micro platform, it is a trusted solution for industrial control needs.
