Available
Free Shipping
2 Year warranty

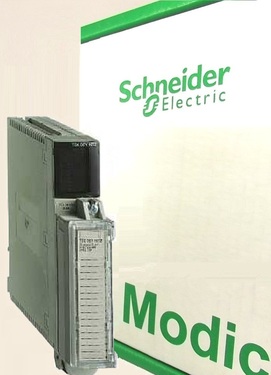

| Part Number | TSXDSY16T3 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | TSX-DSY-16T3 |
| Warranty | 2 Year |
| Module format | Standard |
| Product or component type | Discrete output module |
| Discrete output number | 16 |
| Discrete output type | Solid state protected |
| Discrete output voltage | 48 V DC positive conforming to EN/IEC 61131-238...60 V |
| Discrete output current | 0.25 A |
| Current per channel | <= 0.31 A |
| Current per module | <= 4 A |
| Leakage current | < 0.5 mA at state 0 |
| [Ures] residual voltage | < 1.5 V |
| Response time | 1.2 ms |
| Switching frequency | 0.5/LI² Hz |
| Output overvoltage protection | By transil diode |
| Reverse polarity protection | Reverse mounted diode |
| Output overload protection | Electronic tripping on reactivation |
| Short-circuit protection | Electronic tripping on reactivation |
| Preactuator voltage detection threshold | 34 V |
| Load impedance | >= 192 W |
| Isalotion resistance | > 10 MOhm 500 V |
| Power dissipation | (2.4 W + 0.85 W x No of outputs x current per module) |
| Marking | CE |
| Electrical connection | Screw terminal block |
| Current consumption | 80 mA 5 V DC |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXDSY16T3 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXDSY16T3 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXDSY16T3, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty TSXDSY16T3 for credit when ordering from MRO Electric
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like TSXDSY16T3, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our TSXDSY16T3 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
