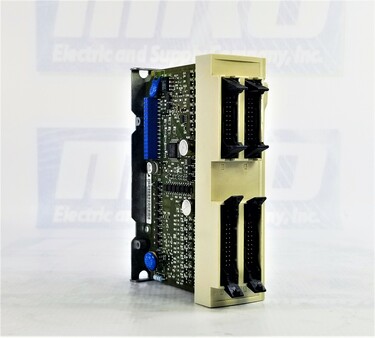

MODICON MICRO TSX MICRO - 64 I/O SOLID STATE
| Part Number | TSXDMZ64DTK |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | TSX-DMZ-64DTK |
| Warranty | 2 Year |
| Product weight | 0.33 kg |
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Discrete solid state I/O base DC |
| Discrete input number | 32 1 HE-10 connector |
| Discrete input voltage | 24 V DC positive |
| Discrete input current | 3.5 mA |
| Discrete input type | Current sink |
| Discrete output number | 32 1 HE-10 connector |
| Discrete output voltage | 24 V DC |
| Discrete output current | 0.1 mA |
| Discrete output logic | Positive |
| Input voltage limits | >= 11 V at state 1 |
| < 5 V at state 0 | |
| Input current limits | <= 1.5 mA at state 0 |
| >= 2.5 mA at state 1 | |
| Input impedance | 6.3 Ohm |
| Response time | 0.1...7.5 ms from state 1 to state 0 input |
| 0.1...7.5 ms from state 0 to state 1 input | |
| < 2.5 ms from state 1 to state 0 output | |
| < 2.5 ms from state 0 to state 1 output | |
| Input compatibility | 2-wire/3-wire proximity sensor |
| Current consumption | 197 mA |
| Power dissipation in W | 3.5 W by module output |
| 0.15 W by channel output | |
| 5 W input | |
| Output voltage limits | 19...30 V |
| Output current limits | 0.25 A |
| Leakage current | <= 0.1 mA at state 0 |
| [Ures] residual voltage | <= 1.5 V |
| Load impedance ohmic | 220 Ohm |
| Switching frequency | < 0.5/LI² Hz |
| Output overvoltage protection | By zener diode |
| Output short-circuit protection | By current limiter and electronic circuit breaker |
| Reverse polarity protection | Reverse diode on power supply |
| Paralleling of outputs | Yes : 3 maximum |
| Isolation voltage | 1500 V 1 s |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXDMZ64DTK to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXDMZ64DTK we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXDMZ64DTK, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty TSXDMZ64DTK for credit when ordering from MRO Electric
The Schneider Electric TSXDMZ64DTK is a robust and versatile discrete solid-state I/O base module designed for the Modicon TSX Micro automation platform. This I/O module combines reliability and performance, making it ideal for various industrial applications that demand precision, durability, and efficient control. Weighing just 0.33 kg, it is compact and easy to integrate into existing systems. It is backed by a 2-year warranty from MRO Electric and Supply, with the added benefit of free shipping for customer convenience.
This module offers 32 discrete inputs, each accessible via a 1 HE-10 connector. The inputs operate at 24 V DC positive voltage with a current of 3.5 mA. Designed to handle current sinking inputs, the TSXDMZ64DTK boasts an input voltage range of >= 11 V for state one and < 5 V for state 0, ensuring accurate signal detection. Its input impedance of 6.3 Ohm and compatibility with 2-wire or 3-wire proximity sensors make it flexible for various setups. Response times are highly efficient, ranging from 0.1 to 7.5 ms for state transitions.
The TSXDMZ64DTK also includes 32 discrete outputs, accessible via a 1 HE-10 connector, operating at 24 V DC. With a discrete output current of 0.1 mA per channel, the module provides stable performance, and each channel is designed with positive output logic. The output voltage limits span from 19 to 30 V, ensuring compatibility with various devices. Additional protections, such as overvoltage protection via zener diodes and short-circuit protection through current limiters and electronic circuit breakers, safeguard the module from potential damage. The output response time is quick, taking less than 2.5 ms for state changes.
The module is energy-efficient, with a total power dissipation of 3.5 W for module output, 0.15 W per channel output, and 5 W for input processing. Its current consumption is 197 mA, ensuring optimal operation without excessive power usage.
To enhance its durability and reliability, the TSXDMZ64DTK is equipped with several safety features. These include reverse polarity protection via a reverse diode, overvoltage protection, and short-circuit protection. Up to three outputs can be paralleled for higher current needs. The module also boasts a robust isolation voltage of 1500 V for 1 second, ensuring operational safety in demanding environments.
Ideal for industrial automation, the TSXDMZ64DTK excels in manufacturing, process control, and other environments requiring precise and reliable I/O handling. Its compatibility with the Modicon TSX Micro platform ensures seamless integration into complex systems.
What is the purpose of the TSXDMZ64DTK module?
The TSXDMZ64DTK is a discrete I/O module that interfaces digital input and output signals with the Modicon TSX Micro automation platform.
How many inputs and outputs does it support?
The module supports 32 discrete inputs and 32 discrete outputs, accessible via HE-10 connectors.
What protections does this module offer?
It includes reverse polarity, overvoltage, and short-circuit protection to ensure safe and reliable operation.
What are the power requirements for this module?
The module operates at 24 V DC and consumes 197 mA of current. Its power dissipation is 3.5 W for outputs and 5 W for inputs.
Is this module compatible with proximity sensors?
Yes, the TSXDMZ64DTK is compatible with both 2-wire and 3-wire proximity sensors.
Can outputs be paralleled?
Yes, outputs can be paralleled, with a maximum of three outputs allowed for this configuration.
Does the module have a warranty?
Yes, it is backed by a 2-year MRO Electric and Supply warranty, with free shipping included.
What is the response time for input and output transitions?
The input response time ranges from 0.1 to 7.5 ms, and the output response time is less than 2.5 ms.
What is the operating temperature range?
The TSXDMZ64DTK is designed to operate in various industrial environments, but specific ambient temperature ranges should be verified in the user manual.
Is it suitable for high-voltage environments?
Yes, the module features an isolation voltage of 1500 V for 1 second, making it suitable for high-voltage applications.
