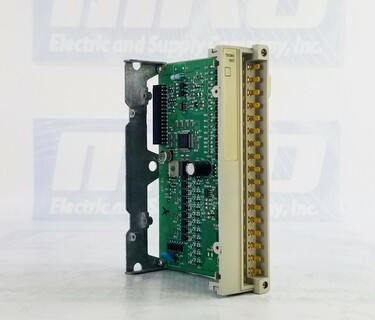

MODICON MICRO TSX MICRO - 16 INPUT 12 OUTPUT SOLID STATE 24 VDC
| Part Number | TSXDMZ28DT |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | TSX-DMZ-28DT |
| Warranty | 2 Year |
| Product weight | 0.5 kg |
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Discrete solid state I/O base DC |
| Discrete input number | 16 1 HE-10 connector |
| Discrete input voltage | 24 V DC positive |
| Discrete input current | 7 mA |
| Discrete input type | Resistive |
| Discrete output number | 12 screw terminal block |
| Discrete output voltage | 24 V DC |
| Discrete output current | 0.5 mA |
| Discrete output logic | Positive |
| Input voltage limits | >= 11 V at state 1 |
| < 5 V at state 0 | |
| Input current limits | <= 1.5 mA at state 0 |
| >= 2.5 mA at state 1 | |
| Input impedance | 3.4 Ohm |
| Response time | <= 0.5 ms from state 1 to state 0 output |
| <= 0.5 ms from state 0 to state 1 output | |
| 0.1...7.5 ms from state 1 to state 0 input | |
| 0.1...7.5 ms from state 0 to state 1 input | |
| Input compatibility | 2-wire/3-wire proximity sensor |
| Current consumption | 132 mA |
| Power dissipation in W | 3.5 W by module output |
| 0.15 W by channel output | |
| 5 W input | |
| Output voltage limits | 19...30 V |
| Output current limits | 0.625 A |
| Leakage current | <= 0.5 mA at state 0 |
| [Ures] residual voltage | <= 0.3 V |
| Load impedance ohmic | 48 Ohm |
| Switching frequency | < 0.6/LI² Hz |
| Output overvoltage protection | By zener diode |
| Output short-circuit protection | By current limiter and electronic circuit breaker |
| Reverse polarity protection | Reverse diode on power supply |
| Paralleling of outputs | Yes : 2 maximum |
| Isolation voltage | 1500 V 1 s |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXDMZ28DT to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXDMZ28DT we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXDMZ28DT, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty TSXDMZ28DT for credit when ordering from MRO Electric
The Schneider Electric TSX-DMZ-28DT is a discrete solid-state I/O base module designed for use within the Modicon TSX Micro automation platform. This high-performance module is essential for industrial automation, providing efficient input and output management for various applications. Its robust design, fast response time, and reliable solid-state components make it an ideal solution for high-speed processing in manufacturing, robotics, and process control systems.
The TSX-DMZ-28DT features 16 discrete inputs with a 24 V DC positive voltage, ensuring compatibility with various sensors and switches. These inputs operate with a resistive load and have a discrete input current of 7 mA. The module also includes 12 discrete outputs with a 24 V DC positive logic configuration, capable of handling 0.5 mA discrete output current per channel. This module ensures real-time data processing and system efficiency with fast response times of 0.1 to 7.5 milliseconds for inputs and 0.5 milliseconds for outputs.
The TSX-DMZ-28DT is built with multiple protective mechanisms, including output overvoltage protection via a Zener diode, output short-circuit protection with a current limiter and electronic circuit breaker, and reverse polarity protection using a reverse diode on the power supply. These features safeguard the module against electrical faults, ensuring long-term reliability and reducing downtime in industrial environments.
This I/O module consumes 132 mA and operates with a power dissipation of 3.5 W per module output and 5 W for input power. It also offers 1500 V isolation voltage, enhancing safety and preventing electrical interference between connected components. Paralleling of outputs allows up to two maximum outputs, offering flexibility in high-load applications.
The Schneider Electric TSX-DMZ-28DT is available for immediate shipping with free delivery, ensuring businesses can quickly acquire this crucial component for their automation systems. It is also backed by a two-year MRO Electric and Supply warranty, assuring quality and performance.
What is the primary function of the TSX-DMZ-28DT module?
It is a discrete solid-state I/O base module, managing 16 inputs and 12 outputs for automation control systems.
What type of automation platform is this module compatible with?
It is designed for use with the Modicon TSX Micro automation platform by Schneider Electric.
What is the input voltage rating?
The discrete inputs operate at 24 V DC positive voltage.
What is the module's response time?
The response time is ≤ 0.5 ms for outputs and 0.1 to 7.5 ms for inputs, ensuring high-speed processing.
What protective features does this module include?
It includes overvoltage, short-circuit, and reverse polarity protection for enhanced durability.
Can the outputs of the module be paralleled?
Yes, up to two outputs can be paralleled for increased load handling.
What is the isolation voltage of this module?
The isolation voltage is 1500 V for 1 second, ensuring safe operation.
What sensors are compatible with the input section?
It supports 2-wire and 3-wire proximity sensors.
What is the warranty period for this module?
It comes with a two-year warranty from MRO Electric and Supply.
Where can I purchase the TSX-DMZ-28DT module?
It is available for immediate shipping with free MRO Electric and Supply delivery.
