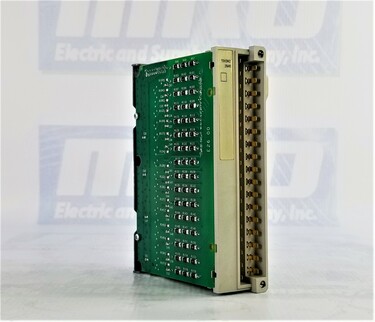

MODICON MICRO MICRO - 28 I/O 100…120 V RELAY
| Part Number | TSXDMZ28AR |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | TSX-DMZ-28AR |
| Warranty | 2 Year |
| Product weight | 0.16 kg |
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Discrete relay I/O base |
| Discrete input number | 16 screw terminal block |
| Discrete input voltage | 100...120 V AC |
| Frequency measurement range | 47...63 Hz |
| Discrete input current | 11 mA 50 Hz |
| 13 mA 60 Hz | |
| Input voltage limits | >= 74 V at state 1 |
| < 20 V at state 0 | |
| Input current limits | <= 4 mA at state 0 |
| > 6 mA at state 1 | |
| Response time | < 10 ms output |
| 11...18 ms input at state 0 to state 1 50 Hz | |
| 9...16 ms input at state 0 to state 1 60 Hz | |
| 11...24 ms input at state 1 to state 0 50 Hz | |
| 10...22 ms input at state 1 to state 0 60 Hz | |
| Input compatibility | 2-wire proximity sensor |
| Load type | Capacitive |
| Current consumption | 125 mA |
| Power dissipation in W | 5.6 W |
| Output voltage limits | 10...34 V DC |
| 19…264 V AC |
| Contacts type and composition | NO |
| Power consumption in VA | 50 VA 24 V AC-12 resistive |
| 110 VA 48 V AC-12 resistive | |
| 220 VA 110 V AC-12 resistive | |
| 220 VA 220 V AC-12 resistive | |
| 24 VA 24 V AC-15 inductive | |
| 24 VA 48 V AC-15 inductive | |
| 220 VA 220 V AC-15 inductive | |
| 110 VA 110 V AC-15 inductive | |
| Power consumption in W | 40 W 24 V DC-12 resistive |
| 24 W 24 V DC-13 inductive | |
| Isolation voltage | 1500 V 1 s |
| Insulation resistance | >= 10 mOhm |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXDMZ28AR to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXDMZ28AR we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXDMZ28AR, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty TSXDMZ28AR for credit when ordering from MRO Electric
The Schneider Electric TSXDMZ28AR is a highly efficient I/O module designed for the Modicon TSX Micro automation platform. This discrete relay I/O base unit is engineered to streamline automation processes by facilitating reliable and precise control in various industrial applications. Weighing only 0.16 kg, this compact module is built for ease of integration and adaptability within existing control systems. It is ideal for engineers and technicians looking to enhance their automation solutions.
The TSXDMZ28AR features 16 discrete input channels, each equipped with screw terminal blocks, allowing for straightforward connections to a variety of devices. It operates on an input voltage range of 100 to 120 V AC, ensuring compatibility with familiar industrial power sources. This module can effectively measure frequencies ranging from 47 to 63 Hz, making it suitable for diverse applications that require precise timing and monitoring.
The module has current specifications for specific input and output for optimum performance. It operates with an input current of 11 mA at 50 Hz and 13 mA at 60 Hz. The input voltage limits are set at ≥ 74 V for a state of 1 and < 20 V for a state of 0, providing clear operational status indicators. The input current limits are also carefully defined, ensuring the device operates within safe parameters: ≤ 4 mA at state 0 and > six mA at state 1.
Response times are crucial for many industrial applications, and the TSXDMZ28AR delivers impressive performance in this area. The output response time is less than 10 ms, while the input response time varies between 9 to 24 ms depending on the specific frequency and state transitions. This swift response capability enables the module to handle dynamic processes efficiently, enhancing overall system responsiveness.
The TSXDMZ28AR is designed for compatibility with 2-wire proximity sensors and supports capacitive load types. This versatility ensures that it can be integrated with various sensors and devices commonly used in industrial automation systems. With a current consumption of 125 mA, it operates efficiently without placing excessive demand on the power supply.
Power dissipation is rated at 5.6 W, with various output voltage limits ranging from 10 to 34 V DC and 19 to 264 V AC. The module’s contact type is designated as Normally Open (NO), a common requirement for many automation applications. Power consumption ratings are robust, with specifications allowing for up to 220 VA at 110 or 220 V AC for resistive loads. The module also features an isolation voltage of up to 1500 V for 1 second, ensuring safe operation and protection against electrical surges.
Schneider Electric is renowned for its commitment to quality, and the TSXDMZ28AR is no exception. It is backed by a 2-year MRO Electric and Supply warranty, further emphasizing its reliability and durability in demanding environments. Additionally, customers can benefit from free shipping, making it even more accessible for businesses looking to enhance their automation capabilities.
Q1: What is the primary function of the TSXDMZ28AR I/O module?
A1: The TSXDMZ28AR I/O module is designed for use in the Modicon TSX Micro automation platform and functions as a discrete relay I/O base. It provides 16 discrete input channels to facilitate the control and monitoring of various industrial automation processes.
Q2: What is the input voltage range for the TSXDMZ28AR?
A2: This module operates on an input voltage range of 100 to 120 V AC, making it compatible with standard industrial power sources.
Q3: How many discrete input channels does the TSXDMZ28AR have?
A3: The TSXDMZ28AR features 16 discrete input channels, which are equipped with screw terminal blocks for easy connections to devices.
Q4: What are the response times for input and output signals?
A4: The output response time for the TSXDMZ28AR is less than 10 ms. For input signals, the response time varies: it takes 11 to 18 ms for transitions from state 0 to state 1 at 50 Hz and 9 to 16 ms at 60 Hz. Transitions from state 1 to state 0 take 10 to 24 ms at 50 Hz and 10 to 22 ms at 60 Hz.
Q5: What types of sensors are compatible with the TSXDMZ28AR?
A5: The TSXDMZ28AR is compatible with 2-wire proximity sensors and can handle capacitive load types, allowing it to interface with a wide range of sensors and devices commonly used in automation applications.
Q6: What is the power consumption of the TSXDMZ28AR?
A6: The TSXDMZ28AR consumes 125 mA. Its power dissipation is rated at 5.6 W, and the power consumption rating varies depending on the load type, such as 50 VA for 24 V AC resistive loads.
Q7: What isolation voltage does the TSXDMZ28AR support?
A7: The module features an isolation voltage of 1500 V for 1 second, ensuring safe operation and protection against electrical surges.
Q8: What kind of warranty is provided with the TSXDMZ28AR?
A8: MRO Electric and Supply offers a 2-year warranty on the TSXDMZ28AR, emphasizing its reliability and quality for industrial applications.
Q9: Is there free shipping available for the TSXDMZ28AR?
A9: Customers can benefit from free shipping when purchasing the TSXDMZ28AR from MRO Electric and Supply.
Q10: Can the TSXDMZ28AR be used in harsh industrial environments?
A10: Yes, the TSXDMZ28AR is built for industrial applications and can operate effectively in various environments, providing reliable performance for automation tasks. Its robust construction and compliance with industry standards ensure its reliability even in challenging conditions.
