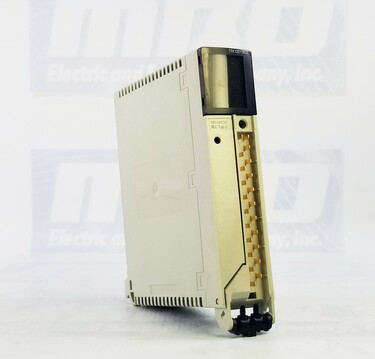

MODICON PREMIUM DISCRETE INPUT MODULE - 16 I 24 V DC
| Part Number | TSXDEY16D2 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | TSX-DEY-16D2 |
| Warranty | 2 Year |
| Module format | Standard |
| Product or component type | Discrete input module |
| Discrete input number | 16 current sink isolated EN/IEC 61131-2 type 2 |
| Discrete input voltage | 24 V DC positive |
| Electrical connection | Screw terminal |
| Protective treatment | TC |
| Sensor power supply | 19...30 V |
| Input compatibility | With 2-wire/3-wire proximity sensors EN/IEC 60947-5-2 |
| Discrete input current | 7 mA |
| Voltage state 1 guaranteed | ≥ 11 V |
| Current state 1 guaranteed | ≥ 6.5 mA |
| Voltage state 0 guaranteed | ≤ 5 V |
| Current state 0 guaranteed | ≤ 2 mA |
| Input impedance | 4000 Ohm at state 1 |
| Response time | 4 ms |
| <= 7 ms | |
| Insulation resistance | < 10 MOhm 500 V DC |
| Power dissipation | (1 W + 0.15 W x No of channels used) |
| Marking | CE |
| Current consumption | 80 mA 5 V DC |
| 135 mA 24 V DC |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXDEY16D2 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXDEY16D2 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXDEY16D2, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty TSXDEY16D2 for credit when ordering from MRO Electric
The Schneider Electric TSXDEY16D2 is a high-performance discrete input module that provides reliable and precise input handling for industrial automation systems. Part of the Modicon platform, this module integrates seamlessly into various configurations, ensuring efficiency and accuracy in data processing and control applications. Its robust design and cutting-edge specifications make it an ideal solution for demanding environments.
The TSXDEY16D2 is a standard-format discrete input module featuring 16 isolated inputs that comply with EN/IEC 61131-2 type 2 standards. Each input supports 24 V DC positive voltage, ensuring compatibility with modern industrial control systems. The module has been optimized for seamless electrical connectivity through screw terminals and boasts a protective TC treatment for enhanced durability in harsh environments.
This input module is compatible with 2-wire and 3-wire proximity sensors per EN/IEC 60947-5-2, extending its versatility across various sensing applications. Its input circuitry provides a discrete input current of 7 mA and ensures reliable operation with voltage state one guaranteed at ≥11 V and current state 1 guaranteed at ≥6.5 mA.
The TSXDEY16D2 has an input impedance of 4000 ohms at state one and offers a quick response time between 4 ms and ≤7 ms, ensuring high-speed data acquisition. Additionally, the module is designed with a sensor power supply range of 19 to 30 V, providing robust support for connected devices.
Energy consumption and safety are critical considerations in industrial automation, and the TSXDEY16D2 excels in both areas. The module's current consumption is 80 mA at 5 V DC and 135 mA at 24 V DC, ensuring efficient power use. With a power dissipation rate of (1 W + 0.15 W x number of channels used), it balances performance and energy savings.
Its insulation resistance of less than 10 MOhms at 500 V DC further enhances safety, ensuring reliable operation while protecting connected equipment. The CE marking assures compliance with international safety standards.
The module's robust protective treatment and high-quality construction ensure it can withstand challenging conditions. Designed for long-term reliability, the TSXDEY16D2 is an essential component for industrial control systems that demand precision, durability, and performance.
MRO Electric and Supply provides a 2-year warranty on the TSXDEY16D2 to ensure peace of mind. Additionally, customers benefit from free shipping, making it a cost-effective solution for industrial automation needs.
Q1: What is the input voltage range for the TSXDEY16D2?
A1: The module supports a favorable discrete input voltage of 24 V DC, ensuring compatibility with standard industrial systems.
Q2: How many inputs does this module support?
A2: The TSXDEY16D2 features 16 discrete isolated inputs for precise control and monitoring.
Q3: Is this module compatible with proximity sensors?
A3: It is compatible with 2-wire and 3-wire proximity sensors as per EN/IEC 60947-5-2 standards.
Q4: What is the response time of the module?
A4: The module provides a quick response time of 4 ms to ≤7 ms, making it suitable for high-speed operations.
Q5: What is the power consumption of the TSXDEY16D2?
A5: The module consumes 80 mA at 5 V DC and 135 mA at 24 V DC, with power dissipation calculated as (1 W + 0.15 W x number of channels used).
Q6: What safety standards does this module meet?
A6: The TSXDEY16D2 is marked with CE certification, ensuring compliance with international safety and quality standards.
Q7: What kind of warranty is offered?
A7: The module comes with a 2-year MRO Electric and Supply warranty covering manufacturing defects.
Q8: Does this product qualify for free shipping?
A8: Free shipping is provided, making it a cost-efficient investment for your automation needs.
The Schneider Electric TSXDEY16D2 is a reliable, efficient, and versatile input module tailored for modern industrial applications. It ensures precision, safety, and performance.
