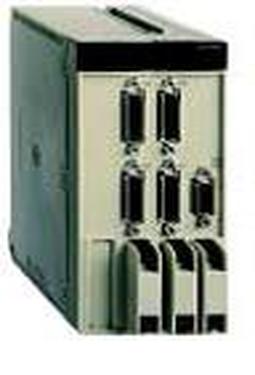

| Part Number | TSXCAY42C |
| Manufacturer | Schneider Electric |
| Type | Controllers |
| Model # | TSX-CAY-42C |
| Warranty | 2 Year |
| Module format | Double |
| Range of product | Modicon Premium Automation platform |
| Product or component type | Motion control modules |
| Product specific application | For servomotors |
| Servo loop type | Proportional to overshoot compensation and gain switching 4 ms |
| I/O modularity | 4 axes |
| Input compatibility | Absolute encoder parallel output ABE7CPA11 |
| Absolute encoder SSI output 12...25 bits | |
| Incremental encoder 5 V DC RS422 | |
| Incremental encoder 10...30 V totem pole | |
| With 2-wire/3-wire sensor (24 DC) auxiliary input | |
| Clock frequency | 200 kHz SSI absolute encoder |
| Incremental encoder | 500 kHz frequency x1 |
| Checks | Consistency of commands |
| Encoder coupling, servo drive present, emergency stop | |
| Presence of voltage/sensor feedback counter input | |
| Proper execution of movement | |
| Sensor power supply | |
| Validity of parameters | |
| Speed profile path | Trapezoidal or parabolic |
| Resolution | <= 1000 position units per point |
| >= 0.5 position units per point | |
| Length of axis | 256...32000000 P |
| Acquisition speed | <= 270000 points/mn |
| >= 54000 points/mn | |
| Acceleration time | 8 ms...10 s |
| Operating mode | FOLLOWER |
| OFF | |
| Automatic | |
| Direct drive mode |
| Manual | |
| Type of axis | Following axis dynamic ratio |
| Infinite axis | |
| Limited axis | |
| Function of module | Servo drive offset correction |
| Incremental encoder frequency x 4 | 250 kHz in input |
| 1000 kHz in counting | |
| Power dissipation in W | 10...17 W |
| Input type | Current sink auxiliary input EN/IEC 1131 Type 2 |
| Resistive counter input | |
| Resistive servo drive control input EN/IEC 1131 Type 1 | |
| Input logic | Positive |
| Input voltage | 5 V 18 mA counter input |
| 24 V 8 mA servo drive control input | |
| 24 V 8 mA auxiliary input | |
| Input voltage limits | 19...30 V servo drive control input |
| 19...30 V auxiliary input | |
| <= 5.5 V counter input | |
| Voltage state 1 guaranteed | ≥ 11 V servo drive control input |
| ≥ 11 V auxiliary input | |
| ≥ 2.4 V counter input | |
| Current state 1 guaranteed | > 3.5 mA servo drive control input |
| > 3.7 mA counter input | |
| > 6 mA auxiliary input | |
| Voltage state 0 guaranteed | ≤ 1.2 V counter input |
| ≤ 5 V servo drive control input | |
| ≤ 5 V auxiliary input | |
| Current state 0 guaranteed | < 1.5 mA servo drive control input |
| < 1 mA counter input | |
| < 2 mA auxiliary input | |
| Input impedance | 270 Ohm counter input |
| 3000 Ohm servo drive control input | |
| 3000 Ohm auxiliary input | |
| Number of outputs | 4 analogue output static |
| 4 servo drive validation output relay |
| 4 reflex output static EN/IEC 61131 | |
| Analogue output range | +/- 10...24 V |
| Analogue output resolution | 13 bits + sign |
| LSB value | 1.25 mV analogue output |
| Output voltage | 24 V DC servo drive validation |
| 24 V DC reflex output | |
| Output voltage limits | 5...30 V servo drive validation |
| 19...30 V reflex output | |
| Nominal output current | 0.5 A reflex output |
| Maximum output current | 1.5 mA analogue output |
| 200 mA servo drive validation output | |
| 625 mA reflex output | |
| Minimum load | 1 mA 1 V |
| Voltage drop | < 1 V at state on reflex output |
| Leakage current | < 0.3 mA reflex output |
| Switching time | < 500 µs for reflex output |
| < 5 ms for servo drive validation | |
| Output compatibility | Positive logic DC inputs (resistance <= 15 kOhm) reflex |
| Short-circuit protection | Current limiter reflex output |
| Thermal tripping reflex output | |
| Output overload protection | Current limiter reflex output |
| Thermal tripping reflex output | |
| Output overvoltage protection | Zener diode between outputs and 24 DC reflex output |
| Reverse polarity protection | Reverse diode on supply reflex output |
| Local signalling | 1 LED green module operating (RUN) |
| 1 LED red internal fault, module failure (ERR) | |
| 1 LED red external fault (I/O) | |
| 4 LED green axis diagnostics available | |
| Electrical connection | 1 connector SUB-D 9 for an analogue output (speed reference) |
| 1 connector HE-10 20 pins for servo drive ctrl inputs + for ext power supply of servo drive inputs/outputs | |
| 3 connectors HE-10 20 pins for aux inputs, reflex output, for external sensor and preactuator power supply | |
| 4 connectors SUB-D 15 for an incremental or absolute encoder | |
| Current consumption | 22...40 mA 24 V DC on 10/30 V absolute encoder module |
| 30 mA 24 V DC | |
| 1500 mA 5 V DC |
