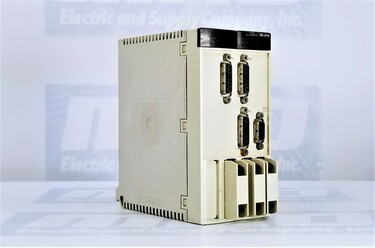

| Part Number | TSXCAY33 |
| Manufacturer | Schneider Electric |
| Type | Controllers |
| Model # | TSX-CAY-33 |
| Warranty | 2 Year |
| Module format | Standard |
| Product or component type | Motion control modules |
| Product specific application | For servo motors |
| Servo loop type | Proportional to overshoot compensation and gain switching 4 ms |
| Checks | Consistency of commands |
| Encoder coupling, servo drive present, emergency stop | |
| Proper execution of movement | |
| Sensor power supply | |
| Validity of parameters | |
| Presence of voltage/sensor feedback counter input | |
| Speed profile path | Trapezoidal or parabolic |
| Resolution | <= 1000 position units per point |
| >= 0.5 position units per point | |
| Length of axis | 256...32000000 P |
| Acquisition speed | <= 270000 points/mn |
| >= 54000 points/mn | |
| Acceleration time | 8 ms...10 s |
| Operating mode | OFF |
| FOLLOWER | |
| Manual | |
| Direct drive mode | |
| Automatic | |
| Type of axis | 2/3 axis linear interpolation |
| Limited axis | |
| I/O modularity | 3 axes |
| Input compatibility | Absolute encoder SSI output 12...25 bits |
| Incremental encoder 10...30 V totem pole | |
| Incremental encoder 5 V DC RS422 | |
| With 2-wire/3-wire sensor (24 DC) auxiliary input |
| Absolute encoder parallel output ABE7CPA11 | |
| Clock frequency | 200 kHz SSI absolute encoder |
| Incremental encoder frequency x1 | 500 kHz |
| Incremental encoder frequency x 4 | 1000 kHz in counting |
| 250 kHz in input | |
| Power dissipation in W | 10...17 W |
| Input type | Current sink auxiliary input conforming to EN/IEC 1131 Type 2 |
| Resistive counter input | |
| Resistive servo drive control input conforming to EN/IEC 1131 Type 1 | |
| Input logic | Positive |
| Input voltage | 24 V 8 mA auxiliary input |
| 24 V 8 mA servo drive control input | |
| 5 V 18 mA counter input | |
| Input voltage limits | <= 5.5 V counter input |
| 19...30 V auxiliary input | |
| 19...30 V servo drive control input | |
| Voltage state 1 guaranteed | >= 11 V auxiliary input |
| >= 11 V servo drive control input | |
| >= 2.4 V counter input | |
| Current state 1 guaranteed | > 3.5 mA servo drive control input |
| > 3.7 mA counter input | |
| > 6 mA auxiliary input | |
| Voltage state 0 guaranteed | <= 1.2 V auxiliary input |
| <= 1.2 V counter input | |
| <= 5 V servo drive control input | |
| Current state 0 guaranteed | < 1 mA auxiliary input |
| < 1 mA counter input | |
| < 1.5 mA servo drive control input | |
| Input impedance | 270 Ohm counter input |
| 3000 Ohm auxiliary input | |
| 3000 Ohm servo drive control input | |
| Number of outputs | 3 analogue output static |
| 3 reflex output static conforming to EN/IEC 61131 | |
| 3 servo drive validation output relay |
| Analogue output range | +/- 10...24 V |
| Analogue output resolution | 13 bits + sign |
| LSB value | 1.25 mV analogue output |
| Output voltage | 24 V DC reflex output |
| 24 V DC servo drive validation output | |
| Output voltage limits | 19...30 V reflex output |
| 5...30 V servo drive validation output | |
| Nominal output current | 0.5 A reflex output |
| Maximum output current | 1.5 mA analogue output |
| 200 mA servo drive validation output | |
| 625 mA reflex output | |
| Minimum load | 1 mA 1 V |
| Voltage drop | < 1 V at state on reflex output |
| Leakage current | < 0.3 mA reflex output |
| Switching time | < 5 ms for servo drive validation |
| < 500 µs for reflex output | |
| Output compatibility | Positive logic DC inputs (resistance <= 15 kOhm) reflex |
| Short-circuit protection | Current limiter reflex output |
| Thermal tripping reflex output | |
| Output overload protection | Current limiter reflex output |
| Thermal tripping reflex output | |
| Output overvoltage protection | Zener diode between outputs and 24 DC reflex output |
| Reverse polarity protection | Reverse diode on supply reflex output |
| Local signalling | 1 LED green module operating (RUN) |
| 1 LED red external fault (I/O) | |
| 1 LED red internal fault, module failure (ERR) | |
| 3 LEDs green axis diagnostics available | |
| Electrical connection | 1 connector HE-10 20 pins for servo drive ctrl inputs + for ext power supply of servo drive inputs/outputs |
| 1 connector SUB-D 9 for an analogue output (speed reference) | |
| 2 connectors HE-10 20 pins for aux inputs, reflex output, for external sensor and preactuator power supply | |
| 3 connectors SUB-D 15 for an incremental or absolute encoder | |
| Current consumption | 1500 mA 5 V DC |
| 30 mA 24 V DC | |
| 22...40 mA 24 V DC on 10/30 V absolute encoder module |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXCAY33 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXCAY33 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXCAY33, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty TSXCAY33 for credit when ordering from MRO Electric
The Schneider Electric TSXCAY33, motion control module, epitomizes precision and versatility. It is designed to cater to the intricate needs of industrial automation systems. Crafted by Schneider Electric, a global leader in automation solutions, this module sets a new standard for motion control excellence.
Schneider Electric, renowned for its cutting-edge automation technologies, introduces the TSXCAY33 motion control module, ensuring reliability and innovation in industrial automation. With a legacy of excellence, Schneider Electric delivers solutions that meet the highest industry standards.
The TSXCAY33 motion control module is a standard module-format motion control unit tailored for servo motors. It boasts many features, including a servo loop type proportional to overshoot compensation, gain switching in 4 milliseconds, and checks for consistency of commands, encoder coupling, servo drive presence, and emergency stop for proper movement execution.
Designed for servo motors, the TSXCAY33 motion control module is used in various applications, such as automated dispensing, robotic cutting, and material handling. Its flexibility and adaptability make it an indispensable component in different industrial settings.
Equipped with trapezoidal or parabolic speed profile paths, the TSXCAY33 module ensures smooth and precise motion control. With a resolution of up to 1000 position units per point and an acquisition speed of up to 270,000 points per minute, it offers unparalleled control over motion trajectories.
Built to withstand the rigors of industrial environments, the TSXCAY33 module features durable construction and adheres to stringent quality standards. It is compatible with absolute and incremental encoders, offering seamless integration into existing automation systems.
The TSXCAY33 module prioritizes safety and reliability with features such as servo drive validation output relay, current limiter, thermal tripping, reverse polarity protection, and local signaling LEDs for monitoring module operation and diagnostics.
Q: What is the Schneider Electric TSXCAY33 motion control module used for? A: The TSXCAY33 motion control module is designed for controlling servo motors in industrial automation applications such as automated dispensing, robotic cutting, and material handling.
Q: What are the key features of the TSXCAY33 motion control module? A: Some key features include servo loop type proportional to overshoot compensation, gain switching in 4 milliseconds, consistency checks for commands, encoder coupling, servo drive presence, emergency stop for proper movement execution, and compatibility with trapezoidal or parabolic speed profile paths.
Q: What type of servo motors is the TSXCAY33 module compatible with? A: The TSXCAY33 module is specifically designed for servo motors and is compatible with various types and models commonly used in industrial automation systems.
Q: What are the safety features of the TSXCAY33 motion control module? A: The TSXCAY33 module prioritizes safety with features such as servo drive validation output relay, current limiter, thermal tripping, reverse polarity protection, and local signaling LEDs for monitoring module operation and diagnostics.
Q: Is the TSXCAY33 motion control module easily integrated into existing systems? A: Yes, it is designed for seamless integration into existing automation systems and offers compatibility with absolute and incremental encoders, ensuring smooth operation and interoperability.
Q: What are some typical applications of the TSXCAY33 motion control module? A: Typical applications include automated dispensing of adhesives or sealants, robotic cutting of materials, material handling tasks, and other motion control applications where precise control and accuracy are required.
Q: Does the TSXCAY33 motion control module offer diagnostic capabilities? A: Yes, it features local signaling LEDs for monitoring module operation and diagnostics, allowing operators to identify any issues or abnormalities during operation quickly.
