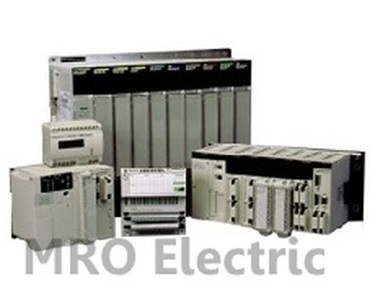

ANALOG OUTPUT MODULE - 4 OUTPUT - CURRENT, VOLTAGE - 11_BITS_+_SIGN
Available
Free Shipping
2 Year warranty
Part Number | TSXASY410C |
Manufacturer | Schneider Electric |
Type | CPUs |
Model # | TSX-ASY-410C |
Warranty | 2 Year |
Product weight | 0.2 kg |
Range of product | Modicon Premium Automation platform |
Product or component type | Analog output module |
Analogue output number | 4 |
Analogue output type | Current 0...20 mA |
Current 4...20 mA | |
Voltage +/- 10 V | |
Analog/Digital conversion | 11 bits + sign |
Conversion time | 2.5 ms |
Measurement resolution | 10.25 µA 0...20 mA |
10.25 µA 4...20 mA | |
5.12 mV +/- 10 V | |
Electrical connection | Screw terminal block |
Measurement error | 0.45 % of full scale +/- 10 V 25 °C |
0.52 % of full scale 0...20 mA 25 °C |
0.52 % of full scale 4...20 mA 25 °C | |
0.75 % of full scale +/- 10 V 0...60 °C | |
0.98 % of full scale 0...20 mA 0...60 °C | |
0.98 % of full scale 4...20 mA 0...60 °C | |
Isolation between channels | 1500 Vrms |
Isolation between channels and bus | 1500 Vrms |
Isolation between channels and | 500 V |
Protection type | Overload protection |
Short-circuit protection | |
Output voltage limits | <= 30 V |
Load impedance ohmic | < 600 Ohm 0...20 mA |
< 600 Ohm 4...20 mA | |
> 1000 Ohm +/- 10 V | |
Load inductance | < 0.3 mH |
Load capacitance | < 0.1 µF |
Marking | CE |
Current consumption | 900 mA 5 V DC |
Module format | Standard |
Terminals description PLC n°1 | (1)OUT_ANA_VOLT#0 |
(10)OUT_ANA_SHIELD# | |
(11)OUT_ANA_VOLT#2 | |
(12)OUT_ANA_COM#2 | |
(13)OUT_ANA_CUR#2 | |
(14)OUT_ANA_SHIELD# | |
(15)OUT_ANA_SHIELD# | |
(16)OUT_ANA_VOLT#3 | |
(17)OUT_ANA_COM#3 | |
(18)OUT_ANA_CUR#3 | |
(19)OUT_ANA_SHIELD# | |
(2)OUT_ANA_COM#0 | |
(20)OUT_ANA_SHIELD# | |
(3)OUT_ANA_CUR#0 | |
(4)OUT_ANA_SHIELD# | |
(5)OUT_ANA_SHIELD# | |
(6)OUT_ANA_VOLT#1 | |
(7)OUT_ANA_COM#1 | |
(8)OUT_ANA_CUR#1 | |
(9)OUT_ANA_SHIELD# |
