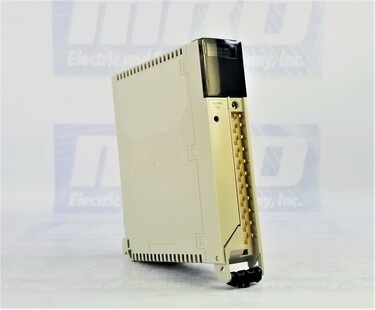

MODICON PREMIUM ANALOG OUTPUT MODULE- 4 O MULTIRANGE
| Part Number | TSXASY410 |
| Manufacturer | Schneider Electric |
| Type | Bases |
| Model # | TSX-ASY-410 |
| Warranty | 2 Year |
| Module format | Standard |
| Product or component type | Analog output module |
| Analogue output number | 4 |
| Analogue output type | Current 0...20 mA |
| Current 4...20 mA | |
| Voltage +/- 10 V | |
| Analog/Digital conversion | 11_BITS_+_SIGN |
| Conversion time | 2.5 ms |
| Measurement resolution | 5.12 mV +/- 10 V |
| 10.25 µA 0...20 mA | |
| 10.25 µA 4...20 mA | |
| Electrical connection | Screw terminal block |
| Measurement error | 0.45 % of full scale +/- 10 V 25 °C |
| 0.52 % of full scale 0...20 mA 25 °C | |
| 0.52 % of full scale 4...20 mA 25 °C | |
| 0.75 % of full scale +/- 10 V 0...60 °C | |
| 0.98 % of full scale 0...20 mA 0...60 °C | |
| 0.98 % of full scale 4...20 mA 0...60 °C | |
| Isolation between channels | 1500 Vrms |
| Isolation between channels and bus | 1500 Vrms |
| Isolation between channels and ground | 500 V |
| Protection type | Overload protection |
| Short-circuit protection | |
| Output voltage limits | <= 30 V |
| Load impedance ohmic | < 600 Ohm 0...20 mA |
| < 600 Ohm 4...20 mA | |
| > 1000 Ohm +/- 10 V | |
| Load inductance | < 300 µH |
| Load capacitance | < 0.1 µF |
| Marking | CE |
| Current consumption | 900 mA 5 V DC |
