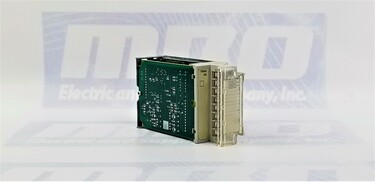

MODICON MICRO TSX MICRO - ANALOGUE 4 INPUT/2 OUTPUT
1 in stock
Ships Today
Free Shipping
2 Year warranty
| Part Number | TSXAMZ600 |
| Manufacturer | Schneider Electric |
| Type | CPUs |
| Model # | TSX-AMZ-600 |
| Warranty | 2 Year |
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Analogue I/O module |
| Number of channels | 4 input module |
| 2 output module | |
| Analogue input type | 0...10 V |
| 4...20 mA | |
| 0...20 mA | |
| +/- 10 V | |
| Analogue output type | 0...10 V |
| 4...20 mA | |
| +/- 10 V | |
| 0...20 mA | |
| Analog/Digital conversion | 11 bits 0...10 V 0...10 V |
| 11 bits 0...20 mA or 4...20 mA 0...20 mA or 4...20 mA | |
| 11 bits + sign +/- 10 V +/- 10 V | |
| Measurement resolution | 0...20 mA or 4...20 mA |
| 0...10 V or +/- 10 V | |
| Acquisition period | 16 ms 0...20 mA or 4...20 mA |
| 16 ms 0...10 V or +/- 10 V | |
| Response time | 400 µs +/- 10 V or 0...10 V |
| 400 µs 0...20 mA or 4...20 mA | |
| 400 µs +/- 10 V | |
| Output load | <= 0.6 Ohm 0...20 mA or 4...20 mA |
| >= 2 Ohm +/- 10 V or 0...10 V | |
| Protection type | Short-circuit +/- 10 V or 0...10 V |
| Short-circuit 0...20 mA or 4...20 mA | |
| Temperature drift | 0.107 %/10 °C 0...20 mA or 4...20 mA |
| 0.054 %/10 °C 0...20 mA or 4...20 mA | |
| 0.083 %/10 °C +/- 10 V or 0...10 V | |
| 0.068 %/10 °C 0...10 V or +/- 10 V | |
| Input impedance | 250 Ohm 0...20 mA or 4...20 mA |
| 2.2 Ohm 0...10 V or +/- 10 V | |
| Current consumption | 180 mA |
| Isolation voltage | 1000 V AC |
| Product weight | 0.24 kg |
| Sustainable offer status | Not Green Premium product |
| RoHS (date code: YYWW) | Compliant - since 0908 - Schneider Electric declaration of conformity |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXAMZ600 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXAMZ600 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXAMZ600, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty TSXAMZ600 for credit when ordering from MRO Electric
The Schneider Electric TSXAMZ600 is a versatile analog I/O module designed for the Modicon TSX Micro automation platform. It provides reliable performance for industrial automation applications. With its robust design, precise measurement capabilities, and comprehensive input/output options, this module is an ideal solution for managing analog signals in automation systems. Its lightweight construction and advanced features ensure seamless integration into existing setups while maintaining high efficiency and accuracy.
The TSXAMZ600 offers four analog input and two analog output channels, making it suitable for various applications. The inputs support various signal types, including 0...10 V, 4...20 mA, 0...20 mA, and ±10 V, ensuring compatibility with diverse sensor and actuator configurations. The outputs also accommodate the same signal types, enabling smooth control of connected devices.
This module provides 11-bit analog-to-digital conversion with excellent resolution, ensuring precise signal processing for critical operations. It features a measurement resolution optimized for different signal types. It boasts an acquisition period of 16 ms and a response time of 400 µs, making it suitable for applications requiring quick and accurate data handling.
The TSXAMZ600 is built to withstand demanding industrial environments, with features like short-circuit input and output signal protection. It maintains stability under varying temperature conditions, with minimal temperature drift, ensuring consistent performance across various operating environments. Its 1000 V AC isolation voltage provides additional safety, protecting connected devices and systems from electrical faults.
With a current consumption of 180 mA and compliance with RoHS standards, the TSXAMZ600 is energy-efficient and environmentally responsible. Although it is not classified as a Green Premium product, it adheres to Schneider Electric's high-quality standards for sustainability.
Weighing only 0.24 kg, the TSXAMZ600 is easy to handle and install. Its compact design makes it suitable for space-constrained installations, ensuring efficient use of control cabinet space without compromising performance.
What is the primary function of the TSXAMZ600 module?
The TSXAMZ600 is an analog I/O module that processes and converts analog signals for industrial automation systems.
How many input and output channels does the module have?
It features four analog input channels and two analog output channels.
What types of analog signals are supported?
The module supports 0...10 V, 4...20 mA, 0...20 mA, and ±10 V signal types for input and output.
What is the resolution of the analog-to-digital conversion?
The TSXAMZ600 offers 11-bit resolution, ensuring precise signal processing.
What is the module's response time?
The response time is 400 µs, making it suitable for fast and accurate data handling.
Does the module offer protection features?
Yes, it includes short-circuit protection for both input and output signals.
What is the power consumption of the module?
The module consumes 180 mA of current.
Is the TSXAMZ600 environmentally compliant?
Yes, it is RoHS-compliant, adhering to environmental standards for hazardous materials.
What is the module's isolation voltage?
The module has an isolation voltage of 1000 V AC, ensuring safety and reliability.
What warranty is provided with the TSXAMZ600?
The product comes with a 2-year warranty from MRO Electric and Supply.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry CPUs from other manufacturers such as Modicon and ABB.
