TSXAEY1600

2-year Warranty

Same Day Shipping

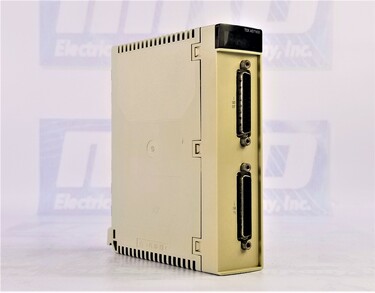

Schneider Electric TSXAEY1600

MODICON PREMIUM ANALOG INPUT MODULE- 16 I MULTIRANGE

5/5
2 ratings

Select Condition

Refurbished

3 in stock

New

1 in stock

$665.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberTSXAEY1600
ManufacturerSchneider Electric
TypeBases
Model #TSX-AEY-1600
Warranty2 Year
Module formatStandard
Product or component typeAnalog input module
Analogue input number16
Analogue input typeCurrent 4...20 mA
Current 0...20 mA
Voltage +/- 10 V
Voltage 0...10 V
Voltage 0...5 V
Voltage 1...5 V
Analog/Digital conversions12 bits
Isolation between channelsCommon point
Input levelHigh level
Nominal read cycle time51 ms
Fast read cycle time3 ms + 3 ms x number of channels used
Measurement error0.1 % of full scale +/- 10 V 25 °C
0.1 % of full scale 0...10 V 25 °C
0.1 % of full scale 0...5 V 25 °C
0.1 % of full scale 1...5 V 25 °C
0.13 % of full scale +/- 10 V 0...60 °C
0.13 % of full scale 0...10 V 0...60 °C
0.13 % of full scale 0...5 V 0...60 °C
0.13 % of full scale 1...5 V 0...60 °C
0.16 % of full scale 4...20 mA 25 °C
0.16 % of full scale 0...20 mA 25 °C
0.32 % of full scale 4...20 mA 0...60 °C
0.32 % of full scale 0...20 mA 0...60 °C
Isolation between channels and bus1000 Vrms
Isolation between channels and ground1000 Vrms
Common mode between channelsNone
Maximum overvoltage on input-30...30 V at state 1 250 kOhm
-15...15 V at state 0 250 kOhm
Electrical connection2 connectors SUB-D 25
Overcurrent-30...30 mA at state 1 250 kOhm
MarkingCE
Current consumption270 mA 5 V DC

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXAEY1600 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXAEY1600 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXAEY1600, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 41 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXAEY1600 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric TSXAEY1600 Overview

Schneider Electric TSXAEY1600 Analog Input Module: High-Performance Data Acquisition

The Schneider Electric TSXAEY1600 is a high-precision analog input module for industrial automation systems requiring accurate data acquisition. This standard-format module is engineered for applications that demand precise analog-to-digital conversion, making it ideal for manufacturing, process control, and energy management industries. With its ability to process multiple analog input types, including current (4-20 mA, 0-20 mA) and voltage (+/-10V, 0-10V, 0-5V, 1-5V), the TSXAEY1600 provides superior flexibility in connecting various sensors and measurement devices.

This analog input module supports 16 channels, each capable of converting analog signals into 12-bit digital data for accurate processing. The TSXAEY1600 ensures high-speed performance with a nominal read cycle time of 51 ms, while a fast read cycle mode allows for speeds as quick as 3 ms plus 3 ms per active channel. This efficiency makes it suitable for applications requiring rapid and precise data acquisition, such as temperature monitoring, pressure measurement, and industrial control systems.

Superior Accuracy and Isolation

One of the TSXAEY1600's key strengths is its high measurement accuracy. At 25°C, the module maintains an impressive 0.1% full-scale accuracy for voltage readings and 0.16% for current measurements. Even under extreme conditions ranging from 0°C to 60°C, it sustains an accuracy of 0.13% for voltage and 0.32% for current measurements, ensuring reliability across various industrial environments.

The TSXAEY1600 also features robust electrical isolation to enhance safety and signal integrity. It offers 1000 Vrms isolation between channels and the bus and channels and ground, reducing interference and protecting sensitive equipment from voltage fluctuations. Unlike analog input modules, this model operates with a common-point isolation configuration, ensuring consistency across multiple channels.

Connectivity and Electrical Specifications

The TSXAEY1600 is equipped with two SUB-D 25 connectors for seamless integration into industrial automation systems, allowing for secure and reliable electrical connections. It operates with a 5V DC power supply, consuming 270 mA of current, making it an energy-efficient solution for large-scale industrial automation projects. Additionally, it complies with CE marking standards, signifying its adherence to European safety and quality regulations.

Backed by a 2-year MRO Electric and Supply warranty, the TSXAEY1600 is built for long-term reliability and performance consistency in demanding industrial environments. Whether used in factory automation, power plants, or environmental monitoring systems, this module ensures precision and dependability in analog data acquisition.

Frequently Asked Questions (FAQs)

What is the primary function of the TSXAEY1600?

The Schneider Electric TSXAEY1600 is an analog input module that converts analog signals from sensors into digital data for industrial automation systems.

How many analog inputs does the TSXAEY1600 have?

This module supports 16 analog input channels, making it ideal for multi-point data acquisition applications.

What types of analog signals does it support?

The TSXAEY1600 supports current (4-20 mA, 0-20 mA) and voltage (+/-10V, 0-10V, 0-5V, 1-5V) inputs, allowing compatibility with various sensors and instruments.

What is the resolution of the analog-to-digital conversion?

The module provides 12-bit resolution, ensuring precise and accurate digital representation of analog signals.

What is the measurement accuracy of the TSXAEY1600?

At 25°C, the accuracy is 0.1% of full scale for voltage inputs and 0.16% for current inputs. At temperatures ranging from 0°C to 60°C, the accuracy remains within 0.13% for voltage and 0.32% for current measurements.

How fast is the read cycle time?

The nominal read cycle time is 51 ms, while in fast mode, it can achieve 3 ms + 3 ms per active channel, making it highly efficient for rapid data acquisition.

What type of isolation does the TSXAEY1600 provide?

The module features 1000 Vrms isolation between channels and the bus and channels and ground, ensuring protection against electrical noise and voltage surges.

What connectors does the module use for wiring?

The TSXAEY1600 has two SUB-D 25 connectors, ensuring secure and efficient connectivity in industrial control panels.

What is the power consumption of the TSXAEY1600?

The module operates on 5V DC and consumes 270 mA, making it energy-efficient while maintaining high performance.

Where can I purchase the TSXAEY1600?

The Schneider Electric TSXAEY1600 is available from MRO Electric and Supply.
