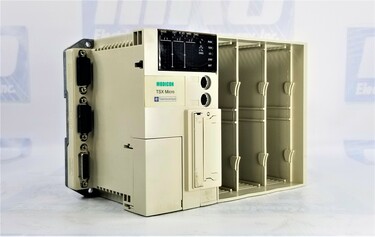

MODICON MICRO TSX MICRO 37 21/22 PLC CONFIGURATIONS
4 in stock
Ships Today
Free Shipping
2 Year warranty
| Part Number | TSX3722101 |
| Manufacturer | Schneider Electric |
| Type | CPUs |
| Model # | TSX-372-2101 |
| Warranty | 2 Year |
| Electromagnetic compatibility | Electrostatic discharge IEC 1000-4-2 level 3 |
| Electromagnetic field immunity test IEC 1000-4-3 level 3 | |
| Resistance to fast transient IEC 1000-4-4 level 3 | |
| Immunity to impulse waves IEC 1000-4-5 | |
| Damped oscillatory wave IEC 1000-4-12 | |
| Immunity to electromagnetic interference IEC 61131-2 | |
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Modular base controller |
| Primary voltage | 24 V 19.2...30 V DC |
| Input current | 2 mA < 60 A |
| Immunity to microbreaks | < 10 ms |
| Number of slots | 3 |
| Analogue input type | 0...10 V 8 |
| Analogue output type | 0...10 V 1 |
| Counting input type | Discrete incremental counter 1 10 Hz |
| Incremental 1 10 Hz | |
| Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s |
| 1 Modbus Modbus RTU 19.2 kbit/s | |
| Realtime clock | With |
| Memory description | Internal RAM 20 Kwords data |
| Internal RAM (with PCMCIA card) 128 Kwords program and data | |
| Internal RAM 128 Kwords data storage | |
| Flash 15 Kwords data |
| Maximum size of object areas | 256 %Mi |
| 1 %MWi internal words | |
| 128 %KWi constant words | |
| Execution time for 1 K instruction | 5.88 100 % Boolean without PCMCIA card |
| 4 100 % Boolean with PCMCIA card | |
| 0.266 65 % Boolean and 35 % numerical with PCMCIA card | |
| Application structure | 1 fast task |
| 1 master task | |
| 16 event tasks | |
| System overhead | 2.3 ms master task |
| Protection type | Overload protection |
| Short-circuit | |
| Total useful secondary power | 16 W |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSX3722101 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSX3722101 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSX3722101, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty TSX3722101 for credit when ordering from MRO Electric
The Schneider Electric TSX3722101 is a highly reliable and versatile CPU unit from the Modicon TSX Micro automation platform, designed to manage a wide range of industrial automation applications. This modular base controller is well-suited for handling complex automation processes in various industries, including manufacturing, energy, and utilities. It combines advanced features such as high-speed processing, memory flexibility, and robust communication interfaces, making it valuable in modern industrial control systems.
The TSX3722101 is part of Schneider Electric’s Modicon TSX Micro automation platform, known for its modular design and scalability. It allows users to build customized automation systems by integrating various modules, making it adaptable for both small- and large-scale applications. The platform's plug-and-play modularity ensures easy installation, maintenance, and expansion.
This CPU unit operates on a 24 V DC power supply, with a wide voltage range of 19.2 V to 30 V DC, ensuring stability in diverse industrial environments. It has an input current capacity of 2 mA under normal conditions and can handle peak inrush currents of up to 60 A, making it capable of withstanding demanding electrical conditions. Additionally, the TSX3722101 provides immunity to microbreaks of less than 10 ms, ensuring smooth operation even during minor power fluctuations.
The TSX3722101 is designed with advanced electromagnetic compatibility (EMC) features, providing high levels of resistance to electrostatic discharge (IEC 1000-4-2 level 3), electromagnetic field immunity (IEC 1000-4-3 level 3), and fast transients (IEC 1000-4-4 level 3). The unit is also resistant to impulse waves (IEC 1000-4-5) and damped oscillatory waves (IEC 1000-4-12), ensuring its resilience in electrically noisy environments, such as those found in industrial plants.
This CPU controller comes with integrated communication interfaces, including a serial link (TER/AUX) that supports the Uni-Telway protocol at 19.2 kbit/s and a Modbus RTU interface at 19.2 kbit/s. These interfaces enable seamless communication with other automation devices and systems, making the TSX3722101 an ideal solution for complex automation networks that require real-time data exchange.
The TSX3722101 provides substantial memory capacity to meet diverse application requirements. It features an internal RAM of 20 Kwords for data and supports up to 128 Kwords for program and data storage when paired with a PCMCIA card. This makes the controller suitable for handling large and complex programs, ensuring fast and efficient processing. The CPU also includes 15 Kwords of flash memory for additional data storage, allowing for data retention even during power outages.
The unit delivers impressive execution times for various programming tasks. Without a PCMCIA card, it can execute 1 K Boolean instructions in 5.88 ms, while with the card, this time reduces to 4 ms. The CPU’s performance further improves for mixed Boolean and numerical operations, handling these instructions in just 0.266 ms when using a PCMCIA card, ensuring high-speed and accurate process control.
Schneider Electric has equipped the TSX3722101 with multiple protection features, including overload and short-circuit protection. This ensures the unit can withstand electrical faults without sustaining damage, contributing to its longevity and reliability. Additionally, it offers a total useful secondary power of 16 W, which can be distributed among connected modules.
The TSX3722101 supports a comprehensive application structure with one fast task, one master task, and 16 event tasks. The master task has a system overhead time of just 2.3 ms, ensuring swift and efficient execution of control functions.
The Schneider Electric TSX3722101 comes with a 2-year MRO Electric and Supply warranty, providing peace of mind and ensuring high-quality performance. Free shipping is also offered, adding value and convenience for industrial customers.
What kind of power supply does the TSX3722101 require?
The TSX3722101 requires a 24 V DC power supply with an acceptable voltage range of 19.2 V to 30 V DC.
What communication protocols does this CPU support?A2: The TSX3722101 supports Uni-Telway and Modbus RTU communication protocols, operating at 19.2 kbit/s, making it ideal for integrating into industrial automation networks.
How much memory does the TSX3722101 provide?
The TSX3722101 features 20 Kwords of internal RAM for data, up to 128 Kwords of program and data memory with a PCMCIA card, and 15 Kwords of flash memory for additional data storage.
What protection features are included in the TSX3722101?
The TSX3722101 has overload and short-circuit protection, ensuring durability and reliability under challenging operating conditions.
Can this CPU handle high-speed process control?
The TSX3722101 offers fast execution times for Boolean and mixed Boolean/numerical tasks, ensuring high-speed and efficient process control.
What is the warranty on the TSX3722101?
The TSX3722101 comes with a 2-year MRO Electric and Supply warranty, ensuring reliability and customer satisfaction.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like TSX3722101, take a look at more from our CPUs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our TSX3722101 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
