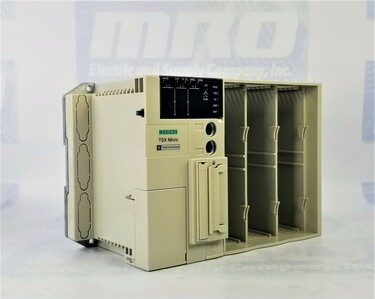

MODICON MICRO 37 21/22 PLC CONFIGURATIONS
| Part Number | TSX3721001 |
| Manufacturer | Schneider Electric |
| Type | CPUs |
| Model # | TSX-372-1001 |
| Warranty | 2 Year |
| Electromagnetic compatibility | Electrostatic discharge IEC 1000-4-2 level 3 |
| Electromagnetic field immunity test IEC 1000-4-3 level 3 | |
| Resistance to fast transient IEC 1000-4-4 level 3 | |
| Immunity to impulse waves IEC 1000-4-5 | |
| Damped oscillatory wave IEC 1000-4-12 | |
| Immunity to electromagnetic interference IEC 61131-2 | |
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Modular base controller |
| Primary voltage | 100...240 V 90...264 V AC |
| Input current | 2 mA < 60 A |
| Immunity to microbreaks | < 20 ms |
| Output current | 0.5 A |
| Number of slots | 3 |
| Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s |
| 1 Modbus Modbus RTU 19.2 kbit/s | |
| Realtime clock | With |
| Memory description | Internal RAM 20 Kwords data |
| Internal RAM (with PCMCIA card) 128 Kwords program and data | |
| Internal RAM 128 Kwords data storage | |
| Flash 15 Kwords data | |
| Maximum size of object areas | 256 %Mi |
| 1 %MWi internal words | |
| 128 %KWi constant words | |
| Execution time for 1 K instruction | 5.88 100 % Boolean without PCMCIA card |
| 0.27 65 % Boolean and 35 % numerical without PCMCIA card | |
| 4 100 % Boolean with PCMCIA card | |
| 0.266 65 % Boolean and 35 % numerical with PCMCIA card | |
| Application structure | 1 fast task |
| 1 master task | |
| 16 event tasks | |
| System overhead | 1.6 ms master task |
| Protection type | Overload protection |
| Short-circuit | |
| Total useful secondary power | 16 W |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSX3721001 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSX3721001 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSX3721001, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty TSX3721001 for credit when ordering from MRO Electric
What are the part numbers for the software and cabling for the TSX3721001?
The Schneider Electric TSX-372-1001 is a sophisticated modular base controller designed for the Modicon TSX Micro automation platform. Renowned for its reliability and versatility, this CPU is tailored to handle various industrial automation applications. It offers robust performance, advanced features, and superior integration capabilities, making it an ideal choice for different automation needs. With a 2-year MRO Electric and Supply warranty and free shipping, the TSX-372-1001 provides a cost-effective solution for enhancing industrial control systems.
The TSX-372-1001 CPU is engineered to withstand challenging industrial environments, ensuring reliable operation and minimal downtime. It complies with various IEC standards for electromagnetic compatibility, including IEC 1000-4-2 level 3 for electrostatic discharge, IEC 1000-4-3 level 3 for electromagnetic field immunity, IEC 1000-4-4 level 3 for resistance to fast transients, and IEC 1000-4-5 for immunity to impulse waves. Additionally, it is tested for damped oscillatory wave immunity (IEC 1000-4-12) and meets the IEC 61131-2 standard for immunity to electromagnetic interference. These certifications demonstrate the controller's resilience against electrical disturbances, ensuring dependable operation even in electrically noisy environments.
This controller operates within a broad input voltage range of 100 to 240 V AC (90 to 264 V AC), making it compatible with diverse power sources. It has a low input current requirement of 2 mA and can withstand high inrush currents of up to 60 A, ensuring smooth startup in various electrical environments. The TSX-372-1001 CPU protects against overloads and short circuits, safeguarding the controller and connected equipment. Additionally, it offers immunity to microbreaks of less than 20 ms, providing reliable performance during brief power interruptions.
The TSX-372-1001 boasts significant memory capabilities, enhancing data processing and storage. It includes 20 Kwords of internal RAM for data, 128 Kwords of internal RAM for data storage, and 15 Kwords of flash memory for data retention. With the addition of a PCMCIA card, it can expand to 128 Kwords of program and data memory, making it highly adaptable for complex applications. The controller's processing power is evident in its fast execution times, ranging from 5.88 ms for 100% Boolean tasks without a PCMCIA card to as low as 0.266 ms for mixed Boolean and numerical tasks with a PCMCIA card.
The TSX-372-1001 is equipped with multiple integrated connection types, including one serial link (TER/AUX) Uni-Telway at 19.2 kbit/s and one Modbus RTU at 19.2 kbit/s, allowing for seamless communication with other devices and systems. It supports a comprehensive application structure featuring one fast task, one master task, and 16 event tasks, ensuring efficient task management and execution. The controller's system overhead is optimized with a master task overhead of 1.6 ms, providing swift response times and enhancing overall system performance.
The TSX-372-1001 CPU is designed for durability, incorporating overload and short-circuit protection to prevent damage and extend its lifespan. Its total useful secondary power output of 16 W ensures sufficient energy distribution to connected components, contributing to a reliable and energy-efficient system.
The Schneider Electric TSX-372-1001 is a versatile, high-performance modular base controller designed for demanding industrial automation environments. Its robust design, comprehensive connectivity, substantial memory capacity, and fast processing speeds make it an excellent choice for enhancing control and automation systems. Offering a 2-year warranty and free shipping provides peace of mind and added value for end-users looking for a reliable and efficient automation solution.
1. What is the Schneider Electric TSX-372-1001 CPU used for?
The TSX-372-1001 is a modular base controller designed for the Modicon TSX Micro automation platform. It is used in various industrial automation applications to control processes, manage data, and communicate with other devices. Its robust design and wide range of features make it ideal for handling complex tasks in manufacturing, process control, and other industrial environments.
2. What are the memory capabilities of the TSX-372-1001 CPU?
This CPU offers significant memory capacity, including 20 Kwords of internal RAM for data, 128 Kwords of internal RAM for data storage, and 15 Kwords of flash memory for data retention. A PCMCIA card can expand to 128 Kwords of program and data memory, supporting complex applications and large data sets.
3. What types of connectivity does the TSX-372-1001 support?
The TSX-372-1001 provides multiple connectivity options, including one serial link (TER/AUX) Uni-Telway at 19.2 kbit/s and one Modbus RTU at 19.2 kbit/s. These connections allow the controller to communicate efficiently with other devices and systems in the automation environment, facilitating data exchange and control.
4. What protection features are included with the TSX-372-1001 CPU?
The CPU is designed with overload and short-circuit protection to prevent damage and extend its lifespan. It also complies with various IEC standards for electromagnetic compatibility, ensuring it can operate reliably in electrically noisy environments. These protection features help maintain system stability and reduce downtime.
5. How does the TSX-372-1001 handle power interruptions?
The TSX-372-1001 CPU is immune to microbreaks of less than 20 ms, which means it can operate effectively during brief power interruptions. This feature is crucial in industrial environments where power fluctuations occur, ensuring minimal disruption to operations.
6. What are the processing capabilities of the TSX-372-1001 CPU?
The TSX-372-1001 offers fast processing speeds with execution times ranging from 5.88 ms for 100% Boolean tasks without a PCMCIA card to as low as 0.266 ms for mixed Boolean and numerical tasks with a PCMCIA card. This rapid processing capability enables it to handle complex control tasks efficiently.
7. Is the TSX-372-1001 CPU suitable for high-performance applications?
The TSX-372-1001 is well-suited for high-performance applications due to its extensive memory capacity, fast processing speeds, and robust design. Its ability to manage multiple tasks and events simultaneously makes it ideal for use in demanding automation scenarios.
8. Does the TSX-372-1001 come with a warranty?
Yes, the TSX-372-1001 CPU comes with a 2-year MRO Electric and Supply warranty, providing peace of mind and quality assurance. Additionally, this product offers free shipping.
9. What makes the TSX-372-1001 CPU a reliable choice for industrial automation?
The TSX-372-1001 CPU is reliable due to its robust construction, comprehensive connectivity options, extensive memory, and fast processing speeds. It is designed to withstand harsh industrial conditions and ensure consistent performance, making it ideal for various automation applications.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like TSX3721001, take a look at more from our CPUs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our TSX3721001 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
