Schneider Electric TSX3710101

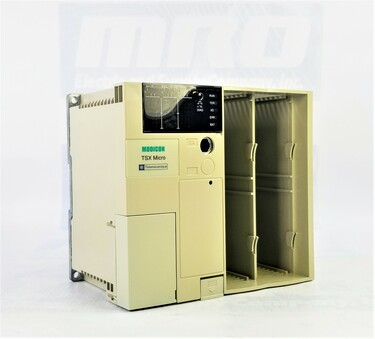

TSX Micro 37 21/22 PLC TSX3710101

The TSX Micro 37 21/22 PLC configurations, encompassing the TSX3710101 and TSX3722001 models, are integral components of the Modicon TSX Micro automation platform by Schneider Electric. These modular base controllers represent a versatile solution for automation and control applications, offering a range of features that cater to diverse industrial needs.

Product Specifications:

• Power Supply:
• The controllers support a primary voltage range of 100 to 240 V AC, ensuring compatibility with various power systems. The input current ranges from 2 mA to 60 A, allowing flexibility in different operational scenarios. The controllers exhibit immunity to microbreaks with a response time of 20 ms.
• Output Capacity:
• With a maximum output current of 0.5 A, these controllers provide ample power to drive connected devices and equipment.
• Modularity:
• The controllers feature three slots, enabling users to customize and expand their automation setup by adding compatible modules.
• Analog and Digital Inputs/Outputs:
• The TSX Micro controllers offer 8 analog input slots with a range of 0 to 10 V and 1 analog output slot supporting 0 to 10 V. Additionally, there is a discrete incremental counter input with a counting speed of 10 Hz.
• Communication Interfaces:
• These controllers come equipped with versatile communication interfaces, including 1 serial link (TER/AUX) Uni-Telway at 19.2 kbit/s and 1 Modbus Modbus RTU at 19.2 kbit/s, facilitating seamless integration into diverse industrial networks.
• Memory and Execution Time:
• The controllers boast Flash memory with a capacity of 15 Kwords for data storage and internal RAM of 20 Kwords. With a PCMCIA card, the internal RAM can be expanded to 128 Kwords for program and data storage. The execution time per instruction ranges from 0.13 µs for Boolean operations to 4.5 µs for arithmetic REAL floating operations.
• Application Structure:
• The controllers support a flexible application structure, allowing for 1 fast task, 16 event tasks, and 1 master task. The system overhead for the master task is 2.3 ms.

Environmental Specifications:

• Operating Conditions:
• The controllers operate within an ambient air temperature range of 32 to 140 °F (0 to 60 °C) and can be stored in conditions ranging from -13 to 158 °F (-25 to 70 °C). They exhibit resilience to a wide range of environmental factors, including relative humidity from 10% to 95% without condensation.
• Physical Dimensions and Weight:
• The compact design of the controllers is reflected in their dimensions—13.44 inches in width, 5.94 inches in height, and 5.98 inches in depth. The product weighs 3.86 pounds (1.75 kg), making it lightweight and easy to integrate into industrial setups.

Electromagnetic Compatibility and Network Frequency:

The controllers adhere to stringent electromagnetic compatibility standards, ensuring resilience to electrostatic discharge, electromagnetic fields, fast transients, impulse waves, and damped oscillatory waves. They operate at a network frequency of 50 to 60 Hz.

FAQs about TSX Micro 37 21/22 PLC Configurations (TSX3710101 and TSX3722001):

What distinguishes the TSX Micro 37 21/22 PLC configurations from other automation platforms?

The TSX Micro 37 21/22 PLC configurations are part of the Modicon TSX Micro automation platform by Schneider Electric. They stand out due to their modular design, versatile input/output options, and communication interfaces, offering a flexible solution for various industrial automation needs.

Can I expand the capabilities of the TSX Microcontrollers?

Yes, the controllers feature three slots, allowing users to expand and customize their automation setup by adding compatible modules. This modularity ensures scalability and adaptability to changing automation requirements.

What communication protocols are supported by the TSX Microcontrollers, and how can they be integrated into industrial networks?

The controllers support 1 serial link (TER/AUX) Uni-Telway at 19.2 kbit/s and 1 Modbus Modbus RTU at 19.2 kbit/s. This enables seamless integration into diverse industrial networks, making them suitable for a wide range of applications.

How resilient are the TSX Microcontrollers to environmental factors and electromagnetic interference?

The controllers demonstrate robust environmental resilience, operating within a wide temperature range of 32 to 140 °F (0 to 60 °C) and exhibiting resistance to factors such as electrostatic discharge, electromagnetic fields, fast transients, impulse waves, and damped oscillatory waves. These features ensure reliable performance in demanding industrial environments.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry CPUs from other manufacturers such as Modicon and ABB.
