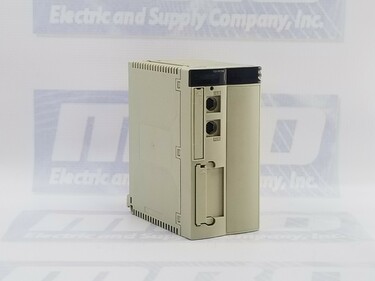

MODICON PREMIUM UNITY PROCESSOR - 8 RACKS (12 SLOTS)/16 RACKS (4/6/8 SLOTS) - 850 MA 5 V DC
| Part Number | TSX-P57-204M |
| Manufacturer | Schneider Electric |
| Type | CPUs |
| Model # | TSXP57204M |
| Warranty | 2 Year |
| Product weight | 0.42 kg |
| Range of product | Modicon Premium Automation platform |
| Product or component type | Unity processor |
| Software designation | Unity Pro |
| Number of racks | 16 4/6/8 slots |
| 8 12 slots | |
| Number of slots | <= 128 |
| Discrete I/O processor capacity | 1024 I/O |
| Analogue I/O processor capacity | 80 I/O |
| Number of application specific channel | <= 24 |
| Number of process control channel | <= 10 up to 30 simple loops |
| Integrated connection type | Non isolated serial link 2 female mini DIN RS485 19.2 kbit/s |
| Communication module processor | 1 |
| 4 | |
| Memory description | Internal RAM (with PCMCIA card) 160 kB data |
| Internal RAM (with PCMCIA card) 768 kB program | |
| Internal RAM (without PCMCIA card) 160 kB program and data | |
| PCMCIA card 16384 kB additional data storage | |
| Maximum size of object areas | 64 %KWi constant words located internal data |
| 64 %MWi internal words located internal data | |
| 64 kB (DFB and EFB function blocks) unlocated internal data | |
| 64 kB (elementary and derived data) unlocated internal data | |
| 8132 %Mi located internal bits | |
| Application structure | 64 event tasks |
| 1 master task | |
| 1 fast task | |
| Execution time per instruction | 0.19 µs Boolean without PCMCIA card |
| 0.25 µs word or fixed-point arithmetic without PCMCIA card |
| 1.75...2.6 µs floating points with PCMCIA card | |
| 1.75...2.6 µs floating points without PCMCIA card | |
| 0.21 µs Boolean with PCMCIA card | |
| Number of instructions per ms | 2.53 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card |
| 3.7 Kinst/ms 100 % Boolean with PCMCIA card | |
| 3.71 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card | |
| 4.76 Kinst/ms 100 % Boolean without PCMCIA card | |
| System overhead | 0.3 ms fast task |
| 1 ms master task | |
| Marking | CE |
| Local signalling | 1 LED green processor running (RUN) |
| 1 LED red I/O module or configuration fault (I/O) | |
| 1 LED red processor or system fault (ERR) | |
| 1 LED yellow activity on TER or AUX terminal port (TER) | |
| Current consumption | 850 mA 5 V DC |
| Module format | Double |
