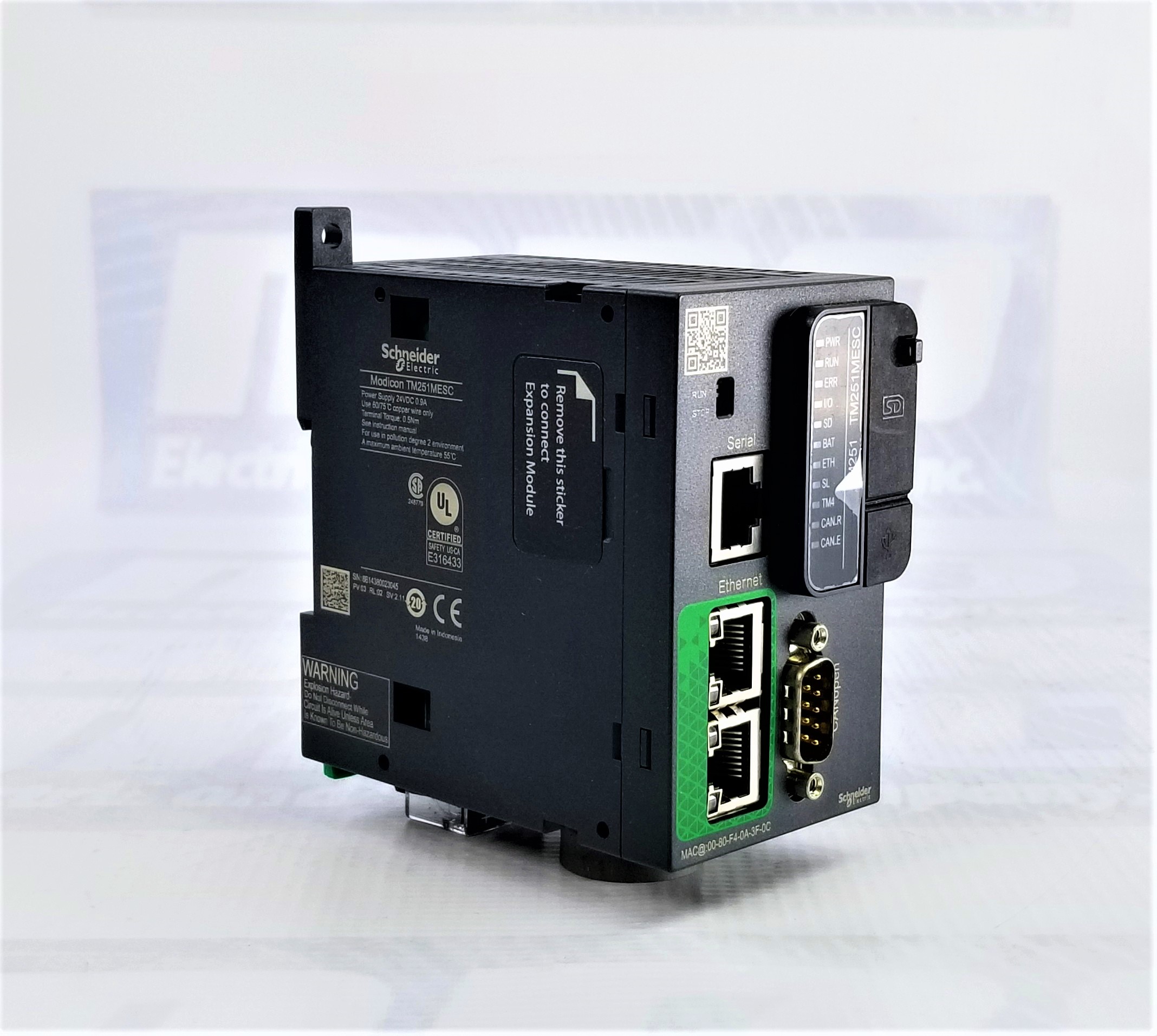

MODICON COMMUNICATION M251 ETHERNET CAN LOGIC CONTROLLER, 24 VDC, 40.4W
2 in stock
Free Shipping
2 Year warranty
| Part Number | TM251MESC |
| Manufacturer | Schneider Electric |
| Type | Communications |
| Warranty | 2 Year |
| Range | Modicon M251 |
| Category | Logic controller |
| Local signalling | for PWR 1 LED (green) |
| for RUN 1 LED (green) | |
| for module error (ERR) 1 LED (red) | |
| for I/O error (I/O) 1 LED (red) | |
| for SD card access (SD) 1 LED (green) |
| for BAT 1 LED (red) | |
| for Ethernet port activity 1 LED (green) | |
| for SL 1 LED (green) | |
| for bus fault on TM4 (TM4) 1 LED (red) | |
| for CANopen run 1 LED (green) | |
| for CANopen error 1 LED (green) | |
| Supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V |
| Inrush current | 50 A |
| Memory capacity | 8 MB program 64 MB system memory RAM |
| Maximum number of I/O expansion module | 7 (local I/O-Architecture) 14 (remote I/O-Architecture) |
| Power consumption in W | 32.6…40.4 W with max number of I/O expansion module) |
| Battery type | BR2032 lithium non-rechargeable 4 year(s) |
| Application structure | 3 cyclic master tasks + 1 freewheeling task 8 event tasks 4 cyclic master tasks 8 external event tasks |
| Communication port protocol | USB port USB - SoMachine-Network Non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network |
| Port Ethernet | Ethernet 10BASE-T/100BASE-TX - 2 copper cable |
| Communication service | DHCP client Downloading Ethernet/IP slave device IEC VAR ACCESS Modbus TCP client Modbus TCP server Modbus TCP slave device Monitoring NGVL Programming Updating firmware SMS notifications FTP client/server SNMP client/server SQL client Send and receive email from the controller based on TCP/UDP library Web server (WebVisu & XWeb system) OPC UA server DNS client |
| Marking | CE |
| Height | 3.54 in |
| Width | 2.13 in |
| Depth | 3.74 in |
| Net Weight | 0.49 lb |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TM251MESC to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TM251MESC we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TM251MESC, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty TM251MESC for credit when ordering from MRO Electric
The Schneider Electric TM251MESC is a versatile logic controller from the Modicon M251 range. It is designed to provide advanced control and communication capabilities for industrial automation applications. With robust connectivity features and efficient processing power, it is ideal for modern, networked automation systems.
The controller operates on a 24 V DC power supply, with limits between 20.4 V and 28.8 V, ensuring compatibility with standard industrial setups. It supports an inrush current of 50 A and consumes between 32.6 W and 40.4 W depending on the number of connected I/O expansion modules.
The TM251MESC features 8 MB of program memory and 64 MB of RAM system memory, ensuring sufficient capacity for complex tasks. It accommodates up to 7 local I/O modules and 14 remote I/O modules, offering flexibility in diverse architectures. The application supports three cyclic master tasks, one freewheeling task, eight event tasks, and four cyclic master tasks, providing comprehensive multitasking capabilities.
This controller is equipped with advanced communication ports and protocols, including:
With dimensions of 3.54 in (H) x 2.13 in (W) x 3.74 in (D) and a lightweight design of 0.49 lbs, the TM251MESC is easy to integrate into existing control panels.
1. What is the power supply requirement for the TM251MESC?
The controller requires a 24 V DC power supply, operating within 20.4 V to 28.8 V limits.
2. How many I/O expansion modules can be connected?
It supports seven local I/O modules and up to 14 remote I/O modules in a remote architecture.
3. Does the device support web server functionality?
The controller includes a web server that uses WebVisu and XWeb systems for remote monitoring and configuration.
4. What type of battery does it use?
The TM251MESC uses a BR2032 lithium battery with a lifespan of 4 years.
5. What are the Ethernet port specifications?
The device has two Ethernet 10BASE-T/100BASE-TX ports for high-speed data transfer.
6. Does it support Modbus protocols?
The controller supports Modbus TCP client/server and Modbus RTU/ASCII protocols.
7. Can it send email notifications?
The TM251MESC can send and receive emails using a TCP/UDP library.
8. What is the inrush current?
The controller allows an inrush current of 50 A, ensuring robust startup performance.
9. Is the TM251MESC CE-marked?
Yes, the product is CE-marked, ensuring compliance with industrial safety standards.
10. What is its application structure?
The TM251MESC supports three cyclic master tasks, one freewheeling task, and eight event tasks for optimal process control.
This controller combines advanced communication, compact design, and powerful processing to meet the demands of modern industrial automation systems.
