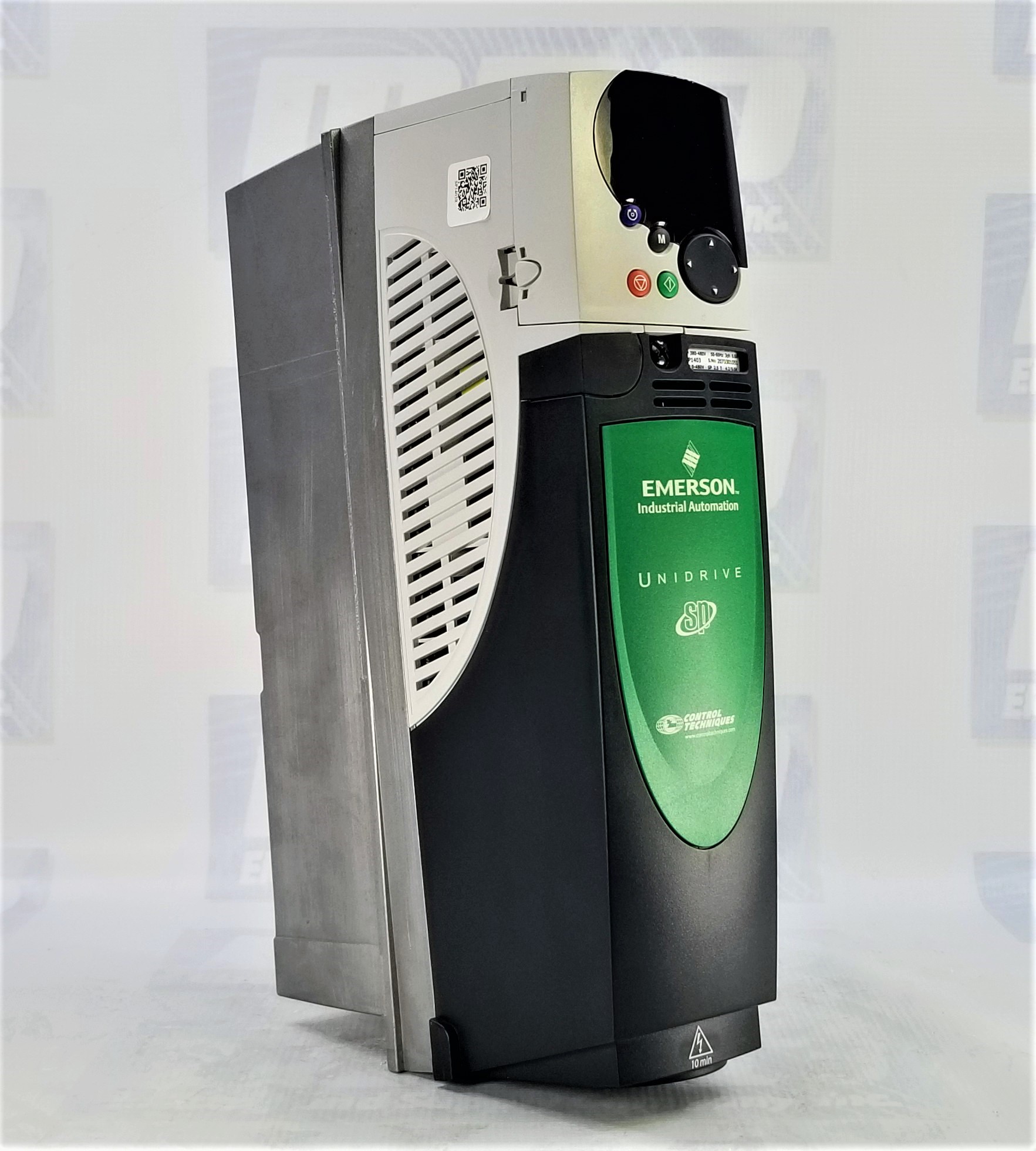

Control Techniques SP1403 AC Drive – Detailed Description

Overview

The Control Techniques SP1403 AC Drive is an advanced, compact, highly efficient drive system for small to medium-sized motor control applications. Built for performance and reliability, this AC drive is suitable for various industrial settings requiring precision in motor management. It is part of the Unidrive SP family and is known for offering a broad range of capabilities, robust design, and adaptability to different power and operational requirements. With its high-end features, the SP1403 delivers smooth and optimized motor control, ensuring enhanced efficiency in industrial processes.

Motor Power and Performance

The SP1403 performs excellently, supporting motor output power up to 3 HP (2.2 kW) in normal duty mode. For more demanding tasks, the drive can operate in heavy-duty mode with a motor output power of 1.5 HP (1.5 kW), making it ideal for challenging environments that require higher torque or more rigorous applications. This flexibility allows users to tailor their motor control to specific needs, ensuring that the drive can handle both standard and intensive tasks with precision.

Input Voltage and Current Capacity

Operating within an input voltage range of 380-480 VAC, the SP1403 is designed for medium-voltage applications commonly found in industrial and commercial settings. It provides a stable and reliable power source to motors, ensuring optimal performance across various processes.

For normal duty operation, the drive can sustain a maximum continuous current of 5 A, while in heavy-duty mode, it can maintain up to 4.2 A. This feature gives the SP1403 the capacity to handle significant loads while maintaining operational stability, making it highly adaptable to different industrial environments.

Frame Size and Installation

With a Frame Size of 1, the SP1403 AC drive is compact and easy to install. Its small footprint allows it to fit into limited spaces while still providing powerful motor control. The drive's engineered to maintain optimal thermal performance also reduces the need for additional cooling systems. Whether being retrofitted into an existing system or installed in a new setup, the SP1403's design simplifies the process, reducing downtime and installation costs.

Heavy Duty Capabilities

The SP1403 shines in environments that demand high performance and increased durability. Operating in heavy-duty mode, the drive delivers up to 1.5 HP (1.5 kW) of motor output power while maintaining a maximum continuous current of 4.2 A. This makes it ideal for applications that require frequent torque spikes or higher levels of mechanical stress, such as conveyor belts, mixers, or pumps. The heavy-duty capability ensures that your operations can handle more demanding tasks without compromising efficiency or reliability.

Applications and Use Cases

The Control Techniques SP1403 is ideally suited for a wide range of applications that require fine-tuned motor control, including conveyors, fans, pumps, and compressors. It offers exceptional control over AC motors, improving overall energy efficiency and reducing operational costs. Its dual-mode operation allows it to be adapted to both light and heavy-duty tasks, ensuring versatility across industries.

Warranty and Support

When purchasing the SP1403 from MRO Electric and Supply, customers receive a 2-year warranty, ensuring peace of mind and long-term reliability. Also, free shipping is provided, making obtaining this highly efficient AC drive for your industrial needs even more accessible. With trusted customer support and a strong reputation in the industry, MRO Electric ensures that your investment is well-protected and fully supported.

Frequently Asked Questions (FAQs) for Control Techniques SP1403 AC Drive

What is the typical motor output power for the Control Techniques SP1403?

The typical motor output power for the Control Techniques SP1403 is 3 HP (2.2 kW) for normal duty and 1.5 HP (1.5 kW) for heavy-duty operations.

What input voltage does the SP1403 support?

The SP1403 supports an input voltage range of 380 - 480 VAC, making it suitable for various industrial applications requiring medium voltage inputs.

What is the maximum continuous current for normal duty?

For normal duty operation, the maximum continuous current of the SP1403 is 5 A.

What is the maximum continuous current for heavy duty?

In heavy-duty operation, the maximum continuous current of the SP1403 is 4.2 A.

What is the frame size of the Control Techniques SP1403?

The SP1403 has a Frame Size 1, which is compact and designed for easy installation in confined spaces.

What type of applications is the SP1403 suited for?

The SP1403 AC drive is ideal for applications requiring precise control of small to medium-sized motors, such as conveyor systems, pumps, and fans.

Does the SP1403 come with a warranty?

The SP1403 has a 2-year MRO Electric and Supply warranty, ensuring reliability and support.

Is free shipping available for this product?

Yes, MRO Electric and Supply offers free shipping on the Control Techniques SP1403, which adds further value to the purchase.
