Control Techniques SP1204

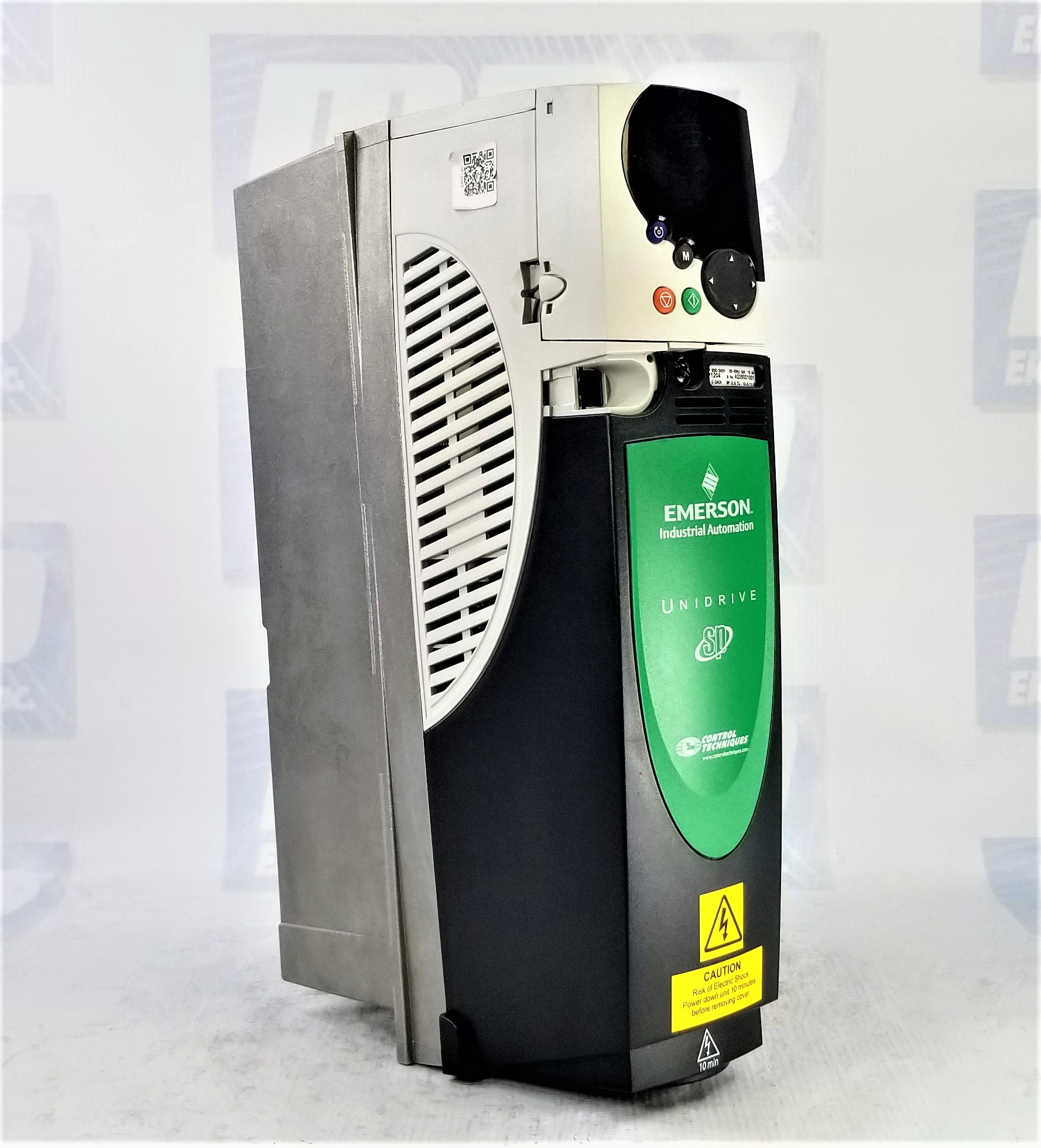

Control Techniques SP1204: Unidrive SP 200V AC Panel Mount Drive for Precise Motor Control

The Control Techniques SP1204, a member of the Unidrive SP series, represents a pinnacle in the realm of motor control within industrial automation. As a 200V AC Panel Mount Drive, the SP1204 is designed to offer unparalleled performance, reliability, and versatility, making it an indispensable component across diverse industrial applications.

Product Type Information

Belonging to the Unidrive SP series, the SP1204 exemplifies Control Techniques' commitment to cutting-edge control solutions. As a member of the Unidrive SP family, it is engineered to meet the exacting demands of precision motor control in modern industrial environments, ensuring optimal performance and adaptability.

Electrical Characteristics

The SP1204 operates with a maximum continuous input current of 19.1 A in a 3-phase configuration, providing a robust foundation for motor control. Incorporating IEC gG fuses rated at 20 A, the drive ensures the safety and protection of both the drive unit and connected systems by effectively mitigating electrical faults and overloads.

Cable Sizing and Compatibility

Versatility is a hallmark of the SP1204, as reflected in its support for different cable sizes adhering to international standards. According to EN60204, the input demands a cable size of 4.0, while the output requires a cable size of 1.5. For compliance with UL508C, the specified cable sizes are 2 for input and 14 for output. This adaptability in cable sizing enhances the drive's suitability for a wide array of installation environments, providing flexibility and ease of integration.

Performance under Normal Duty

Under normal duty conditions, the SP1204 showcases its prowess with a maximum continuous output current of 11 A. Operating at 220V, it delivers a nominal power of 3.0 kW and a motor power of 3.0 hp at 230V. This level of performance ensures consistent and efficient operation, making it an ideal choice for applications with regular operational demands, such as conveyor systems, packaging machinery, and more.

Performance under Heavy Duty

In heavy-duty scenarios, the SP1204 remains a stalwart performer with a maximum continuous output current of 10.6 A. At 220V, it achieves a nominal power of 2.2 kW and maintains a motor power of 3.0 hp at 230V. This dual-mode capability allows the drive to seamlessly adapt to varying operational requirements, making it suitable for demanding applications, including high-torque machinery, extruders, and other heavy-duty industrial processes.

Application Versatility

The versatility of the SP1204 extends beyond its electrical specifications. It is well-suited for a wide range of applications, thanks to its ability to switch between normal and heavy-duty modes. This adaptability makes it an ideal choice for industries with dynamic operational needs, where precision and reliability are paramount.

FAQs for Control Techniques SP1204 AC Drive

1. What is the input voltage range for the SP1204 AC Drive?
The SP1204 operates with an input voltage range of 200–240 VAC, suitable for standard low-voltage industrial power systems.

2. What is the maximum continuous current for normal duty operation?
In normal duty operation, the SP1204 can handle a maximum continuous current of 11 A.

3. What is the typical motor output power for normal duty applications?
For normal duty, the SP1204 provides a motor output power of 3 HP (2.2 kW).

4. How does the drive perform under heavy-duty conditions?
Under heavy-duty conditions, the drive supports a maximum continuous current of 10.6 A and a typical motor output power of 2.2 kW (2 HP).

5. What is the frame size of the SP1204?
The SP1204 is built with a frame size of 1, making it compact and easy to install in space-constrained environments.

6. What types of motors can the SP1204 control?
The SP1204 is designed for controlling AC motors, making it suitable for various industrial applications such as pumps, fans, and conveyors.

7. Is the drive backed by a warranty?
Yes, the SP1204 comes with a 2-year warranty, ensuring reliability and peace of mind for users.

8. What are the typical applications for this AC drive?
The SP1204 is commonly used in applications requiring precise motor control, such as material handling, HVAC systems, and general industrial automation.

9. Does the drive support both normal and heavy-duty operations?
Yes, the SP1204 is versatile and supports both normal duty and heavy-duty operations, with distinct power and current ratings for each mode.

10. Is this AC drive compatible with Control Techniques systems?
Yes, the SP1204 is part of the Control Techniques product line and integrates seamlessly with their automation systems for optimal performance.

This set of FAQs highlights the versatility and robust performance of the Control Techniques SP1204 AC Drive, making it an excellent choice for industrial motor control needs.

Control Techniques products are manufactured in United Kingdom and are designed for Metal production, paper processing, and material conveying usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Siemens and Yaskawa.
