Control Techniques SM-Applications

Control Techniques SM-Applications Option Module

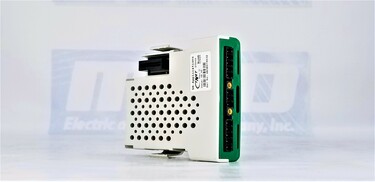

The Control Techniques SM-Applications option module is a robust, real-time control device designed to enhance functionality for drive systems in various industrial settings. Developed to meet demanding automation and control needs, this module is part of Control Techniques' suite of high-performance options that expand drive capabilities and enable seamless communication between drives and control systems. The SM-Applications module is designed to handle a range of functions from real-time control to drive-to-drive communication, all essential for optimizing performance in industrial automation. Offering a 2-year warranty from MRO Electric and Supply, this module provides users with both reliability and value. With the added convenience of free shipping, it is readily accessible for businesses seeking to enhance their drive control capabilities.

Real-Time Control and High-Speed Operation

One of the standout features of the SM-Applications module is its ability to perform real-time control, allowing for precise in-and-out operations across a range of drive systems. This capability ensures that the module responds instantly to changes in operational parameters, enhancing both speed and accuracy within applications that require rapid adjustments. The module’s drive-to-drive communication functionality enables multiple drives to communicate in real-time, allowing synchronized operations that boost the overall efficiency of industrial processes. This control feature is ideal for applications demanding high precision and reliability, such as manufacturing lines and material handling systems.

High-Speed Serial Port and Drive Communication

The SM-Applications module includes a high-speed serial port designed to facilitate fast and seamless data exchange between the drive and the microprocessor. This high-speed communication capability enables the module to support complex control processes without lag, making it suitable for applications where timing and synchronization are crucial. The serial port allows the module to relay instructions between connected drives and other system components, ensuring synchronized performance across the board. This feature contributes significantly to the module’s versatility and makes it a valuable addition to systems requiring integrated drive control.

Memory and Program Storage

Equipped with 384 KB of Flash memory and 80 KB allocated for user programming, the SM-Applications module supports extensive customization to meet specific control requirements. This memory capacity allows users to store a variety of control programs, enabling flexibility in executing complex tasks and adjustments on the fly. The program storage space ensures that users can create, modify, and store multiple programs as operational needs evolve, without sacrificing system performance. This feature, coupled with the module’s robust memory, supports adaptability and enhances its use across various applications.

Communication Protocols and Network Integration

The SM-Applications module is designed with an EIA-RS485 port that supports multiple communication protocols, including ANSI, Modbus-RTU (slave and master), and Modbus ASCII (slave and master). This versatile communication setup enables the module to integrate with different networks and systems seamlessly, ensuring compatibility with a wide array of industrial equipment. The module also features a CTNet high-speed network connection that allows data rates of up to 5 Mbit/s, ensuring rapid data transfer within a networked system. This high-speed network capability makes the SM-Applications module suitable for complex installations where fast and reliable communication is essential.

Digital Inputs, Outputs, and Programming Options

The module includes two 24 V digital inputs and two 24 V digital outputs, providing flexibility for external control connections and signaling. This configuration allows the module to communicate with additional equipment, enhancing its role within a larger system. Additionally, the SM-Applications module is compatible with CTSync programming, a flexible software tool that enables customized programming to meet specific application requirements.

Frequently Asked Questions (FAQ)

1. What is the primary function of the SM-Applications option module?
The SM-Applications module provides real-time control and high-speed communication for drive systems. It enables drive-to-drive communication, supports various protocols, and enhances drive functionality within an industrial automation setup.

2. Which communication protocols does the module support?
This module supports ANSI, Modbus-RTU (slave and master), and Modbus ASCII (slave and master) protocols via its EIA-RS485 port, making it versatile for different network configurations.

3. How much memory does the module offer for user programming?
The module includes 384 KB of Flash memory and an additional 80 KB specifically for user programming, allowing customization for a range of control needs.

4. What digital inputs and outputs are available?
The SM-Applications module has two 24 V digital inputs and two 24 V digital outputs, which provide flexibility for external control and integration with other devices.

5. Is this module compatible with high-speed network connections?
Yes, it features a CTNet high-speed network connection with data rates up to 5 Mbit/s, which supports rapid data transfer and reliable communication in complex industrial environments.

Control Techniques products are manufactured in United Kingdom and are designed for Metal production, paper processing, and material conveying usage. They come with a 2-year warranty from MRO Electric. We also carry Option Modules from other manufacturers such as Siemens and Yaskawa.

Contact Us Today For More Information About Control Techniques Products

Check out the rest of our Control Techniques product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like SM-Applications, take a look at more from our Option Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our SM-Applications products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
