SGMPH-01AAE4SD

2-year Warranty

Same Day Shipping

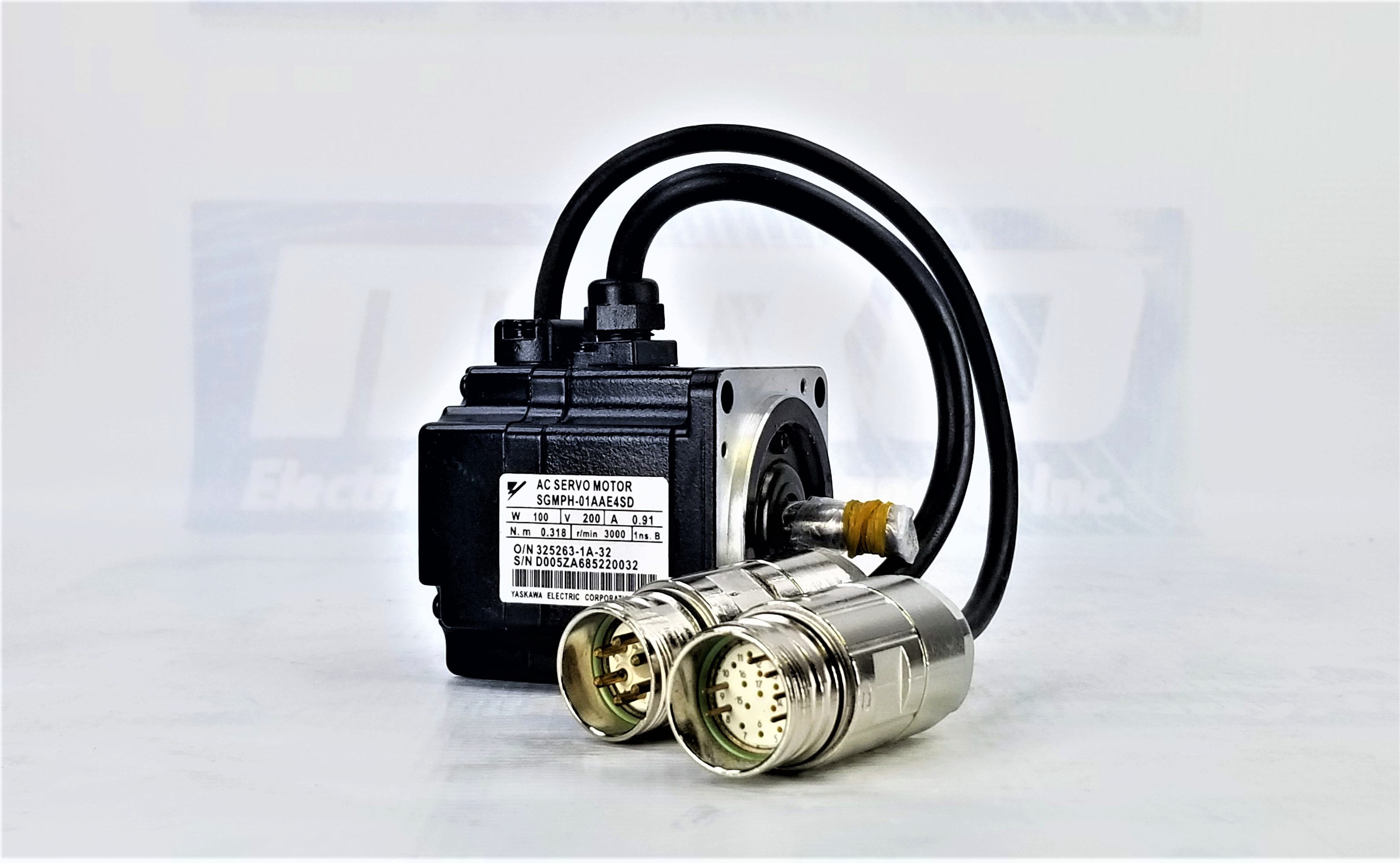

Yaskawa SGMPH-01AAE4SD

SIGMA SERIES SERVO MOTOR.8AMP 200VAC 100W 3000RPM.318NM

5/5
1 rating

Select Condition

Refurbished

Request Quote

New

2 in stock

$997.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberSGMPH-01AAE4SD
ManufacturerYaskawa
TypeAC Motors
Model #SGMPH01AAE4SD
Warranty2 Year
GroupMotors
CategorySigma 2
Power Rating (kW)0.1 kW
Voltage200 VAC
Rated Speed3,000 RPM
Max Speed5,000 RPM
Mounting TypeFlange
Encoder TypeIncremental
Encoder Bit Resolution13 BIT
Constant Torque (Nm)0.318 Nm
Peak Torque (Nm)0.96 Nm
Peak Torque (in-oz)135 in-oz
Constant Torque (in-oz)45.1 in-oz
Constant Torque (in-lb)2.8 in-lb
Peak Torque (in-lb)8.5 in-lb
BrakeNo
IP RatingIP67
ApprovalsCE, cUL Recognized, UL
Net Weight2.08 lbs
Gross Weight2.275 lbs

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed SGMPH-01AAE4SD to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this SGMPH-01AAE4SD we also repair a wide range of other Yaskawa products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty SGMPH-01AAE4SD, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 2lbs

Want it shipped today?

  • Order within the next 5 hours and 42 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty SGMPH-01AAE4SD for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Yaskawa SGMPH-01AAE4SD Overview

Yaskawa SGMPH-01AAE4SD AC Motor: Sigma 2 Series

The Yaskawa SGMPH-01AAE4SD is a high-performance AC motor designed for industrial applications requiring precise motion control and consistent power delivery. As part of Yaskawa's Sigma 2 series, this motor offers advanced features, reliability, and high efficiency, making it suitable for various automation tasks. Its compact design and versatile functionality make it an ideal choice for manufacturing, robotics, and material handling industries.

Power Rating and Performance

This Yaskawa motor delivers a power rating of 0.1 kW, well-suited for light- to medium-duty applications. Operating at a standard voltage of 200 VAC, the engine is optimized for energy efficiency and precise control. The SGMPH-01AAE4SD's rated speed is 3,000 RPM, which allows it to handle high-speed operations with ease. Additionally, it features a maximum speed of 5,000 RPM, providing flexibility for applications that require rapid acceleration or deceleration.

Torque Specifications

The motor's torque capabilities are a key highlight. It provides a constant torque of 0.318 Nm (45.1 in-oz or 2.8 in-lb), ensuring stable and consistent operation during continuous use. For more demanding tasks, the motor delivers a peak torque of 0.96 Nm (135 in-oz or 8.5 in-lb), making it capable of handling short bursts of high-load operations without compromising performance. These torque characteristics make the SGMPH-01AAE4SD versatile for steady-state and dynamic applications.

Encoder and Feedback System

Equipped with a 13-bit incremental encoder, the SGMPH-01AAE4SD ensures accurate feedback and precise control over motor positioning. The encoder's high resolution provides smooth and responsive performance, which is essential for applications requiring fine positioning or speed regulation. The incremental encoder ensures the motor maintains its precision even during high-speed operations, making it suitable for CNC machines, packaging equipment, and robotics systems.

Mounting and Design

The motor features a flange mounting type, simplifying installation and ensuring secure attachment in various industrial setups. The SGMPH-01AAE4SD is designed to withstand harsh environments, featuring an IP67 rating for protection against dust and water. This level of durability ensures reliable operation in challenging conditions, including exposure to moisture or contaminants, making it ideal for use in industrial and factory environments where protection from external elements is crucial.

Certifications and Approvals

The SGMPH-01AAE4SD complies with several international safety and performance standards. It is CE marked, which indicates conformity with European Union regulations, and is cUL Recognized and UL listed, ensuring it meets North American safety standards. These certifications make the motor suitable for use in global markets, assuring its quality and reliability.

Lightweight and Compact

Weighing just 2.08 lbs (net weight) and with a gross weight of 2.275 kg, the SGMPH-01AAE4SD is compact and lightweight, making it easy to integrate into various systems without adding unnecessary bulk. Its small size and light weight are advantageous for applications where space is limited, yet powerful performance is required.

Warranty and Shipping

MRO Electric and Supply provides a 2-year warranty for the Yaskawa SGMPH-01AAE4SD motor, ensuring peace of mind for customers who rely on its performance in critical applications. Additionally, the motor comes with free shipping, making it an attractive option for businesses looking for cost-effective solutions without compromising quality or service.

Yaskawa SGMPH-01AAE4SD AC Motor FAQs

What is the power rating of the Yaskawa SGMPH-01AAE4SD motor?

The SGMPH-01AAE4SD motor has a power rating of 0.1 kW, making it suitable for light to medium-duty applications. It delivers reliable performance in various industrial environments requiring precise control.

What is the rated and maximum speed of this motor?

The motor's rated speed is 3,000 RPM, providing stable and efficient operation for most tasks. Its maximum speed of 5,000 RPM offers flexibility for applications that demand high-speed performance, such as rapid acceleration or deceleration.

What type of encoder is used in the SGMPH-01AAE4SD motor?

The motor has a 13-bit incremental encoder, ensuring accurate feedback and precision control over motor positioning. This high-resolution encoder is essential for applications requiring fine positioning and speed regulation.

What torque can the Yaskawa SGMPH-01AAE4SD motor handle?

The motor provides a constant torque of 0.318 Nm (45.1 in-oz or 2.8 in-lb), ideal for continuous operations. Its peak torque capacity is 0.96 Nm (135 in-oz or 8.5 in-lb), allowing it to handle high-load, short-term operations without performance issues.

What is the IP rating of the SGMPH-01AAE4SD motor?

The SGMPH-01AAE4SD has an IP67 rating, meaning it is highly resistant to dust and can withstand temporary immersion in water. This protection level makes the motor suitable for use in harsh industrial environments where exposure to moisture or dust is expected.

How is the motor mounted?

The motor utilizes a flange mounting, allowing easy and secure installation in various industrial systems. The flange mounting simplifies the integration process and provides stability during operation.

Does the motor have a built-in brake?

No, the SGMPH-01AAE4SD motor does not come with a built-in brake. If braking is required for an application, external braking mechanisms must be integrated.

What certifications does the Yaskawa SGMPH-01AAE4SD motor have?

The motor is CE marked, cUL Recognized and UL listed, ensuring compliance with European and North American safety and performance standards. These certifications make the motor suitable for use in various international markets.

What is the weight of the motor?

The SGMPH-01AAE4SD motor has a net weight of 2.08 lbs and a gross weight of 2.275 lbs. Its lightweight design makes it easy to handle and integrate into systems where space and weight are considerations.

What is the warranty period for the SGMPH-01AAE4SD motor?

MRO Electric and Supply offers a 2-year warranty on the motor, which provides peace of mind to customers who rely on its long-term performance.

Is free shipping available for this motor?

MRO Electric and Supply offers free shipping for the Yaskawa SGMPH-01AAE4SD motor, adding further value and convenience for customers purchasing this product.
