SIGMA 2 SERVO MOTOR
| Part Number | SGDH-15AE |
| Manufacturer | Yaskawa |
| Type | AC Drives |
| Model # | SGDH15AE |
| Warranty | 2 Year |
| Range | Sigma II |
| Category | AC Servo drive |
| Rated voltage | 400 V |
| Power rating | 22-55 kW |
| Display | LED |
| Monitor | Analog |
| Processing | Incorporated |
| Resitor | Regenerative |
| Ambient temp | 0-55°C/-20to 85°C |
| Load regulation | 0% to 100%: 0:01% max |
| Temperature regulation | 25 ± 25°±C: 0.1% maximum at rated speed |
| Phase | 3-Phase |
| Power rating input | 200-230 V |
| Input frequency | 50/60 Hz |
| Current rating | 9.5 A |
| AC output | 3-phase 0-230 V |
| Power rating output | 1.5 kW |
| Current out | 11.6 A |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed SGDH-15AE to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this SGDH-15AE we also repair a wide range of other Yaskawa products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty SGDH-15AE, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty SGDH-15AE for credit when ordering from MRO Electric

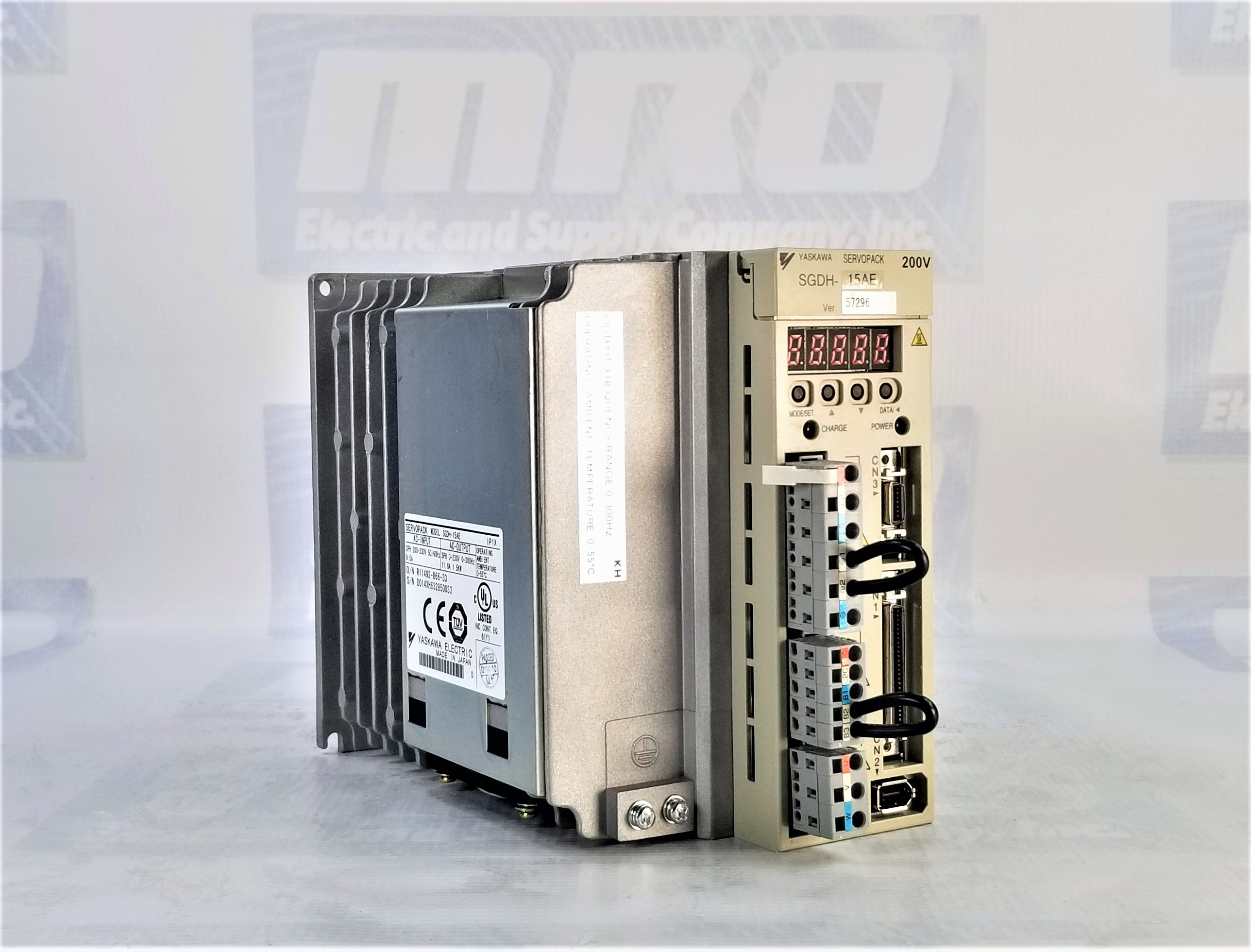

The Yaskawa SGDH-15AE is a high-performance AC servo drive, part of Yaskawa's Sigma II series. Known for its reliability and efficiency, this drive is designed for precision control applications in industrial automation and motion control systems. The SGDH-15AE is built to deliver superior performance in controlling AC motors, explicitly focusing on speed, position, and torque. It is an ideal choice for environments requiring accurate and efficient motor control. This model is tailored for advanced applications in manufacturing, robotics, CNC machinery, and automated material handling systems.
The SGDH-15AE operates on a 3-phase input with a rated voltage of 400 V and a power rating of 22 to 55 kW. It offers flexibility with a power rating input of 200-230 V and frequency input of 50/60 Hz, making it adaptable to various electrical environments. Designed for efficiency, this drive provides a current rating of 9.5 A on the input and an output power rating of 1.5 kW with an AC output of 3-phase at 0-230 V, ensuring stable power delivery to connected motors. This model also offers an output current rating of 11.6 A, which supports powerful and consistent operation.
The SGDH-15AE maintains precise load and temperature regulation and utilizes Yaskawa's advanced control technology. Load regulation is highly efficient, maintaining a 0% to 100% range with a maximum deviation of only 0.01%, ensuring stability even under varying load conditions. It maintains a consistent control for temperature regulation at 25 ± 25° C, with a maximum deviation of 0.1% at rated speed. This level of precision allows the SGDH-15AE to perform exceptionally well in tasks that demand high accuracy, such as machining and material processing.
This AC servo drive is designed for ease of use, with an LED display that provides clear status updates and real-time data about its performance. The monitor includes an analog interface, which allows users to track performance metrics quickly and efficiently. This feature is precious for operators who need immediate feedback on the drive's operational status. Additionally, the drive is designed with a regenerative resistor, enhancing energy efficiency by redirecting excess energy generated during braking back into the system. This function not only saves energy but also minimizes operational costs over time.
The Yaskawa SGDH-15AE is built to withstand demanding industrial environments. Its operational ambient temperature range is from 0 to 55°C, and its storage temperature range is from -20 to 85°C. This broad temperature tolerance enables the drive to function effectively in varying environmental conditions, contributing to its long lifespan and consistent performance. Yaskawa's commitment to quality is underscored by the two-year warranty offered by MRO Electric and Supply, along with free shipping, which ensures customer confidence in its durability and reliability.
1. What type of applications is the SGDH-15AE suitable for?
The SGDH-15AE is suitable for applications requiring precise control of AC motors, including manufacturing, robotics, CNC machinery, and automated material handling systems.
2. Does the SGDH-15AE come with a built-in display?
The SGDH-15AE features an LED display that provides real-time status updates and performance data, enhancing user convenience and control.
3. How does the regenerative resistor work in this drive?
The regenerative resistor redirects excess energy generated during braking back into the system, improving energy efficiency and reducing operational costs.
4. What is the power rating of the SGDH-15AE?
This model has a 1.5 kW output and an input power rating of 22 to 55 kW, making it suitable for high-power applications.
5. Is there a warranty included with this drive?
MRO Electric and Supply provides a two-year warranty with free shipping, ensuring product support and customer satisfaction.
Check out the rest of our Yaskawa product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like SGDH-15AE, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our SGDH-15AE products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
