Control Techniques SE2D200220

Control Techniques SE2D200220

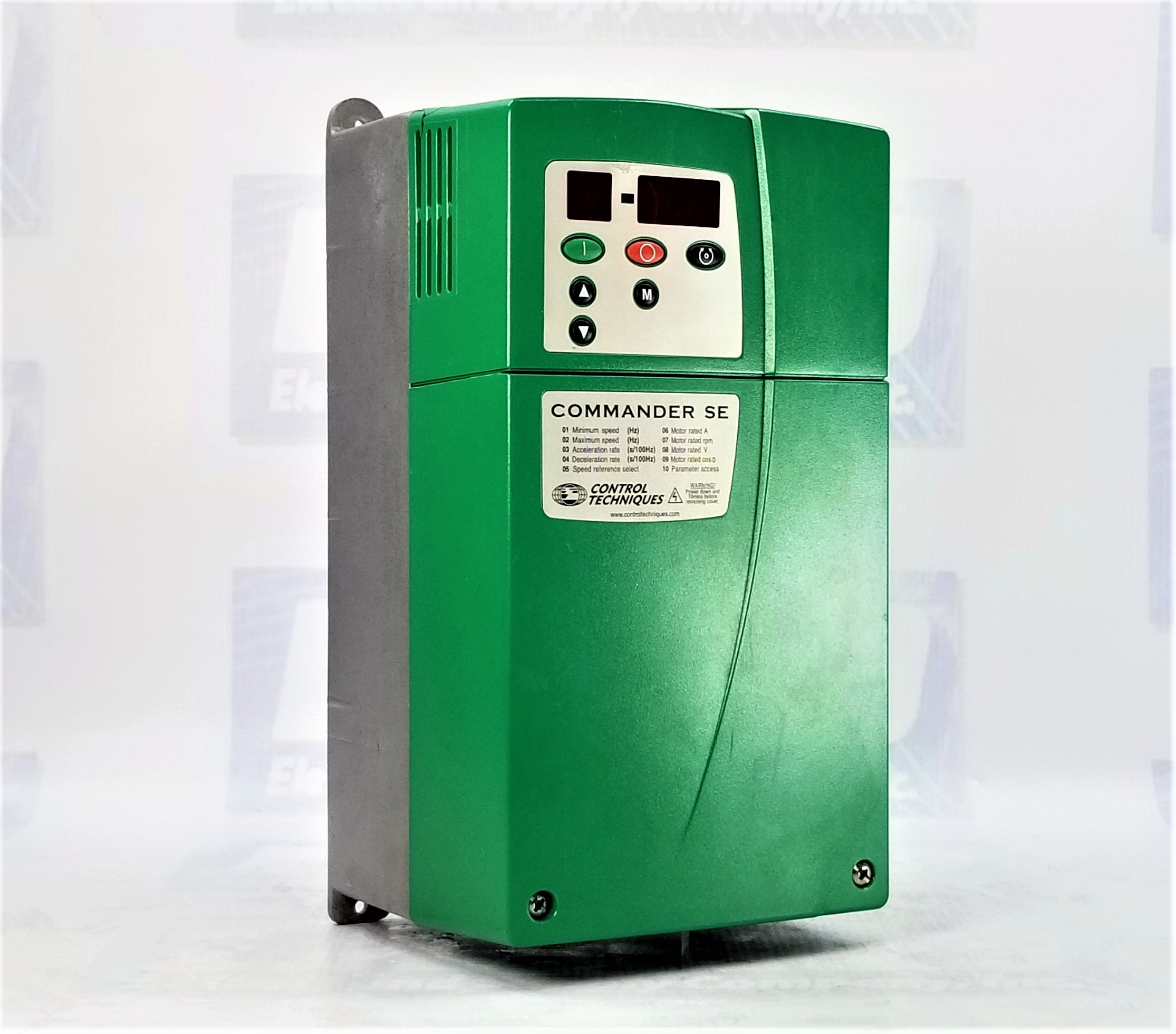

The Control Techniques SE2D200220 is a versatile inverter drive designed to deliver precise control over electric motors in various industrial applications. With a power rating of 2.2kW (3HP) and an input voltage range of 200-240 VAC at 50/60Hz, this drive offers flexibility and efficiency in motor control. Let's explore the key features, benefits, and options of the SE2D200220, highlighting its role in industrial automation.

Key Features:

Ease of Use - Commander SE Key Features:

The Commander SE series emphasizes user-friendly features, requiring only 10 parameters for most applications at Level 1. This simplifies setup and installation, contributing to quick and efficient deployment in industrial settings.

Quick Installation and Cable Management:

The SE2D200220 ensures quick installation with convenient cable management. Standard size and pluggable control terminals facilitate easy integration into existing systems, reducing downtime during setup.

Autotune Technology:

The drive incorporates a no-spin rotating autotune feature for fast drive/motor optimization. This technology streamlines the tuning process, ensuring optimal performance without unnecessary delays.

Intelligent Thermal Management:

The SE2D200220 features Intelligent Thermal Management, a unique technology that minimizes motor noise while providing maximum drive protection. This is crucial for maintaining a quiet operating environment and ensuring the longevity of both the drive and motor.

RS485 Serial Communications:

The inclusion of RS485 serial communications as a standard feature enhances connectivity and communication capabilities, enabling seamless integration into industrial networks.

Key Benefits:

Communication Packages:

The SE2D200220 offers plugin communications packages, including Profibus-DP, DeviceNet, CAN Open, Interbus S, and CT Net. These options enhance communication flexibility and compatibility with various industrial protocols.

Intelligent Thermal Management Technology:

This technology not only reduces nuisance tripping but also ensures minimum motor noise. It provides maximum protection against expensive stoppages, minimizing product wastage, breakages, and downtime.

Mains Dip Ride-Through Feature:

The mains dip ride-through feature enhances drive protection by providing maximum protection against expensive stoppages. This feature is crucial for minimizing product wastage and downtime in industrial operations.

Advanced Control - Level 3 Parameters:

For users seeking ultimate control, the Commander SE's Level 3 parameters offer access to advanced features such as PID controller, kW hour meter, 8 preset speeds, motorized potentiometer, second motor map, and more via serial communications.

Full Torque Down to 1Hz:

With open-loop vector control, the SE2D200220 ensures full torque down to 1Hz, allowing for precise control even at lower speeds.

Options & Software:

Easy-to-Install Options:

The SE2D200220 offers easy-to-install options, including a remote keypad, SESoft software for PC-based setup, and the QuicKey cloning module for fast and accurate parameter transfer.

Fieldbus Communications:

The drive supports various fieldbus communication options, such as Profibus DP, Interbus, DeviceNet, and CANopen, connecting seamlessly to industrial networks.

EMC Filters and Universal Keypad:

Additional options include EMC filters in various configurations, a universal keypad available in handheld or door-mounted versions, and advanced programming with SESoft PC Windows-based setup software.

Dependability in Harsh Conditions:

The SE2D200220 inverters from the Commander SE range have demonstrated their resilience in harsh operating conditions. Their rugged and robust design ensures dependability across a wide range of applications.

Frequently Asked Questions

1. What is the primary power rating of the Control Techniques SE2D200220 inverter drive?

The SE2D200220 has a power rating of 2.2kW (3HP), making it suitable for various industrial applications requiring precise motor control.

2. What is the input voltage range supported by the SE2D200220?

The SE2D200220 operates with an input voltage range of 200-240 VAC at 50/60Hz, providing flexibility for different power supply configurations.

3. How many parameters are typically needed for most applications at Level 1 configuration?

For most applications, only 10 parameters are required at Level 1 configuration, simplifying the setup process and ensuring quick installation.

4. What is the significance of the autotune technology in the SE2D200220?

The no-spin rotating autotune technology in the SE2D200220 facilitates fast drive/motor optimization, streamlining the tuning process for optimal performance.

5. How does the Intelligent Thermal Management feature benefit industrial operations?

Intelligent Thermal Management minimizes motor noise while ensuring maximum drive protection. This feature is crucial for maintaining a quiet operating environment and ensuring the longevity of the drive and motor.

6. What communication options are available with the SE2D200220?

The SE2D200220 supports RS485 serial communications as standard and offers plugin communication packages, including Profibus-DP, DeviceNet, CAN Open, Interbus S, and CT Net.

7. Can the SE2D200220 withstand harsh operating conditions?

Yes, the SE2D200220 inverters from the Commander SE range are designed to withstand harsh operating conditions due to their rugged and robust design, ensuring dependability for a wide variety of applications.

8. How does the mains dip ride-through feature contribute to drive protection?

The mains dip ride-through feature in the SE2D200220 provides maximum protection against expensive stoppages, minimizing product wastage, breakages, and downtime.

9. What advanced features are accessible through Level 3 parameters in the Commander SE series?

Level 3 parameters offer advanced features such as a PID controller, kW hour meter, 8 preset speeds, motorized potentiometer, second motor map, and more via serial communications, providing users with ultimate control.

10. How can parameters be transferred efficiently with the SE2D200220?

The SE2D200220 offers a QuicKey cloning module, enabling the fast and accurate transfer of parameters. This feature makes it extremely easy to add or replace drives in a system.
