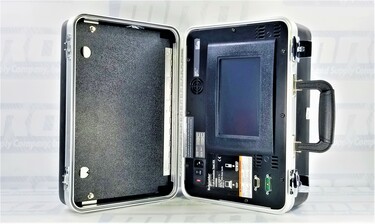

Schneider Electric S33595 Circuit Breaker Test Kit Overview

The Schneider Electric S33595 is a comprehensive circuit breaker full-function test kit with a Human-Machine Interface (HMI) and a protective case. Designed to ensure efficient testing and maintenance of circuit breakers, this kit offers precise control and monitoring capabilities for enhanced safety and reliability in electrical systems.

Key Features:

Versatile Functionality:

The S33595 test kit is a versatile solution for testing circuit breakers. It provides a range of functions to evaluate performance and ensure operational integrity. It is suitable for various circuit breakers and offers comprehensive testing capabilities.

Nominal Operating Voltage:

Operating within a nominal voltage range of 115–230 Vac, the test kit accommodates different voltage requirements commonly encountered in electrical systems, ensuring compatibility with a wide range of circuit breakers.

Voltage Range and Frequency:

With a voltage range of 102–144 Vac and 207–253 Vac and operating frequencies of 50 Hz and 60 Hz, the test kit offers flexibility to handle diverse electrical environments and allows for accurate testing under varying conditions.

Operating Temperature and Tolerance:

The S33595 operates effectively within an operating temperature range of 20–50°C, providing reliable performance even in challenging environmental conditions. It maintains precise control within a tolerance range of 22.8–25.2 Vdc, ensuring accurate testing results.

Maximum Output Current and Power Rating:

The test kit can deliver a maximum output current of 100 mA and a maximum power rating of 60 W; the test kit provides sufficient power for conducting comprehensive tests on circuit breakers, enabling efficient troubleshooting and maintenance.

Trip Time Resolution:

With a trip time resolution of 1 ms (millisecond), the test kit offers high precision in measuring circuit breakers' response time, allowing for precise evaluation of their trip characteristics and performance.

Protective Case:

The test kit comes equipped with a protective case, ensuring safe storage and transportation of the equipment. The case provides added durability and protection against environmental hazards, safeguarding the integrity of the test kit during field operations.

Applications:

The Schneider Electric S33595 circuit breaker test kit finds application in various industries and sectors where the testing and maintenance of circuit breakers are essential. It is commonly used in power generation facilities, industrial plants, commercial buildings, and electrical maintenance operations.

Frequently Asked Questions

Q: What is the Schneider Electric S33595 circuit breaker test kit? A: The Schneider Electric S33595 is a comprehensive circuit breaker test kit designed to evaluate circuit breakers' performance and integrity in electrical systems. It includes a range of functions and features to facilitate efficient testing and maintenance of circuit breakers.

Q: What are the key features of the S33595 circuit breaker test kit? A: The key features of the S33595 circuit breaker test kit include its versatility for testing various types of circuit breakers, nominal operating voltage range of 115–230 Vac, voltage range of 102–144 Vac and 207–253 Vac, operating frequencies of 50 Hz and 60 Hz, operating temperature range of 20–50°C, maximum output current of 100 mA, trip time resolution of 1 mS, maximum power rating of 60 W, and protective case for safe storage and transportation.

Q: What applications is the S33595 circuit breaker test kit suitable for? A: The S33595 circuit breaker test kit is suitable for various applications in power generation, industrial plants, commercial buildings, and electrical maintenance operations. It is used wherever testing and maintenance of circuit breakers are necessary for ensuring the safety and reliability of electrical systems.

Q: What are the benefits of using the S33595 circuit breaker test kit? A: The benefits of using the S33595 circuit breaker test kit include its versatility, precise control capabilities, reliability, efficiency, and durability. It allows for accurate testing and evaluation of circuit breakers, facilitating timely maintenance and troubleshooting to ensure the integrity and performance of electrical systems.
