Yaskawa JZRCR-YPP01-1

Yaskawa products are manufactured in Japan and are designed for Advanced manufacturing, milling, and factory automation usage. They come with a 2-year warranty from MRO Electric. We also carry Teach Pendants from other manufacturers such as Schneider Electric and KUKA.

Yaskawa DX100 Robotics System

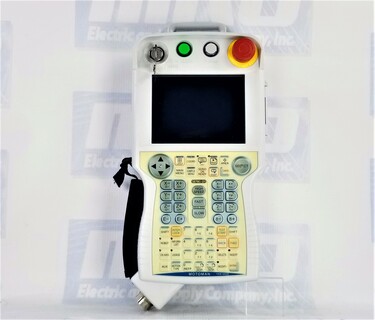

The Yaskawa JZRCRYPP011 is an integral component of the Yaskawa DX100 robotics system, serving as a powerful and versatile programming tool that empowers users to interact with robotic manipulators, teach them tasks, and fine-tune their operations. This highly functional Dx100 Teach Pendant includes an 8-meter cable and overlay, making it an essential asset for programming and controlling robotic operations in various industries and applications.

Features

With its comprehensive array of keys, buttons, and displays, the JZRCRYPP011 Teach Pendant provides users with an intuitive and user-friendly interface for efficient programming and control of robotic operations. The pendant's ergonomic design and layout ensure that operators can easily access and navigate its features, enhancing the overall user experience.

One of the most significant features of the pendant is its extensive set of programming keys. These keys facilitate a wide range of tasks, from initiating robot movements to fine-tuning instructions. The [START] key, for instance, enables the start of the manipulator motion during playback operation, while the [HOLD] key halts the motion and holds the manipulator in its current position. This feature is particularly useful during teaching or when making adjustments to the robot's trajectory.

Operating Modes

The [MODE] key provides access to different operating modes, including Play, Teach, and Remote modes. Each mode serves a distinct purpose – Play for playback of programmed tasks, Teach for manual teaching and editing of jobs, and Remote for operation via external signals. This flexibility allows users to switch between modes based on their specific needs.

Safety is paramount in any robotic system, and the [ENABLE] key plays a crucial role in this aspect. It enables the servo power supply to be turned on, ensuring that the robot's movements are safely initiated. The [ASSIST] key, on the other hand, assists users by displaying contextual menus and guidance, aiding in smoother and more efficient programming and operation.

Efficient editing and modification of jobs are made possible by keys such as [DELETE], [INSERT], and [MODIFY]. These keys allow users to manage instructions, add new steps, and modify existing ones with ease, streamlining the programming process and minimizing errors.

Capabilities

The pendant's numeric keys offer precise input capabilities for numerical values and symbols, making it straightforward to specify parameters and settings. The [MOTION TYPE] key enables the selection of different interpolation types for playback operations, further enhancing the control and precision of robotic movements.

Display Features

Additionally, the pendant's display is divided into five distinct areas: the general-purpose display area, menu area, human interface display area, main menu area, and status display area. This design optimizes usability by providing users with a clear visual representation of information and commands, enhancing their ability to interact with the robot effectively.

In conclusion, the Yaskawa JZRCRYPP011 Dx100 Teach Pendant with its 8-meter cable and overlay is an indispensable tool for programming and controlling robotic systems. Its ergonomic design, extensive array of keys, and intuitive interface empower users to program, teach, and manage robotic tasks with efficiency and precision. As technology advances, the role of the teach pendant continues to be instrumental in harnessing the capabilities of robots across various industries and applications.
