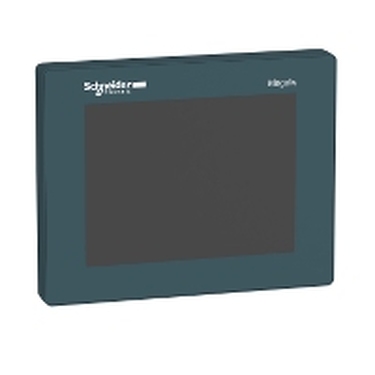

5”7 COLOR TOUCH CONTROLLER PANEL - DIG 16 INPUTS/10 OUTPUTS
Available
Free Shipping
2 Year warranty
| Part Number | HMISCU8A5 |
| Manufacturer | Schneider Electric |
| Type | HMIs |
| Warranty | 2 Year |
| Product weight | 0.551 kg |
| Range of product | Magelis SCU |
| Product or component type | Small touch HMI controller |
| Display size | 5.7 inch |
| Display type | Backlit LED colour TFT LCD |
| Pixel resolution | 320 x 240 pixels QVGA |
| Touch panel | Analogue |
| Backlight lifespan | Lifespan: 50000 hours with 65000 colours |
| Brightness | 16 levels via touch panel |
| View angle horiz x vert | 60° left |
| 60° right | |
| 40° top | |
| 60° bottom | |
| Character font | ASCII |
| Supply | External source |
| [Us] rated supply voltage | 24 V at 20.4...28.8 V DC |
| Immunity to microbreaks | <= 10 ms |
| Inrush current | <= 30 A |
| Power consumption | 24 W |
| Local signalling | No indicator |
| Number of pages | Limited by internal memory capacity |
| Software designation | SoMachine |
| Operating system | Magelis |
| Processor name | CPU RISC |
| Processor frequency | 333 MHz |
| Memory description | 128 MB flash memory, type: NAND |
| 128 kB internal data storage memory, type: FRAM | |
| 128 MB application run memory, type: DRAM | |
| Integrated connection type | 1 Ethernet TCP/IP, connector type: RJ45 |
| 1 serial link, communication ports RS485/RS232, connector type: RJ45, transmission rate: <= 115.2 | |
| kbits/s | |
| 1 USB (V2.0) port, connector type: mini B USB | |
| 1 USB (V2.0) port, connector type: USB A | |
| CANopen master bus, connector type: SUB-D 9 | |
| Realtime clock | Built-in |
| Downloadable protocols | Modbus |
| Modbus TCP/IP | |
| CANopen | |
| Fixing mode | By 1 nut - diameter: Ø 22 mm, mounting on: 1...6 mm thick panel |
| Enclosure material | PC/PBT and PAA |
| Shock resistance | 147 m/s² (duration=11 ms) conforming to IEC 60068-2-27 on DIN rail |
| 294 m/s² (duration=6 ms) conforming to IEC 60068-2-27 on panel mounting | |
| Vibration resistance | +/- 3.5 mm (f=5...9 Hz) conforming to IEC 60068-2-6 |
| 1 gn (f=9...150 Hz) conforming to IEC 60068-2-6 | |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV, air discharge conforming to IEC 61000-4-2 |
| Electrostatic discharge immunity test - test level: 6 kV, contact discharge conforming to IEC | |
| 61000-4-2 | |
| Susceptibility to electromagnetic fields - test level: 10 V/m, 80 MHz...3 GHz conforming to IEC | |
| 61000-4-3 | |
| Electrical fast transient/burst immunity test - test level: 2 kV, power lines conforming to IEC 61000-4-4 | |
| Electrical fast transient/burst immunity test - test level: 1 kV, between analogue I/O and operating | |
| voltage conforming to IEC 61000-4-4 | |
| Electrical fast transient/burst immunity test - test level: 2 kV, relay wires conforming to IEC 61000-4-4 | |
| Electrical fast transient/burst immunity test - test level: 1 kV, Ethernet line conforming to IEC | |
| 61000-4-4 | |
| Electrical fast transient/burst immunity test - test level: 1 kV, COM line conforming to IEC 61000-4-4 | |
| Electrical fast transient/burst immunity test - test level: 1 kV, CAN line conforming to IEC 61000-4-4 | |
| Surge immunity test - test level: 2 kV, power supply (common mode) conforming to IEC 61000-4-5 | |
| Surge immunity test - test level: 1 kV, power supply (differential mode) conforming to IEC 61000-4-5 | |
| Surge immunity test - test level: 1 kV common mode, digital I/O conforming to IEC 61000-4-5 | |
| Surge immunity test - test level: 0.5 kV differential mode, digital I/O conforming to IEC 61000-4-5 | |
| Conducted RF disturbances - test level: 10 V, 0.15...80 MHz conforming to IEC 61000-4-6 | |
| Conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011 | |
| Radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011 | |
| Discrete input number | 2 for fast input (normal mode) conforming to IEC 61131-2 Type 1 |
| 14 for digital input conforming to IEC 61131-2 Type 1 | |
| Discrete input voltage | 24 V DC discrete input logic:sink or source (positive/negative) |
| Number of common point | 1 for fast input (HSC mode) |
| 2 for digital input | |
| Discrete input current | 7.83 mA for fast input |
| 5 mA for digital | |
| Input impedance | 4.7 kOhm |
| 2.81 kOhm | |
| Sensor power supply | 15...28.8 V DC, voltage (state 1): >= 15 V, current (state 1): >= 5 mA, voltage (state 0): <= 5 V, |
| current (state 0): <= 1.5 mA | |
| 15...28.8 V DC, voltage (state 1): >= 15 V, current (state 1): >= 2.5 mA, voltage (state 0): <= 5 V, |
| current (state 0): <= 1 mA | |
| Configurable filtering time | 0 ms no filter (none) |
| 0.004...0.04 ms bounce filter (latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)) | |
| 3...12 ms integrator (none/run/stop) | |
| Input frequency | 100 kHz for fast input (encoder mode) - control type A/B |
| 100 kHz for fast input - control type single phase | |
| 100 kHz for fast input - control type pulse/direction | |
| Cable length | 10 m shielded cable for fast input |
| 100 m shielded cable for digital input | |
| 50 m unshielded cable for digital input | |
| Connection pitch | 3.5 mm |
| Overvoltage protection | With |
| Isolation between channels and | 500 V DC |
| Isolation between channels | None |
| Discrete output number | 2 fast output (normal mode), output logic: source |
| 8 digital output, output logic: source | |
| Discrete output voltage | 24 V DC (voltage limit: 19.2...28.8 V) with transistor discrete output(s) |
| 24 V DC (voltage limit: 5...30 V) with relay discrete output(s) | |
| 220 V AC (voltage limit: 100...250 V) with relay discrete output(s) | |
| Input/Output number | 2 for fast input, terminal(s): FI0...FI1 |
| 14 for digital input, terminal(s): DI0...DI13 | |
| 2 for fast output, terminal(s): FQ0...FQ1 | |
| 8 for digital output, terminal(s): DQ0...DQ7 | |
| Discrete output current | 300 mA, response time 2 ms for fast output (normal mode) |
| 50 mA, response time 2 ms for fast output (PWM or PTO mode) | |
| 2 A (current per output common:4 A), response time 5 ms with opening contact for digital output | |
| 2 A (current per output common:4 A), response time 2 ms with closing contact for digital output | |
| Insulation resistance | > 10 MOhm between the I/O and internal logic |
| > 10 MOhm between power supply and earth | |
| Output frequency | <= 100 kHz for fast output (PTO mode) |
| <= 1 kHz for fast output (PWM mode) | |
| Absolute accuracy error | +/- 0.1 % of full scale of cyclic ratio 1...99% for fast output (PWM or PTO mode) |
| 1 % of full scale of cyclic ratio 1...99% for fast output (PWM or PTO mode) | |
| +/- 5 % of full scale of cyclic ratio 10...90% for fast output (PWM or PTO mode) | |
| +/- 10 % of full scale of cyclic ratio 20...80% for fast output (PWM or PTO mode) | |
| +/- 15 % of full scale of cyclic ratio 30...70% for fast output (PWM or PTO mode) | |
| Height | 129.4 mm |
| Width | 163 mm |
| Depth | 76.22 mm |
