1 in stock
Ships Today
Free Shipping
2 Year warranty

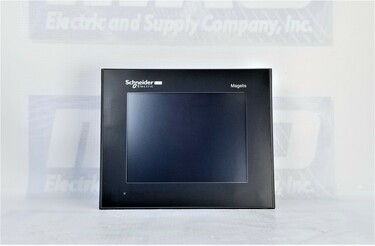

| Part Number | HMIGTO2300 |
| Manufacturer | Schneider Electric |
| Type | HMIs |
| Warranty | 2 Year |
| Range of product | Magelis GTO |
| Product or component type | Advanced touchscreen panel |
| Display colour | 65536 colours |
| Display size | 5.7 inch |
| Supply | External source |
| Operating system | Magelis |
| Battery type | Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 d, battery life = 10 yr |
| Terminal type | Touchscreen display |
| Display type | Backlit colour TFT LCD |
| Display resolution | 320 x 240 pixels QVGA |
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Resistive film, 1000000 cycles |
| Backlight lifespan | 50000 hours (white) at 25 °C |
| Brightness | 16 levels - control by touch panel |
| 16 levels - control by software | |
| Character font | ASCII (European characters) |
| Chinese (simplified Chinese) | |
| Japanese (ANK, Kanji) | |
| Korean | |
| Taiwanese (traditional Chinese) | |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2...28.8 V |
| Inrush current | <= 30 A |
| Power consumption in W | <= 10.5 W |
| <= 6.5 W (when power is not supplied to external devices) | |
| <= 4.5 W (when backlight is OFF) | |
| <= 5 W (when backlight is dimmed) | |
| Local signalling | Status LED (orange) flashing software starting up |
| Status LED (green) steady offline | |
| Status LED (green) steady operating | |
| Status LED (red) steady power supply (ON) | |
| Status LED (clear) faded power supply (OFF) | |
| COM2 LED (yellow) steady data is being transmitted | |
| COM2 LED (yellow) faded no data transmission | |
| SD card LED (green) steady card is inserted | |
| SD card LED (green) faded card is not inserted or is not being accessed | |
| Software designation | Vijeo Designer configuration software >= V6.1 |
| Memory description | 64 MB flash (EPROM) |
| Data backed up | 128 kB internal RAM (SRAM) |
| Downloadable protocols | Modbus Plus Schneider Electric Modicon |
| FIPWAY Schneider Electric Modicon | |
| Modbus Schneider Electric Modicon | |
| Third party protocols Mitsubishi Melsec | |
| Third party protocols Omron Sysmac | |
| Third party protocols Rockwell Automation Allen-Bradley | |
| Third party protocols Siemens Simatic | |
| Uni-TE Schneider Electric Modicon | |
| Integrated connection type | COM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bps |
| COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps | |
| COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens | |
| MPI | |
| USB 2.0 type A | |
| USB 2.0 type mini B | |
| Product mounting | Flush mounting |
| Fixing mode | By 4 screw clamps |
| Front material | PPT |
| Enclosure material | PPT |
| Type of cooling | Natural convection |
| Width | 169.5 mm |
| Height | 137 mm |
| Depth | 59.5 mm |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed HMIGTO2300 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this HMIGTO2300 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty HMIGTO2300, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty HMIGTO2300 for credit when ordering from MRO Electric
Is the Magelis HMIGTO series ATEX Certified?
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like HMIGTO2300, take a look at more from our HMIs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our HMIGTO2300 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
