.jpg)
Available
Free Shipping
2 Year warranty

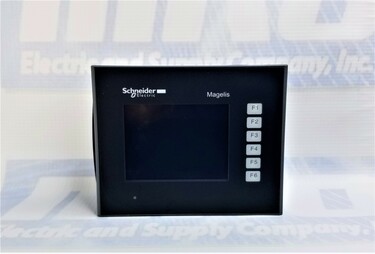

| Part Number | HMIGTO1300 |
| Manufacturer | Schneider Electric |
| Type | HMIs |
| Warranty | 2 Year |
| Range of product | Magelis GTO |
| Product or component type | Advanced touchscreen panel |
| Display colour | 65536 colours |
| Display size | 3.5 inch |
| Supply | External source |
| Control button type | Push-button, key type , marking: F1...F6, number of function keys = 6 (operation defined using Vijeo |
| Designer) | |
| Operating system | Magelis |
| Battery type | Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 d, battery life = 10 yr |
| Terminal type | Touchscreen display |
| Display type | Backlit colour TFT LCD |
| Display resolution | 320 x 240 pixels QVGA |
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Resistive film, 1000000 cycles |
| Backlight lifespan | 50000 hours (white) at 25 °C |
| Brightness | 16 levels - control by touch panel |
| 16 levels - control by software |
| Character font | ASCII (European characters) |
| Chinese (simplified Chinese) | |
| Japanese (ANK, Kanji) | |
| Korean | |
| Taiwanese (traditional Chinese) | |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2...28.8 V |
| Inrush current | <= 30 A |
| Power consumption in W | <= 9.6 W |
| <= 5.2 W (when power is not supplied to external devices) | |
| <= 4.2 W (when backlight is OFF) | |
| Local signalling | Status LED (orange) flashing software starting up |
| Status LED (green) steady offline | |
| Status LED (green) steady operating | |
| Status LED (red) steady power supply (ON) | |
| Status LED (clear) faded power supply (OFF) | |
| Software designation | Vijeo Designer configuration software >= V6.1 |
| Memory description | 64 MB flash (EPROM) |
| Data backed up | 128 kB internal RAM (SRAM) |
| Downloadable protocols | Modbus Plus Schneider Electric Modicon |
| FIPWAY Schneider Electric Modicon |
| Modbus Schneider Electric Modicon | |
| Third party protocols Mitsubishi Melsec | |
| Third party protocols Omron Sysmac | |
| Third party protocols Rockwell Automation Allen-Bradley | |
| Third party protocols Siemens Simatic | |
| Uni-TE Schneider Electric Modicon | |
| Integrated connection type | COM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bps |
| COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps | |
| COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens | |
| MPI | |
| USB 2.0 type A | |
| USB 2.0 type mini B | |
| Product mounting | Flush mounting |
| Fixing mode | By 4 screw clamps |
| Front material | PPT |
| Enclosure material | PPT |
| Type of cooling | Natural convection |
| Width | 132 mm |
| Height | 106 mm |
| Depth | 42 mm |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed HMIGTO1300 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this HMIGTO1300 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty HMIGTO1300, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty HMIGTO1300 for credit when ordering from MRO Electric
Is the Magelis HMIGTO series ATEX Certified?
The Schneider Electric HMIGTO1300 is an industrial human-machine interface (HMI) device designed for use in various automation and control applications. Below is an overview of the HMIGTO1300, including its description, specifications, frequently asked questions (FAQ), and usage.
Overview:
The Schneider Electric HMIGTO1300 is a part of the Magelis GTU series of HMIs and is known for its robustness, versatility, and user-friendly interface. It is primarily used to interact with and monitor industrial processes and machinery. Here are some key points about the HMIGTO1300:
Description:
The HMIGTO1300 features a rugged design to withstand harsh industrial environments. It provides a touchscreen interface for operators and engineers to control and monitor equipment and processes. The device's design and interface make it suitable for various industries, including manufacturing, energy, and utilities.
Specifications:
Here are some of the technical specifications of the Schneider Electric HMIGTO1300:
FAQ:
Q1. What is the purpose of the Schneider Electric HMIGTO1300?
A1. The HMIGTO1300 is used as a human-machine interface (HMI) device to control and monitor industrial processes and machinery.
Q2. Can I expand the RAM and storage capacity of the HMIGTO1300?
A2. Yes, the device supports RAM expansion up to 8 GB and has an SSD slot for additional storage.
Q3. What types of industries is this HMI suitable for?
A3. The HMIGTO1300 is suitable for a wide range of industries, including manufacturing, energy, utilities, and more, where industrial automation and control are required.
Q4. Is the HMIGTO1300 resistant to harsh environments?
A4. Yes, it has an IP66 rating, making it dust-tight and capable of withstanding water splashes, making it suitable for harsh industrial settings.
Usage:
The Schneider Electric HMIGTO1300 is used in various industrial applications to provide operators and engineers with a user-friendly interface to control, monitor, and troubleshoot equipment and processes. It allows for real-time data visualization, alarm management, and data logging, making it an essential tool for improving productivity and efficiency in industrial settings.
Key usage scenarios include:
Machine Control: Operators can use the HMIGTO1300 to control and adjust machine settings, start/stop processes, and respond to alarms and alerts.
Process Monitoring: Engineers can monitor critical parameters, such as temperature, pressure, and flow rates, to ensure smooth and efficient operation.
Data Visualization: Real-time data visualization helps operators and managers make informed decisions and optimize processes.
Troubleshooting: The HMI provides diagnostic tools and alarm management features to quickly identify and address issues.
Remote Access: Some models of the HMIGTO1300 support remote access, allowing authorized personnel to monitor and control processes from a distance.
In summary, the Schneider Electric HMIGTO1300 is a versatile industrial HMI device that plays a crucial role in enhancing automation and control in various industries. Its robust design, advanced features, and user-friendly interface make it a valuable tool for improving efficiency and productivity in industrial settings.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like HMIGTO1300, take a look at more from our HMIs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our HMIGTO1300 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
