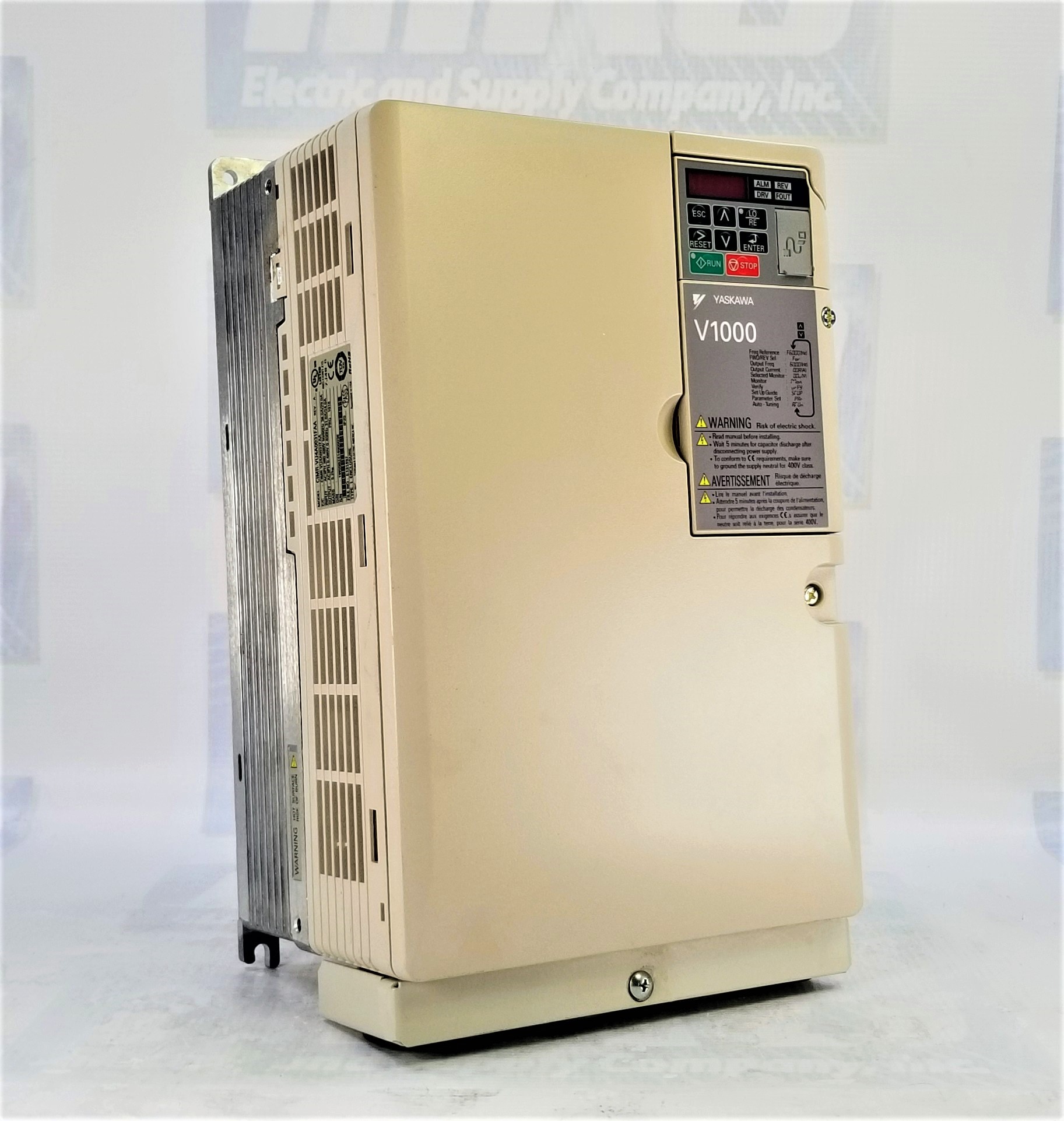

Yaskawa CIMR-VU4A0031FAA

Unveiling the CIMR-VU4A0031FAA: A Yaskawa AC Drive

The CIMR-VU4A0031FAA AC Drive, manufactured by Yaskawa, stands as a pinnacle in motor control technology, boasting robust features tailored for industrial applications. As an integral component in machinery and automation, this drive exemplifies Yaskawa's commitment to efficiency, reliability, and precision.

Specifications

At its core, the CIMR-VU4A0031FAA is designed to handle demanding power requirements with finesse. Its input phase configuration of 3 Phase ensures compatibility with a wide array of industrial setups, facilitating seamless integration into existing systems. With a constant torque rating of 15 hp and a variable torque rating of 20 hp, this drive exhibits exceptional power delivery capabilities, catering to diverse operational needs.

Performance

The drive's current ratings further underscore its prowess, with 25.8 A for constant torque applications and 31 A for variable torque scenarios. Such specifications empower the CIMR-VU4A0031FAA to tackle a spectrum of tasks with precision and reliability, ensuring optimal performance even under demanding conditions.

Features

One notable feature of this AC Drive is its versatile braking system, encompassing both DC Injection and Dynamic Braking Transistor functionalities. This dual braking mechanism not only enhances safety but also ensures swift and controlled deceleration, contributing to the longevity of machinery and the safety of personnel.

Application

While some applications may require closed-loop control for enhanced precision, the CIMR-VU4A0031FAA offers robust performance even in open-loop configurations. Its Open Loop Vector control, augmented by sensorless vector technology, delivers precise motor control without the need for additional feedback devices, simplifying installation and maintenance.

Despite its formidable capabilities, the CIMR-VU4A0031FAA remains compact and lightweight, weighing in at a mere 13.6 lbs (net) and 13.7 lbs (gross). Such a design enables easy mounting on panels, optimizing space utilization while maintaining accessibility for maintenance and servicing.

Voltage and Frequency Range

The drive's wide input voltage range of 380-480 VAC ensures compatibility with various power systems, offering flexibility in deployment across different regions and industries. Additionally, its maximum frequency of 400 Hz expands the range of compatible motors, catering to specialized applications that demand high-speed operation.

In environments where regenerative braking is essential for energy efficiency, the CIMR-VU4A0031FAA offers optional AC line regenerative capabilities, further enhancing its appeal in energy-conscious industries.

One of the most notable aspects of the CIMR-VU4A0031FAA is its intuitive operator controls, which are built directly into the drive. This streamlined interface simplifies configuration and monitoring, empowering operators to optimize performance effortlessly.

FAQ

What distinguishes the CIMR-VU4A0031FAA from other AC drives on the market?

The CIMR-VU4A0031FAA boasts superior performance, reliability, and versatility, making it an ideal choice for various industrial applications. Its advanced features, robust construction, and innovative design set it apart from the competition.

Does the CIMR-VU4A0031FAA support closed-loop control?

No, this AC drive operates in open-loop mode, utilizing sensorless vector technology for precise motor control without requiring external feedback devices.

What is the maximum frequency supported by the CIMR-VU4A0031FAA?

The CIMR-VU4A0031FAA can handle frequencies up to 400 Hz, enabling it to adapt to a wide range of operational requirements.

Can the CIMR-VU4A0031FAA be used for dynamic braking?

Yes, the CIMR-VU4A0031FAA comes equipped with dynamic braking capabilities, including DC injection and a dynamic braking transistor, facilitating efficient deceleration of motors.

Is the CIMR-VU4A0031FAA suitable for constant torque and variable torque applications?

Absolutely, with a constant torque rating of 15 hp and a variable torque rating of 20 hp, the CIMR-VU4A0031FAA excels in both constant and variable torque scenarios, providing optimal performance across diverse industrial settings.

What is the net weight of the CIMR-VU4A0031FAA?

The CIMR-VU4A0031FAA weighs 13.6 lbs, ensuring ease of installation and handling during setup procedures.

Does the CIMR-VU4A0031FAA come with built-in operator controls?

Yes, the CIMR-VU4A0031FAA features built-in operator controls, simplifying operation and enhancing user convenience without the need for additional external interfaces.

Is the CIMR-VU4A0031FAA compatible with a wide range of input voltages?

The CIMR-VU4A0031FAA supports input voltages ranging from 380 to 480 VAC, accommodating various power supply configurations commonly found in industrial environments.
