Yaskawa CIMR-VU4A0011BAA

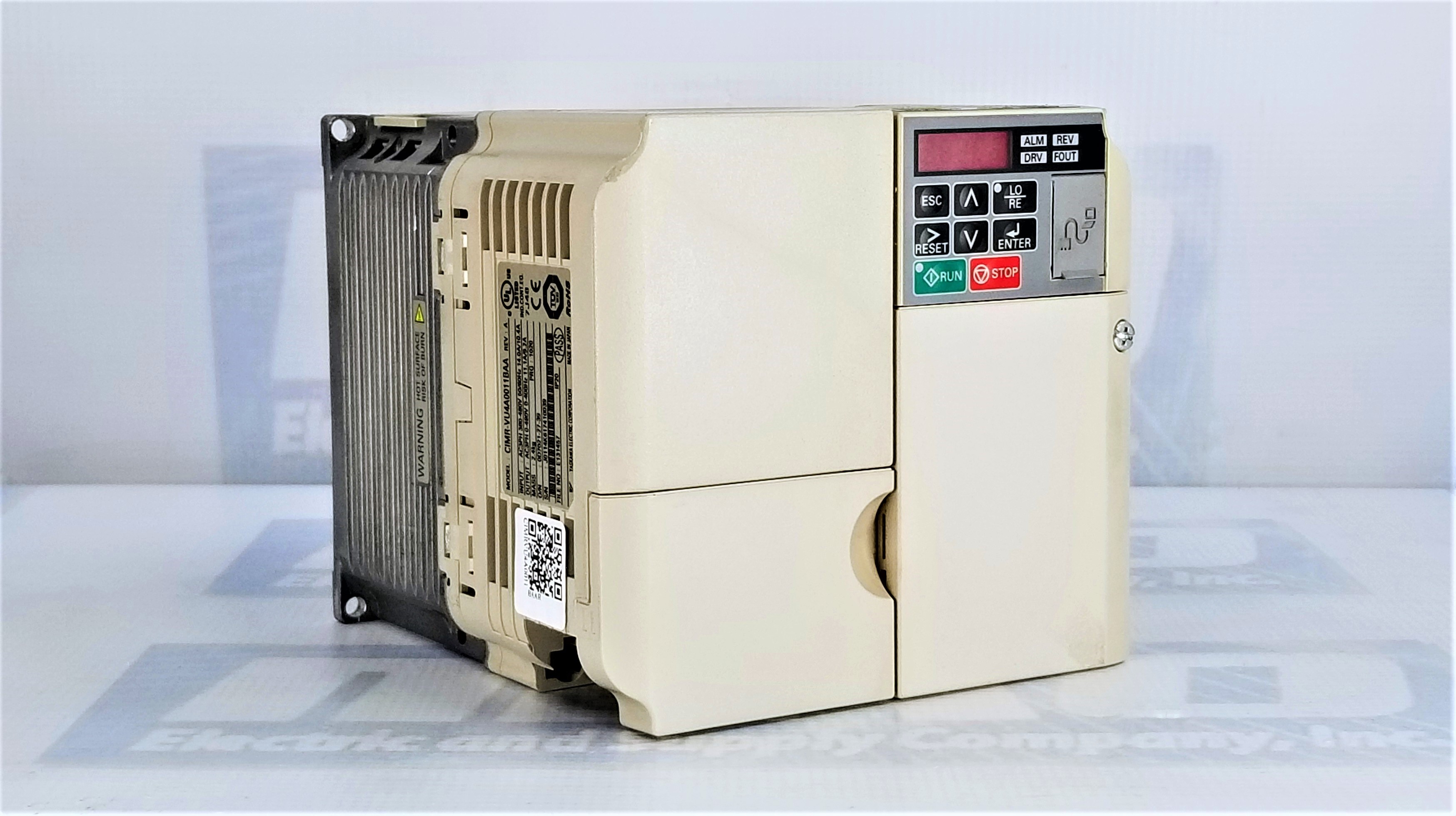

Yaskawa CIMRVU4A0011BAA Overview

The Yaskawa CIMRVU4A0011BAA V1000 is a NEMA 1 Current Vector Microdrive designed to deliver powerful performance in a compact and user-friendly package. This microdrive offers a wide range of features that make it a versatile and efficient choice for various industrial applications, ranging from 1/8 to 25 HP. Let's explore the key features and specifications of the Yaskawa CIMRVU4A0011BAA V1000.

Compact Size and Current Vector Control

One of the standout features of the V1000 is its small footprint, which is up to 30% smaller than competing drives. Despite its size, it packs the capability of current vector control, providing precise motor control in open-loop operation. This control method ensures smooth and efficient motor performance, suitable for various motor types, including induction motors (IM) and permanent magnet motors (PM).

RoHS Compliance and On-line Tuning

The V1000 complies with the Restriction of Hazardous Substances (RoHS) directive, making it an environmentally friendly choice. Additionally, it offers online tuning capabilities, which enables users to fine-tune drive parameters without stopping the motor, simplifying the setup and optimization process.

High Starting Torque and Side-by-Side Installation

The V1000 boasts a starting torque of 200% at 0.5 Hz, ensuring smooth motor starts and reliable performance even at low frequencies. Moreover, its patented hybrid heatsink design allows side-by-side installation, optimizing space utilization and simplifying the integration into existing setups.

Function Block Diagram Programming

The V1000 can be programmed using DriveWorksEZ™ and the Function Block Diagram (FBD) method. This feature streamlines the programming process, allowing users to design custom control sequences and logic to meet their specific application requirements.

Enhanced Safety and Vibration Resistance

The V1000 is designed with safety in mind, complying with EN954-1 Safety Cat. 3 and Stop Cat. 0 standards. It also exhibits increased vibration resistance, withstanding vibrations from 20 Hz to 50 Hz (0.65G), ensuring reliability in demanding industrial environments.

Super-Fast Scan Cycle and Dual CPU

With a scan cycle of just 2 ms and a dual CPU design, the V1000 can process commands and execute control algorithms swiftly, contributing to the overall responsiveness and efficiency of the drive.

Modbus Communication and Common Programming

The V1000 supports Modbus communication, facilitating integration with various industrial control systems. Moreover, it shares common programming with other Yaskawa drives, simplifying the adoption and maintenance of multiple drives within a system.

Long Lifespan and Easy Maintenance

The V1000 is engineered for durability and longevity, boasting a Mean Time Between Failures (MTBF) of 28 years. It also features a pre-maintenance function, enabling preventative maintenance to keep the drive in optimal condition. Additionally, the cooling fan can be replaced without the need for tools, enhancing ease of maintenance.

Various Models and Certifications

The V1000 is available in different models with varying power ratings, ranging from 1/8 to 25 HP. It holds global certifications, including CE, UL, cUL, TUV, and RoHS compliance, ensuring that it meets international safety and quality standards.

FAQs for Yaskawa CIMR-VU4A0011BAA AC Drive

What is the Yaskawa CIMR-VU4A0011BAA used for?

The Yaskawa CIMR-VU4A0011BAA is an AC drive from the V1000 series. It is designed to control the speed of three-phase AC motors in various industrial applications, providing energy-efficient motor control and improved performance.

What is the power rating of this AC drive?

The Yaskawa CIMR-VU4A0011BAA has a nominal power rating of 7.5 HP for normal-duty operations and 5 HP for heavy-duty applications.

What is the rated input voltage for this model?

This AC drive operates on a three-phase input voltage of 400 V. It is specifically built for industrial applications that require reliable motor control in medium voltage ranges.

What is the overload capacity of the Yaskawa CIMR-VU4A0011BAA?

The drive can handle a 150% overload for up to 60 seconds for heavy-duty applications. In normal duty mode, it supports a 120% overload capacity for the same duration, offering enhanced motor protection in demanding situations.

What are the control methods available with this drive?

The Yaskawa CIMR-VU4A0011BAA provides simple closed-loop speed control, allowing precise and reliable motor speed regulation, essential for various industrial applications.

What protection rating does the Yaskawa CIMR-VU4A0011BAA have?

This AC drive is built with an IP20/NEMA 1 protection rating, indicating that it is protected against dust ingress and minor contact, making it suitable for most indoor environments.

What is the output frequency range of the CIMR-VU4A0011BAA?

The drive offers an output frequency range from 0 to 400 Hz, enabling it to cover a broad spectrum of motor speed requirements for various industrial tasks.

Does the drive come with a braking resistor?

Yes, the Yaskawa CIMR-VU4A0011BAA comes equipped with a standard braking resistor. This feature enhances braking performance, providing an increased torque range of 20% to 40% with an intelligent high-slip braking function.

What kind of keypad operator does this AC drive feature?

The standard configuration includes an LED 5-digit display for easy monitoring. An optional multi-lingual, full-text remote LCD is also available for users seeking enhanced display capabilities and language support.

What warranty does MRO Electric and Supply offer for this AC drive?

MRO Electric and Supply offers a two-year warranty on the Yaskawa CIMR-VU4A0011BAA AC drive. This warranty covers defects or malfunctions, providing customers with reliable support and peace of mind.

What series does the Yaskawa CIMR-VU4A0011BAA belong to?

This AC drive is part of Yaskawa’s V1000 series, known for its high efficiency, reliability, and versatile motor control capabilities.

What braking torque does the Yaskawa CIMR-VU4A0011BAA provide?

The AC drive offers a 20% to 40% increase in braking torque when utilizing the intelligent high-slip braking function. This allows for more efficient motor deceleration in heavy-duty applications.

Yaskawa products are manufactured in Japan and are designed for Advanced manufacturing, milling, and factory automation usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Schneider Electric and KUKA.
