Yaskawa CIMR-VU4A0009FAA

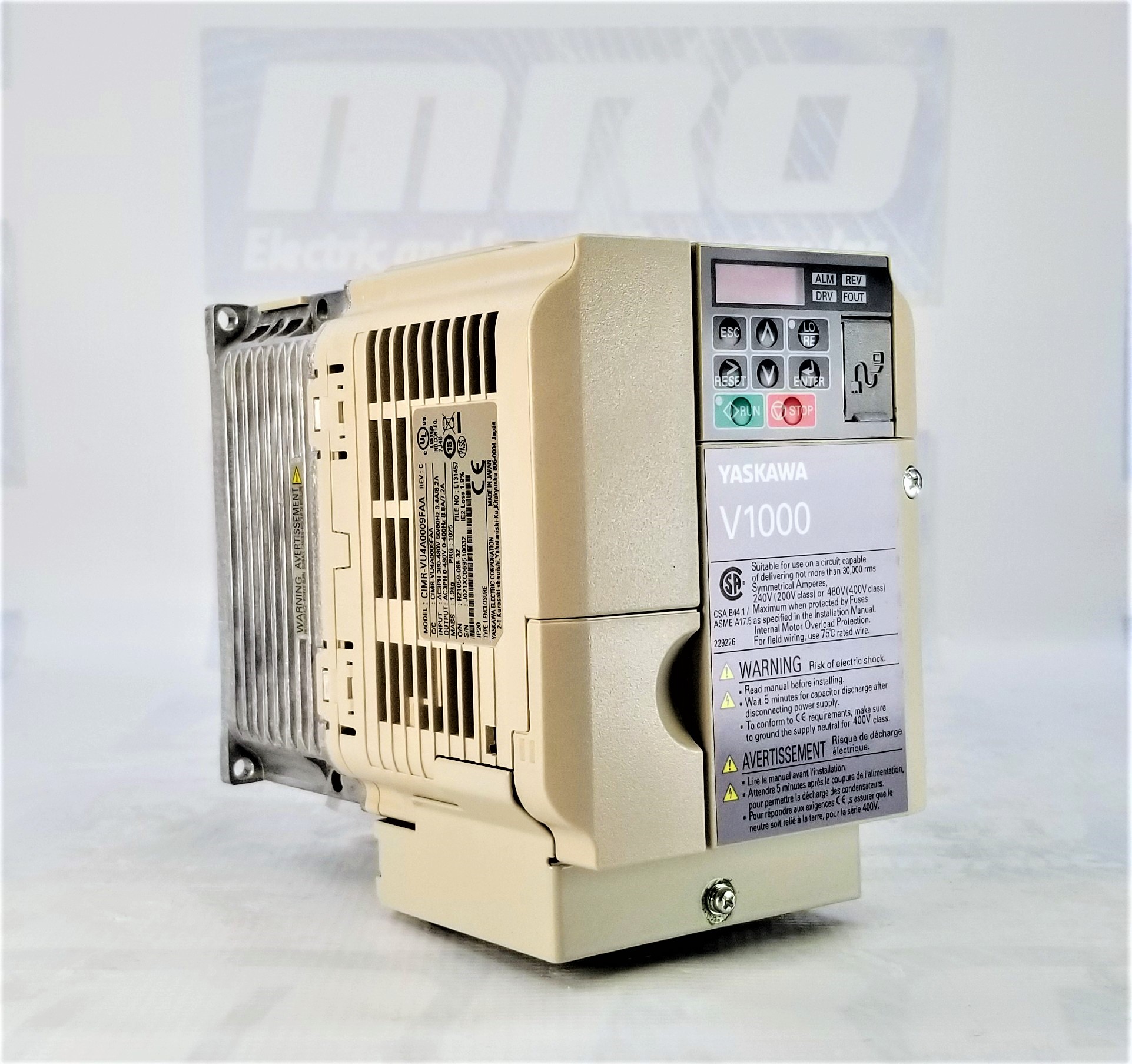

Yaskawa CIMR-VU4A0009FAA V1000 AC Drive: An Overview

The Yaskawa CIMR-VU4A0009FAA V1000 AC Drive represents a sophisticated and versatile solution for various industrial and commercial applications. Engineered by Yaskawa, a renowned motion control and automation technology name, this drive is designed to deliver reliable performance in demanding environments. The model CIMR-VU4A0009FAA is specifically crafted to meet the needs of systems requiring precise control of AC motors, offering both constant and variable torque capabilities.

High-Performance Specifications

The CIMR-VU4A0009FAA operates on a three-phase input with a voltage range of 380-480V, making it suitable for various industrial settings where three-phase power is standard. This drive supports a constant torque output of 4 horsepower (Hp) and a variable torque output of 5 horsepower, providing flexibility for different load requirements. With an input current of 7.2 amperes at constant and 8.8 amperes at variable torque, this drive ensures efficient operation while accommodating various motor specifications.

Robust Design and Mounting

Designed for panel mounting, the CIMR-VU4A0009FAA features a compact yet robust enclosure that measures 5.89 inches in height, 4.25 inches in width, and 6.06 inches in depth. This compact design allows for easy integration into existing control panels or new installations where space is limited. The drive's NEMA 1 protection rating indicates its suitability for indoor use, where it is protected from dust and incidental contact but not from water or extreme environmental conditions.

Advanced Braking and Control Features

One of the standout features of the CIMR-VU4A0009FAA is its DC injection braking capability. This braking type is particularly beneficial for applications requiring quick stops and precise control of motor speed. By injecting a DC current into the motor windings, the drive provides efficient braking that helps reduce mechanical wear and enhance overall system performance.

Comprehensive Warranty and Support

When purchasing the Yaskawa CIMR-VU4A0009FAA from MRO Electric and Supply, customers benefit from a two-year warranty, underscoring the drive’s reliability and Yaskawa's commitment to quality. This warranty provides peace of mind and promptly addresses any potential issues. Additionally, MRO Electric and Supply offers free shipping, adding further value to the purchase and ensuring a smooth acquisition process.

Ideal Applications

The CIMR-VU4A0009FAA is well-suited for various applications where precise motor control is essential. These include HVAC systems, conveyors, pumps, and other industrial machinery that demand high performance and reliability. Its ability to handle constant and variable torque applications makes it versatile enough to adapt to different operational requirements.

Frequently Asked Questions (FAQ) about Yaskawa CIMR-VU4A0009FAA V1000 AC Drive

What is the Yaskawa CIMR-VU4A0009FAA V1000 AC Drive used for?

The Yaskawa CIMR-VU4A0009FAA V1000 AC Drive controls the speed and torque of AC motors in various industrial and commercial applications. It is suitable for systems that require precise motor control and efficient performance, such as HVAC systems, conveyors, pumps, and other machinery.

What are the key specifications of the CIMR-VU4A0009FAA drive?

The CIMR-VU4A0009FAA drive operates on a three-phase input with a voltage range of 380-480V. It supports a constant torque output of 4 horsepower (Hp) and a variable torque output of 5 horsepower. The drive has an input current of 7.2A at continuous torque and 8.8A at variable torque. It features DC injection braking and is designed for panel mounting with a height of 5.89 inches, width of 4.25 inches, and depth of 6.06 inches.

What type of braking does the CIMR-VU4A0009FAA use?

The CIMR-VU4A0009FAA utilizes DC injection braking. This method injects a direct current into the motor windings for efficient braking. It benefits applications requiring rapid stops and precise motor speed control, reducing mechanical wear and enhancing system performance.

What is the protection rating of the CIMR-VU4A0009FAA?

The CIMR-VU4A0009FAA has a NEMA 1 protection rating. It is designed for indoor use and protects against dust and incidental contact with electrical components. However, it is unsuitable for outdoor use or environments where it may be exposed to water or extreme conditions.

How is the CIMR-VU4A0009FAA mounted?

The CIMR-VU4A0009FAA is designed for panel mounting. Its compact dimensions make it suitable for installation in control panels or enclosures where space is limited. This mounting style facilitates easy integration into existing systems or new installations.

What warranty does MRO Electric and Supply offer for this drive?

MRO Electric and Supply offers a two-year warranty on the Yaskawa CIMR-VU4A0009FAA V1000 AC Drive. This warranty provides coverage against defects and ensures that any issues encountered during the warranty period will be addressed.

Is shipping included with the purchase of the CIMR-VU4A0009FAA drive?

MRO Electric and Supply provides free shipping when purchasing the CIMR-VU4A0009FAA drive. This offers additional value and convenience for customers by covering the cost of shipping and ensuring a smooth acquisition process.

What are the advantages of using the CIMR-VU4A0009FAA V1000 AC Drive?

The CIMR-VU4A0009FAA offers several advantages, including its ability to provide precise motor control with both constant and variable torque capabilities. Its DC injection braking feature enhances system performance by enabling quick stops and reducing mechanical wear. Its compact design and panel-mounting capability make it versatile and suitable for various applications.

Can the CIMR-VU4A0009FAA be used in outdoor environments?

No, the CIMR-VU4A0009FAA has a NEMA 1 protection rating, which means it is unsuitable for outdoor use or environments with exposure to water. It is intended for indoor applications where it will be protected from extreme environmental conditions.

How do I determine if the CIMR-VU4A0009FAA is suitable for my application?

To determine if the CIMR-VU4A0009FAA is suitable for your application, consider the motor’s power requirements and the drive’s torque capabilities. Ensure the drive’s voltage and current ratings match your system's specifications. For detailed guidance, consult the product’s datasheet or contact a technical expert or Yaskawa representative for assistance matching the drive to your specific needs.

Yaskawa products are manufactured in Japan and are designed for Advanced manufacturing, milling, and factory automation usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Schneider Electric and KUKA.
