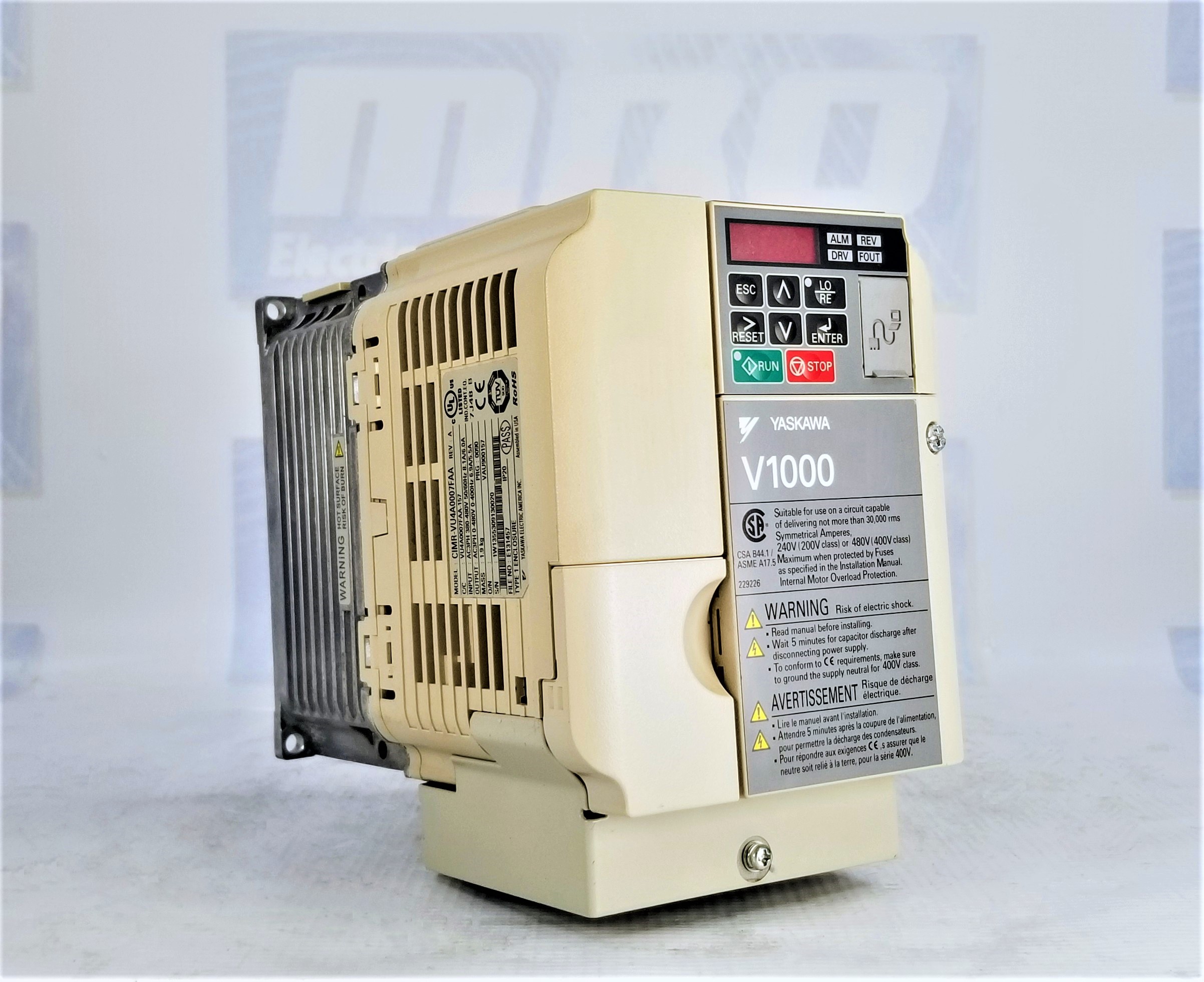

Yaskawa CIMR-VU4A0007FAA

Yaskawa CIMR-VU4A0007FAA V1000 AC Drive: Detailed Description

The Yaskawa CIMR-VU4A0007FAA is a high-performance AC Drive designed for industrial applications that require precise motor control. This model belongs to Yaskawa's V1000 series, known for its reliability, compact design, and user-friendly interface. The drive offers a balance of power, flexibility, and efficiency, making it a suitable choice for various motor control tasks.

Category and Series

The CIMR-VU4A0007FAA falls under the category of standard drives, specifically from the V1000 AC drive series, which is Yaskawa's flagship line for general-purpose motor control. These drives are designed to deliver consistent, high-performance operation in demanding environments while maintaining ease of installation and configuration. The V1000 series is known for its tiny footprint, making it ideal for space-constrained applications without compromising power or performance.

Rated Input and Output

This drive is rated for an input voltage of 380-480V, 3-phase, which is typical for industrial systems requiring robust power distribution. The rated output is 480V, which can handle an output current of 6.9/5.5 Amps. With a 3 HP output, the CIMR-VU4A0007FAA provides enough power for medium-sized motors, offering flexibility for various applications, including conveyors, fans, pumps, and other machinery.

Enclosure and Protection

The Yaskawa CIMR-VU4A0007FAA has a Type 1 enclosure, which offers essential protection against dust and debris, making it suitable for indoor environments. It also protects from contact with live electrical parts and from falling objects. The Type 1 enclosure is designed for general-purpose use, providing a cost-effective solution for standard industrial applications.

Advanced Features

This V1000 AC drive includes advanced features for enhanced performance. The drive is capable of vector control, allowing for precise torque and speed control, even at low speeds. It has built-in communication protocols and can easily integrate into larger control systems. The drive's auto-tuning feature adjusts its parameters based on the motor's characteristics, ensuring optimal efficiency and performance.

The CIMR-VU4A0007FAA also includes overload protection, which allows it to handle 150% of rated current for 60 seconds and 200% for 3 seconds. This provides the necessary headroom to handle sudden changes in load without risking damage to the system.

Energy Efficiency and Environmental Impact

Energy efficiency is a crucial advantage of the Yaskawa CIMR-VU4A0007FAA. Its ability to dynamically adjust power output to match the load's needs helps reduce overall energy consumption, making it a valuable asset for companies looking to optimize operational costs and reduce their environmental footprint.

Easy Integration and Maintenance

The V1000 series is designed for easy installation and maintenance. Its compact design allows it to be easily mounted in various configurations, saving valuable space in control cabinets. The user-friendly interface simplifies setup, and diagnostic tools help identify and resolve issues quickly, minimizing downtime.

FAQs for Yaskawa CIMR-VU4A0007FAA

What kind of motors can the CIMR-VU4A0007FAA drive control?

The CIMR-VU4A0007FAA can control a wide range of 3-phase induction motors and permanent magnet motors, making it versatile for many industrial applications such as conveyors, pumps, and fans.

Can the CIMR-VU4A0007FAA handle high-load conditions?

Yes, the CIMR-VU4A0007FAA has overload capabilities that allow it to handle 150% of its rated current for 60 seconds and 200% for 3 seconds, providing reliable performance during high-load conditions.

What is the enclosure type of the drive?

Answer: The CIMR-VU4A0007FAA comes with a Type 1 enclosure, which offers protection against dust and debris and makes it suitable for general indoor environments.

Does this drive support communication protocols for system integration?

Yes, the CIMR-VU4A0007FAA supports built-in communication protocols, making it easy to integrate into larger control systems for seamless operation.

What are this model's input and output voltage specifications?

The drive operates with an input voltage of 380-480V 3-phase and provides an output voltage of 480V for efficient motor control.

How does the drive contribute to energy savings?

The CIMR-VU4A0007FAA dynamically adjusts its power output to match load requirements, reducing energy consumption and helping to lower operational costs.

Is there an auto-tuning feature in this drive?

The auto-tuning feature optimizes drive parameters based on the motor's characteristics, ensuring optimal performance.

What kind of protection does the drive offer?

The drive includes overload protection and can handle up to 200% of rated current for 3 seconds, safeguarding the motor from potential damage during high loads.

What is the maximum output power of the drive?

The CIMR-VU4A0007FAA provides an output power of 3 HP, suitable for controlling medium-sized motors in industrial settings.

What is the ambient temperature range for operating this drive?

The drive can operate in ambient temperatures ranging from 0 to 55°C, allowing it to perform well in various environmental conditions.
