Yaskawa CIMR-VU2A0010FAA

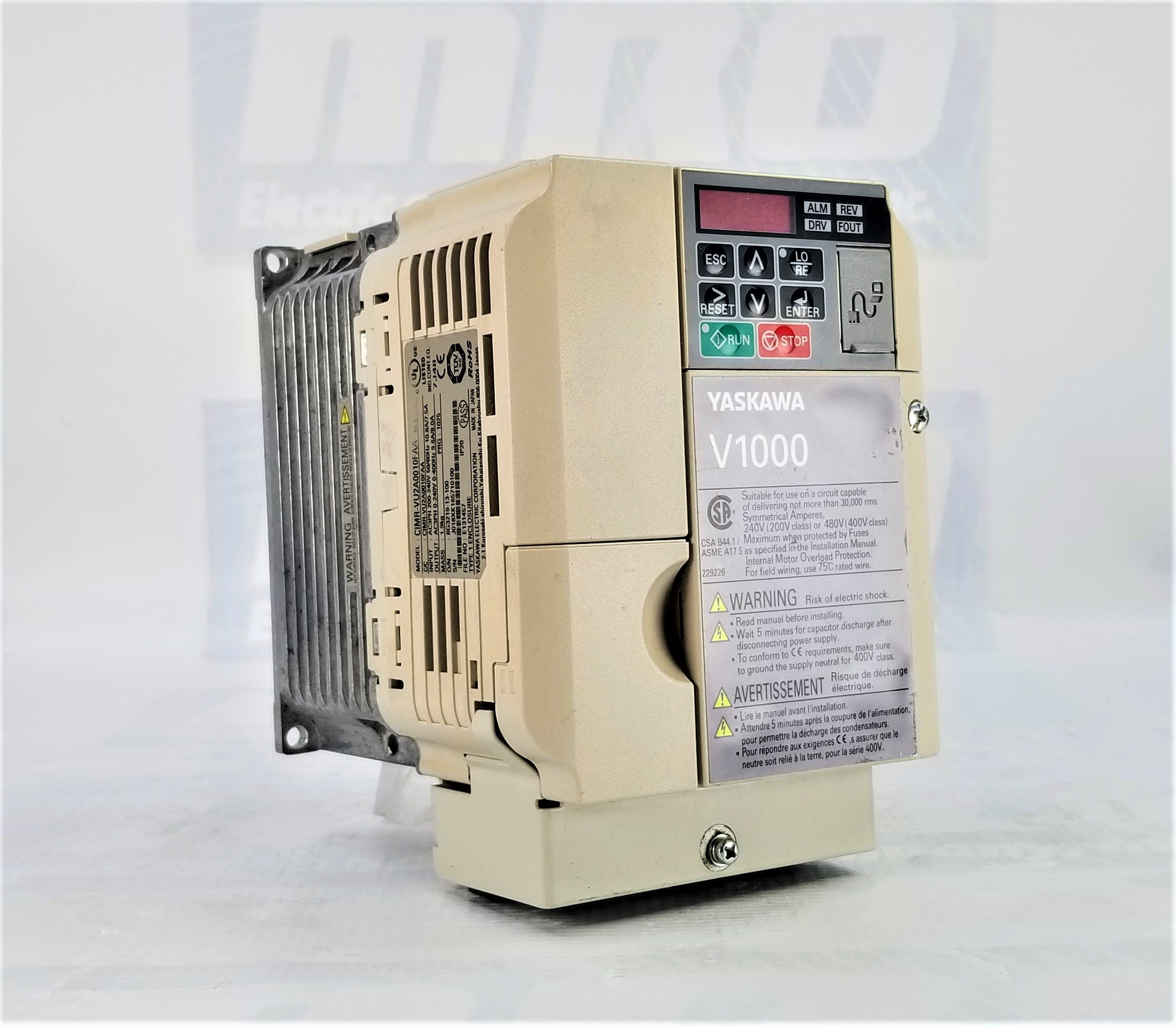

Yaskawa CIMR-VU2A0010FAA V1000 AC Drive: Comprehensive Description

The Yaskawa CIMR-VU2A0010FAA, part of the V1000 series, is a compact and highly efficient AC drive designed for various industrial applications. As a pivotal component in modern automation systems, this drive provides exceptional performance and versatility, meeting the demands of various motor control scenarios. Its robust design and advanced features make it an ideal choice for applications requiring reliable and precise motor control in both normal and heavy-duty conditions.

Key Specifications and Features

The Yaskawa CIMR-VU2A0010FAA operates with a rated input voltage of 200-240 V, accommodating standard voltage levels in industrial settings. It supports both normal and heavy-duty applications with distinct rated output currents. In normal duty, the drive provides a rated output current of 9.6 amps, suitable for motors with nominal horsepower (hp) ratings of 2 and 3. It delivers a rated output current of 8 amps for heavy-duty applications, specifically designed to handle motors with a nominal horsepower rating of 2 hp. This flexibility ensures that the drive can adapt to various load conditions and operational requirements.

Physical Dimensions and Mounting

The CIMR-VU2A0010FAA is engineered with a compact form factor, measuring 5.89 inches in height, 4.25 inches in width, and 5.08 inches in depth. This compact size allows easy installation in tight spaces, making it suitable for integration into control panels and machinery where space is limited. The drive's design ensures it can be mounted efficiently while providing adequate cooling and ventilation to maintain optimal performance.

Applications and Performance

Designed for versatility, the Yaskawa V1000 drive is well-suited for a variety of applications, including conveyors, fans, pumps, and other industrial machinery. Its advanced control capabilities and reliable performance make it an excellent choice for enhancing the efficiency and reliability of motor-driven systems. The drive's ability to handle routine and heavy-duty tasks ensures that it can meet the demands of diverse operational environments, providing consistent performance and durability.

Warranty and Shipping

The CIMR-VU2A0010FAA comes with a 2-year MRO Electric and Supply warranty, reflecting the manufacturer's confidence in the drive's quality and reliability. Additionally, the drive is available with free shipping, making it a cost-effective option for businesses looking to integrate high-quality motor control solutions into their operations.

Certification and Compliance

While specific certifications are not detailed in the provided information, the Yaskawa CIMR-VU2A0010FAA typically adheres to industry standards and regulations, ensuring compliance with relevant safety and performance criteria. Yaskawa's V1000 series drives are known for their robust construction and adherence to international standards, making them reliable for various industrial applications.

Frequently Asked Questions (FAQ) for Yaskawa CIMR-VU2A0010FAA V1000 AC Drive

Q1: What is the Yaskawa CIMR-VU2A0010FAA V1000 AC Drive used for?

A1: The Yaskawa CIMR-VU2A0010FAA V1000 AC Drive controls and regulates the speed, torque, and direction of AC motors in industrial applications. It is ideal for operating various machinery, such as conveyors, pumps, fans, and other motor-driven equipment, enhancing energy efficiency and ensuring precise motor control.

Q2: What is the difference between normal duty and heavy duty in this AC drive?

A2: The drive has different ratings for normal-duty and heavy-duty applications. In normal duty, it handles a rated output current of 9.6 amps and is suitable for motors with 2 to 3 horsepower. In heavy-duty applications, it delivers an output current of 8 amps, specifically for two horsepower motors. This differentiation allows the drive to adapt to varying load requirements and operational conditions.

Q3: What are the input voltage requirements for the CIMR-VU2A0010FAA?

A3: The Yaskawa CIMR-VU2A0010FAA V1000 AC Drive requires an input voltage of 200-240 V. It is designed to work with standard 3-phase power supplies commonly found in industrial environments.

Q4: How compact is the Yaskawa V1000 drive?

A4: The CIMR-VU2A0010FAA V1000 AC Drive has a compact form factor, measuring 5.89 inches in height, 4.25 inches in width, and 5.08 inches in depth. This small size makes it easy to install in tight spaces or within control panels where space is limited.

Q5: What type of cooling does the CIMR-VU2A0010FAA use?

A5: The Yaskawa CIMR-VU2A0010FAA uses natural convection cooling, supported by its compact design and efficient heat dissipation structure. This ensures reliable performance without requiring additional cooling fans or external cooling mechanisms.

Q6: Is there a warranty provided with this AC drive?

A6: Yes, the Yaskawa CIMR-VU2A0010FAA comes with a 2-year MRO Electric and Supply warranty.

Q7: Does the drive come with free shipping?

A7: Yes, the Yaskawa CIMR-VU2A0010FAA is available with free shipping, making it a cost-effective choice for businesses looking to implement or replace AC drives without additional shipping costs.

Q8: What are the benefits of using the Yaskawa V1000 drive for motor control?

A8: The Yaskawa V1000 drive offers several benefits, including improved energy efficiency, precise motor speed control, reduced mechanical stress on motors, and enhanced process control. Its compact size, adaptability to various loads, and robust design make it a versatile solution for different industrial applications.

Q9: Can the CIMR-VU2A0010FAA be used in harsh industrial environments?

A9: While the Yaskawa CIMR-VU2A0010FAA is designed for standard industrial environments, it is not explicitly rated for extreme conditions such as high moisture, dust, or explosive environments. Additional protective measures or enclosures may be required in harsh settings.

Q10: What certifications does the Yaskawa V1000 series comply with?

A10: The Yaskawa V1000 series, including the CIMR-VU2A0010FAA, typically complies with international safety and performance standards, such as UL, CE, and RoHS. These certifications ensure the drive meets stringent global safety, environmental, and operational standards.

The Yaskawa CIMRVU2A0010FAA is a versatile and powerful variable frequency drive (VFD) from the V1000 series. Designed to provide precise control over motor speed and improve energy efficiency, this particular model offers a wide range of features and specifications suitable for various industrial applications. These products are manufactured in Japan and are designed for Advanced manufacturing, milling, and factory automation usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Schneider Electric and KUKA.
