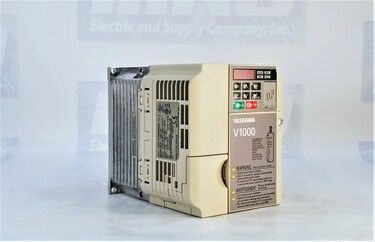

Yaskawa CIMR-VC4A0004BAA

Overview

The Yaskawa CIMRVC4A0004BAA AC Drive V1000 is a compact vector control drive that provides efficient and precise motor control in various industrial applications. With different models available for 200 V Class (both three-phase and single-phase input) and 400 V Class (three-phase input), it offers a power range from 0.1 to 18.5 kW, making it suitable for a wide range of motor sizes and loads.

Installation and Environmental Conditions

The CIMRVC4A0004BAA drive is designed for indoor installation in environments with ambient temperatures ranging from -10°C to +40°C for NEMA Type 1 installations and up to +50°C for open-chassis types. If the drive is installed inside an enclosure panel, it is essential to ensure adequate cooling with the use of cooling fans or air conditioners to keep the temperature within specified levels. It is crucial to avoid exposure to oil mist, dust, metal shavings, and other foreign materials, as well as direct sunlight and excessive vibration. The drive should be kept at altitudes of 1000 m or below.

Humidity and Storage

The drive can operate in environments with humidity levels up to 95% RH without condensation. For storage, it can withstand temperatures from -20°C to +60°C, ensuring its safe operation during transportation and before installation.

Main Circuit and Terminal Sizes

When wiring the main circuit, it is recommended to use the specified line filters, such as the EMC filters from Schaffner, to ensure proper operation and to maintain compliance with electromagnetic compatibility regulations. Proper tightening torque values should be adhered to during installation. The terminal sizes for each model are listed in the table, ensuring appropriate connections and secure electrical connections.

Vibration and Shock Resistance

The CIMRVC4A0004BAA drive can withstand vibration in the range of 10 to 55 Hz, with a vibration resistance of 9.8 m/s² in the 10-20 Hz range and 5.9 m/s² in the 20-55 Hz range. It also has shock resistance, ensuring reliable operation in environments with mechanical impacts.

Orientation and Cooling

To achieve maximum cooling efficiency, it is recommended to install the drive vertically. Proper cooling helps maintain the drive's performance and longevity during operation.

Power and Performance

The CIMRVC4A0004BAA AC Drive V1000 provides compact vector control, enabling precise control over motor speed and torque. With its power rating of 4.0 kW, it can handle various motor sizes and loads efficiently. The vector control technology ensures excellent motor performance and energy efficiency in diverse industrial applications.

Reliability and Safety

As a product of Yaskawa, a renowned company in the industrial automation industry, the CIMRVC4A0004BAA drive is known for its reliability and quality. With proper installation and maintenance, it can provide consistent and safe operation in industrial environments.

Compliance and Certifications

The drive is compliant with several international standards, including EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, and EN/IEC 61131-2, ensuring its safety and suitability for industrial use. The product is also certified with CE, Merchant Navy, EAC, RCM, UL, and CSA certifications.

Frequently Asked Questions (FAQs) for Yaskawa CIMR-VC4A0004BAA AC Drive

1. What is the Yaskawa CIMR-VC4A0004BAA AC Drive used for?

The Yaskawa CIMR-VC4A0004BAA is an AC drive that controls the speed, torque, and direction of three-phase AC motors. It is used in various industrial applications to improve motor efficiency and performance, such as in conveyors, fans, pumps, and other automated equipment.

2. What is the power rating of this AC drive?

The Yaskawa CIMR-VC4A0004BAA AC drive has a power rating of 1.5 kW, making it suitable for controlling motors of moderate power requirements.

3. What type of power supply is required for the CIMR-VC4A0004BAA?

This AC drive requires a 400 VAC power supply and is designed to operate with a three-phase power input.

4. What is the current rating for this AC drive?

The current rating for the Yaskawa CIMR-VC4A0004BAA is between 3.4 and 4.1 amps, depending on the specific operating conditions.

5. Can this drive operate in different temperature conditions?

Yes, the Yaskawa CIMR-VC4A0004BAA is designed to operate in a wide range of ambient temperatures, from -10 to +50 degrees Celsius. This makes it suitable for various industrial environments, including those with fluctuating temperatures.

6. What level of protection does the CIMR-VC4A0004BAA provide?

This AC drive has an IP20 protection rating, which protects it against solid objects larger than 12.5mm but not against liquids. It is classified as a "UL Open Type," indicating that it should be installed in a protected enclosure to avoid exposure to dust, moisture, and accidental contact.

7. Is there a warranty available for this product?

Yes, the Yaskawa CIMR-VC4A0004BAA comes with a 2-year MRO Electric and Supply warranty.

8. What are the main features of the Yaskawa V1000 series AC drives?

The V1000 series, including the CIMR-VC4A0004BAA, is known for its compact size, high performance, and energy efficiency. Key features include precise motor control, easy setup, flexible connectivity options, and built-in safety functions, making it ideal for various applications.

9. What are the advantages of using a three-phase AC drive like the CIMR-VC4A0004BAA?

Three-phase AC drives offer several benefits, including improved energy efficiency, reduced electrical noise, and smoother motor operation. They also provide better motor speed and torque control, leading to extended motor life and reduced maintenance costs.

10. Is there any built-in safety feature in this AC drive?

Yes, the Yaskawa CIMR-VC4A0004BAA is designed with multiple safety features, including overload protection, overvoltage protection, and overheating protection. These features help safeguard the drive and the motor from potential damage due to electrical faults or operational errors.

11. Is free shipping available for this AC drive?

MRO Electric and Supply offers free shipping for the Yaskawa CIMR-VC4A0004BAA, adding customer value and convenience.

12. How do I install the Yaskawa CIMR-VC4A0004BAA AC Drive?

Installation involves:

• Mounting the drive in a suitable enclosure.
• Connecting the input and output power cables.
• Configuring the drive parameters according to the motor specifications and application requirements.

A qualified technician should perform the installation to ensure compliance with local electrical codes and safety standards.

13. Can the Yaskawa CIMR-VC4A0004BAA be used with different types of motors?

Yes, this AC drive is compatible with most standard three-phase AC motors, including induction and permanent magnet motors. However, for optimal performance, it is important to ensure that the motor's specifications match the drive's output capabilities.

Yaskawa products are manufactured in Japan and are designed for Advanced manufacturing, milling, and factory automation usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Schneider Electric and KUKA.

Contact Us Today For More Information About Yaskawa Products

Check out the rest of our Yaskawa product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like CIMR-VC4A0004BAA, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our CIMR-VC4A0004BAA products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
