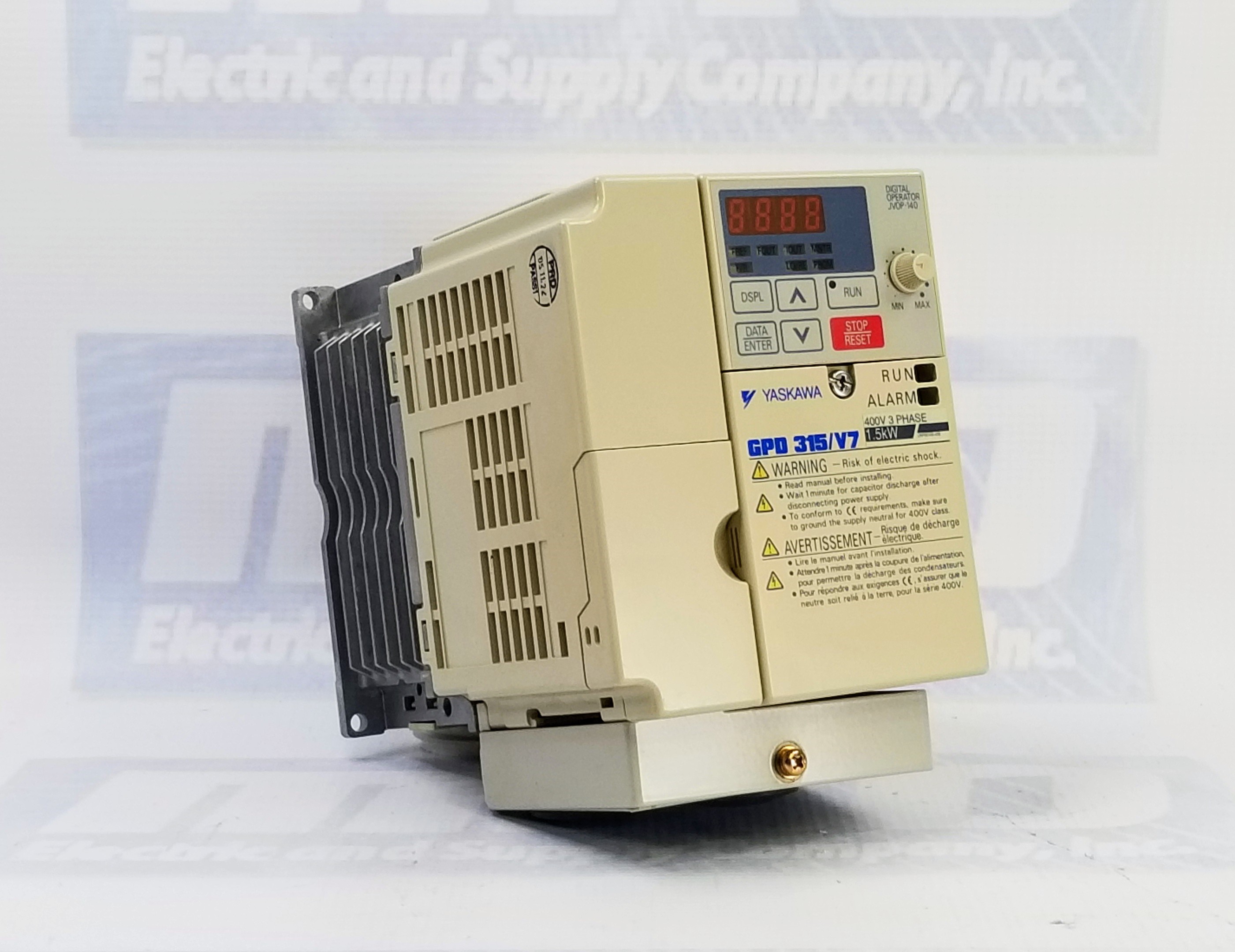

VS MINI DRIVE GPD 315/V7
Available
Free Shipping
2 Year warranty
| Part Number | CIMR-V7AM41P5 |
| Manufacturer | Yaskawa |
| Type | AC Drives |
| Model # | CIMRV7AM41P5 |
| Warranty | 2 Year |
| Range | GPD 315/V7 |
| Category | Inverter drive |
| Voltage | 400 V |
| Phase | 3 Phase |
| Power rating | 1.5 kW |
| Input | AC 3 phase |
| Input V | 380-460 V |
| Frequency In | 50/60 Hz |
| Current rating in | 7.0 A |
| Output | AC 3 Phase |
| Output V | 0-460 V |
| Frequency Out | 0-400 Hz |
| Current rating out | 4.8 A |
| Protection | IP20 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed CIMR-V7AM41P5 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this CIMR-V7AM41P5 we also repair a wide range of other Yaskawa products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty CIMR-V7AM41P5, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty CIMR-V7AM41P5 for credit when ordering from MRO Electric
The Yaskawa CIMRV7AM41P5 is a versatile and robust inverter drive designed to deliver precision control and efficient performance in industrial applications. With a focus on flexibility and ease of use, this drive caters to the demanding requirements of 3-phase systems with an input voltage range of 380-460VAC and a frequency of 50/60Hz.
Operating at 2 HP with a current rating of 4.8 Amps, the drive offers a broad output frequency range from 10 to 400Hz, allowing for seamless integration into various motor control applications. Its IP20 rating ensures a solid level of protection against solid objects, emphasizing its suitability for indoor use. Out of the box, the drive is configured for 2-Wire external reference control. However, for those needing a 3-Wire application, reprogramming parameters n001, n003, and n004 through the Digital Operator is necessary. This straightforward adjustment enables adaptability to diverse control setups.
Installation considerations play a crucial role in optimizing the performance and lifespan of the drive. When employing a cable gland for water and dust-tight applications (NEMA type 4X/12), careful attention to detail is vital. Utilizing multi-core cable prevents gaps that may lead to leakage, and sealing the cable gland with the recommended gasket is imperative. To safeguard the drive, it's paramount to install it in a location shielded from extreme conditions. This includes protection from temperature extremes (14 to 122°F or -10 to +50°C), moisture, oil sprays, salt spray, direct sunlight, corrosive gases, dust, vibration, and other environmental factors. The drive should not be used outdoors and should be shielded from combustibles, magnetic noise, high humidity, and radioactive substances.
During mounting, lifting the drive by its base is emphasized to prevent damage. The drive must be affixed to a flat, non-flammable vertical surface using four mounting screws, ensuring a minimum 3.9-inch clearance above and below for proper air circulation over the heat sink fins. Adequate clearance on each side is also required.
Wiring considerations are paramount for safety and optimal functionality. Using 600V vinyl-sheathed wire or equivalent, adhering to local electrical codes, and avoiding routing power wiring near sensitive equipment are key points. The drive's output terminals must never be connected to the AC main power, and precautions such as avoiding short circuits and proper grounding are emphasized. Motor connections are to be made with care, including a separate ground wire securely attached to both the motor frame and the drive's ground terminal. The use of armored or shielded cables requires solid connections to both the motor frame and the drive's ground terminal.
With motor lead length not exceeding 164 feet (50 meters) and separate conduits for power and motor wiring, the drive ensures efficient and safe operation. Compliance with UL-listed connectors, proper crimp tools, and wire sizing suitable for Class I circuits round out the meticulous guidelines for a successful installation.
What is the primary function of the Yaskawa CIMR-V7AM41P5?
The Yaskawa CIMR-V7AM41P5 is an inverter drive designed to precisely control motor speed and torque in industrial applications. It is part of the GPD 315/V7 series, making it suitable for tasks requiring variable speed control, such as pumps, fans, conveyors, and general machinery.
What power rating does this AC drive support?
The CIMR-V7AM41P5 supports a power rating of 1.5 kW, making it suitable for small to medium-sized motor applications.
What input voltage does this drive require?
This drive operates on an input voltage range of 380 to 460 V AC, 3-phase, at a frequency of 50/60 Hz.
What are the current ratings for this drive?
The input current rating is 7.0 A, while the output current rating is 4.8 A, ensuring efficient energy transfer and reliable motor control performance.
What is the output frequency range of the CIMR-V7AM41P5?
This AC drive's output frequency range is 0 to 400 Hz, allowing for fine-tuned control of motor speed across a wide range of applications.
What type of protection does the drive offer?
The CIMR-V7AM41P5 offers IP20-rated protection, which means it is protected against solid objects greater than 12.5 mm in diameter. This makes it suitable for industrial environments where moderate dust and debris are present.
Does this drive support 3-phase output?
Yes, the CIMR-V7AM41P5 provides a 3-phase output, which ensures balanced power distribution and efficient motor control in industrial systems.
What warranty is available for the Yaskawa CIMR-V7AM41P5?
This drive comes with a two-year warranty from Yaskawa, covering any defects in materials or workmanship, ensuring reliable performance and customer support.
Is this drive suitable for automation systems?
Yes, the Yaskawa CIMR-V7AM41P5 is ideal for use in industrial automation systems, especially for applications that require motors to be controlled at variable speeds.
What is the IP20 protection rating suitable for?
The IP20 protection rating means the drive is well-suited for installation in controlled environments. It offers protection from solid objects but requires additional enclosures for areas with water or higher levels of dust exposure.
