Yaskawa CIMR-V7AM22P2

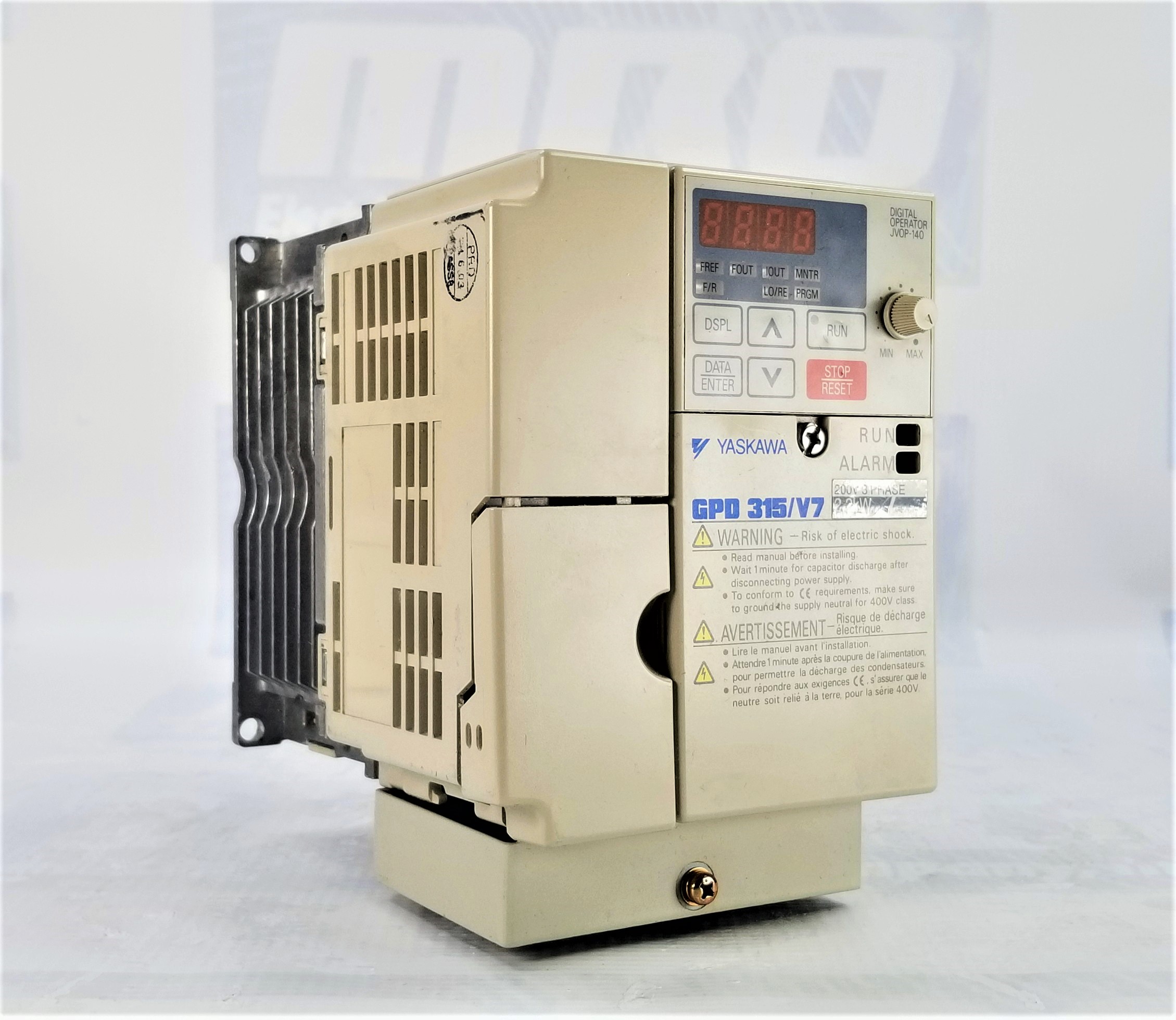

Yaskawa CIMRV7AM22P2 Varispeed V7

The Yaskawa CIMRV7AM22P2 Varispeed V7 stands as a powerful Variable Speed Drive (VSD), designed for precise and flexible control in industrial applications. With an input of AC 3Phase and a voltage rating ranging from 200-230 V, this V7 model ensures robust performance across diverse operational scenarios.

Input and Output Specifications:

The Varispeed V7 operates with a current rating of 15.1 A, providing ample power to drive industrial machinery. The AC 3Phase output delivers a voltage range of 0-230 V and a frequency range of 0-400 Hz, catering to a wide spectrum of motor-driven systems. The device boasts an IP20 protection rating, safeguarding it against dust and other environmental factors.

Operating Modes:

The V7 offers four distinct operating modes, providing flexibility in control:

1. Run Command from Digital Operator: Allows control via a digital operator, using either a potentiometer or digital settings.
2. Run Command from Control Circuit Terminals: Enables control through the connection of external control circuit terminals.
3. Run Command from MEMOBUS Communications: Facilitates control through MEMOBUS communication protocols.
4. Run Command from Communication Card (Optional): Integrates the option for external communication cards, expanding communication capabilities.

Setup and Operation:

Before shipping, the Varispeed V7 is configured to receive the Run Command and frequency reference from the Digital Operator. The setup involves constants, such as Run Command Selection (n003) and Frequency Reference Selection (n004), allowing users to customize the control inputs according to their specific requirements.

Operation Steps:

1. Power Supply Activation: Turn ON the power supply to initiate operation.
2. Run Command Selection: Set constant n004 to 1 for Frequency Reference 1.
3. Acceleration and Deceleration Times: Configure acceleration (n019) and deceleration (n020) times for precise control.
4. Direction Selection: Choose forward or reverse run using the designated keys.
5. Reference Setting: Set the reference speed using the dedicated keys.
6. Start and Stop: Initiate the motor movement by pressing the appropriate keys and stop as needed.

Operation Check Points:

• Smooth Motor Rotation: Ensure the motor rotates smoothly without abnormal vibrations or noise.
• Direction Verification: Verify that the motor rotates in the correct direction as per the selected command.
• Smooth Acceleration/Deceleration: Confirm that acceleration and deceleration occur seamlessly.
• Current Consumption Matching Load: Monitor motor current consumption to match the load condition.

The Varispeed V7's status indicators and Digital Operator display provide real-time feedback, enhancing user confidence in the system's operation. With its precision, flexibility, and robust design, the Yaskawa CIMRV7AM22P2 Varispeed V7 is a reliable choice for variable speed control in industrial settings.

FAQ

Input and Output Specifications:

Q: What is the primary power input for the Varispeed V7?

A: The Varispeed V7 operates on AC 3Phase power input with a voltage rating of 200-230 V.

Q: What protection does the Varispeed V7 offer against environmental factors?

A: The Varispeed V7 is rated IP20, protecting against dust and other environmental elements.

Operating Modes:

Q: Can the Varispeed V7 be controlled through external communication cards?

A: Yes, the Varispeed V7 supports an optional communication card for external control.

Q: What are the available operating modes for the V7AZ?

A: The V7AZ offers four operating modes: Run Command from Digital Operator, Run Command from Control Circuit Terminals, Run Command from MEMOBUS Communications, and Run Command from Communication Card (Optional).

Setup and Operation:

Q: How is the Varispeed V7 configured for operation?

A: The Varispeed V7 is set up to receive the Run Command and frequency reference from the Digital Operator before shipping.

Q: Can users customize control inputs?

A: Yes, users can customize control inputs using constants such as Run Command Selection (n003) and Frequency Reference Selection (n004).

Operation Steps:

Q: What are the key steps for initiating motor movement with the Varispeed V7?

A: The key steps include activating the power supply, selecting the Run Command and Frequency Reference, configuring acceleration and deceleration times, choosing the direction, setting the reference speed, and starting and stopping as needed.

Operation Check Points:

Q: What are the critical checkpoints during operation?

A: Critical checkpoints include ensuring smooth motor rotation, verifying the correct direction, confirming smooth acceleration/deceleration, and monitoring motor current consumption to match the load condition.
